Kasda KW5515 User Manual

N300mbps openwrt
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.kasdanet.com
User Manual
Default Login Details
Login Address: www.mykasda.com
Login Password: Set up by users
Default Wi-Fi SSID: Kasda xxxx KW5515
(Printed on product label)
Default Wi-Fi Password: 12345678
Rev: 2.0.0
2017031001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KW5515 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kasda KW5515

  • Page 1 User Manual Default Login Details Login Address: www.mykasda.com Login Password: Set up by users Default Wi-Fi SSID: Kasda xxxx KW5515 (Printed on product label) Default Wi-Fi Password: 12345678 Rev: 2.0.0 www.kasdanet.com 2017031001...
  • Page 2 NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form. The manufacturer does not warrant that the hardware will work properly in all environments and applications, and makes no warranty or representation, either expressed or implied, with respect to the quality, performance, merchantability, or...

  • Page 3: Table Of Contents

    KW5515 LinkSmart Wireless Router User Manual Content 1 INTRODUCTION ..........................2 1.1 M ......................... 2 EATURES 1.1.1 Wireless........................... 2 1.1.2 Network Protocol and Features ....................2 1.1.3 Firewall ........................... 2 1.1.4 Management Support ......................3 1.1.5 Operating System Support ...................... 3 1.1.6 Environmental .........................

  • Page 4: Introduction

    KW5515 LinkSmart Wireless Router User Manual 1 Introduction Thank you for choosing our product. The KW5515 Wireless Router uses Open-WRT solution that fully complies with IEEE802.11b/g/n standards. It will provide your SOHO with convenient Internet. 1.1 Main Features 1.1.1 Wireless Fully IEEE 802.11b /g /n compatible...

  • Page 5: Management Support

    KW5515 LinkSmart Wireless Router User Manual 1.1.4 Management Support Web Based GUI Upgrade or update via FTP/HTTP Command Line Interface via Telnet Diagnostic Test Firmware upgrade-able for future feature enhancement 1.1.5 Operating System Support WINDOWS 98/SE/ME/2000/XP/VISTA/7/8/8.1/10 Macintosh LINUX 1.1.6 Environmental...

  • Page 6: Factory Defaults

    The device is configured with the following factory defaults: Login Address: www.mykasda.com Login password: Set up by users Subnet Mask: 255.255.255.0 Default Wi-Fi SSID: Kasda XXXX KW5515 Default Wi-Fi Password: 12345678 Warnings and Cautions Never use the product near water.

  • Page 7: Hardware Description

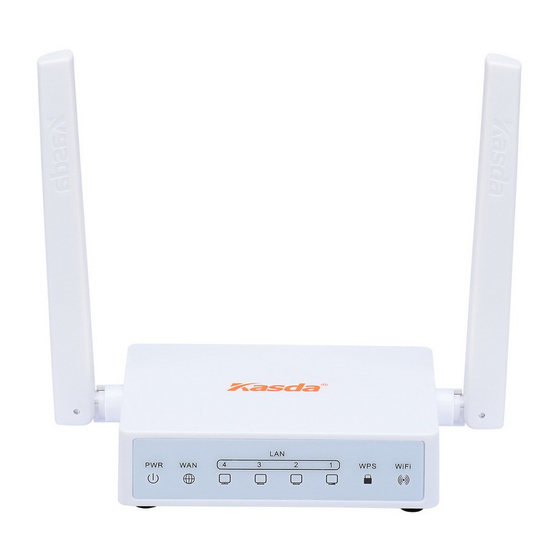

    KW5515 LinkSmart Wireless Router User Manual 2 Hardware Description Front Panel Color Function Off: Power Not Supplied Blue On: Power Supplied On: The WAN port has detected a link with an attached device Blinking: Data is being transmitted or received by the WAN port...
  • Page 8 KW5515 LinkSmart Wireless Router User Manual Rear panel Port Function Power Connect to the supplied power adapter Connect the device to your PC's Ethernet port, or to Ethernet1,2,3,4 the uplink port on your hub/switch, using a RJ-45 cable System reboot or reset to factory defaults...

  • Page 9: Hardware Installation

    KW5515 LinkSmart Wireless Router User Manual 3 Hardware Installation This chapter shows you how to connect Router. Meanwhile, it introduces the appropriate environment for the Router and installation instructions. 1. Using an Ethernet Cable to connect the WAN port of the ROUTER to a cable or modem.

  • Page 10: For Windows 8

    KW5515 LinkSmart Wireless Router User Manual 4.2 For Windows 8 1. Move your mouse to the lower right corner and click the Serch icon in the popus. 2. Go to Apps, type Control Panel in the serche box and press enter.
  • Page 11 KW5515 LinkSmart Wireless Router User Manual 1. Connect your phone to router by using default WiFi network name and password, which are printed on product label at the bottom of the router. 2. Launch a browser on your phone to log in router with www.mykasda.com. Setup your initial login password and then click next button to continue.
  • Page 12 KW5515 LinkSmart Wireless Router User Manual If your ISP gives you a PPP username and password for you, choose “PPPoE” and type in the username and password. If you have a IP address to connect to the Internet, choose “Static IP” and type in...
  • Page 13 KW5515 LinkSmart Wireless Router User Manual 4. Setup your 2.4GHz SSID and password. On the following page, you can rename the SSID and change password or just let it be default. The default password is 12345678, you can check it by clicking the eye button.
  • Page 14 KW5515 LinkSmart Wireless Router User Manual When it blows up the following tips, then you can connect your wired or wireless devices to the Internet. Note: If you have changed your wireless network name and password, you must sign in with new SSID/password to regain access to the Internet.
  • Page 15 KW5515 LinkSmart Wireless Router User Manual 3. Set up your WAN Mode If you don’t need any Internet connection information, choose “DHCP” as your WAN Mode. If your IPS gives you a PPP username and password, choose “PPPoE” as your WAN...
  • Page 16 KW5515 LinkSmart Wireless Router User Manual If you have an IP address to connect to the Internet, please choose “Static IP” as your WAN Mode and type in the IP Address, IP Subnet Mask, Gateway IP Address and DNS Server.
  • Page 17 KW5515 LinkSmart Wireless Router User Manual 5. Click Save/Apply to continue and wait for the changes to be applied. After finish the Wizard Setup, you will enter the following page; here you can do a quick change to your WAN, WiFi and LAN.

  • Page 18: Web-Based Advance Management Guide

    KW5515 LinkSmart Wireless Router User Manual 6 Web-based Advance Management Guide This chapter will introduce how to configure your router advanced behind the advanced menu. There are four options: Status, System, Network and Logout. 6.1. Status Click “Status”, you will go to the device information page. The page displays the current status about Overview, Firewall, Routers, System Log, Kernel Log, Processes and Real time Graphs.
  • Page 19 KW5515 LinkSmart Wireless Router User Manual 6.2.1 System Here you can configure the basic aspects of your device like its hostname, time -zone, language and style. 6.2.2 Administration Click “Administration”, you will go to the Router Password page, and you can change the administrator password for accessing the device.
  • Page 20 KW5515 LinkSmart Wireless Router User Manual Generate archive is to download a tar archive of the current configuration files and save it for back up. You can save it onto another place such as your computer desktop. Perform reset is to reset the router’s firmware to its initial state. If you forget your router’s web management login password, you can reset the router by performing...
  • Page 21 KW5515 LinkSmart Wireless Router User Manual When you reboot your router, the Internet connection will be lost until the process finished. 6.3. Network 6.3.1 Interfaces Click “Interfaces”, you can see the following page about the router’s interfaces, such as WAN, WAN6, GUEST and LAN.
  • Page 22 KW5515 LinkSmart Wireless Router User Manual Wan Connection Protocol 1. DHCP If you connect with a dynamic IP address or cable modem, keep the default: DHCP Protocol. 2. Static To use a fixed IP Address to connect the Internet, select Static Protocol. Then click...
  • Page 23 KW5515 LinkSmart Wireless Router User Manual IPv4 Address – enter the IPv4 address provided by your ISP. It is a necessity to connect Internet. IPv4 netmask – enter the netmask provided by you ISP. It is a necessity to connect Internet.
  • Page 24 KW5515 LinkSmart Wireless Router User Manual 3. PPPoE If you use PPPoE connection, select PPPoE as your WAN Protocol and click Switch Protocol to confirm. Username – enter the username provided by your ISP. It is a necessity to connect the Internet.
  • Page 25 KW5515 LinkSmart Wireless Router User Manual Interface – LAN IPv4 Address / Netmask: this is the router IP address and subnet mask as seen on the Internet LAN. The default value is 192.168.1.1 for IP address and 255.255.255.0 for netmask.
  • Page 26 KW5515 LinkSmart Wireless Router User Manual Ignore interface – check it to disable the DHCP for this interface Start IP – lowest leased address as offset from network address Limit – enter the maximum number of PCs that you want the DHCP server to assign IP addresses to.
  • Page 27 KW5515 LinkSmart Wireless Router User Manual Radio on/off – when wireless clients survey the local area for wireless networks to associate with, they will detect the SSID radio by the router. To broadcast your router SSID, keep the default setting—on. If you do not want to broadcast the router SSID, then select off.
  • Page 28 KW5515 LinkSmart Wireless Router User Manual APSDCapable – it is for power saving. Choose enable if you need or keep it default. 6.3.3 WPS You can start WPS (Wi-Fi Protected Setup) here by click the Enable button. 6.4 Logout Click here for logging out your router and it will go back to the login page.

  • Page 29: Appendix: Frequent Asked Questions

    KW5515 LinkSmart Wireless Router User Manual Appendix: Frequent Asked Questions This chapter offers some suggestions to solve problems you might encounter. The potential problems are divided into 3 categories: Power, Hardware Connections, and LEDs; Device Access and Login; Internet Access.

  • Page 30: Internet Access

    KW5515 LinkSmart Wireless Router User Manual 3. Internet Access My PC cannot browse Internet web page. Please make sure DNS server appointed to the PC is correct. You can use ping application program to test whether the PC can connect to the DNS server of the operator.
