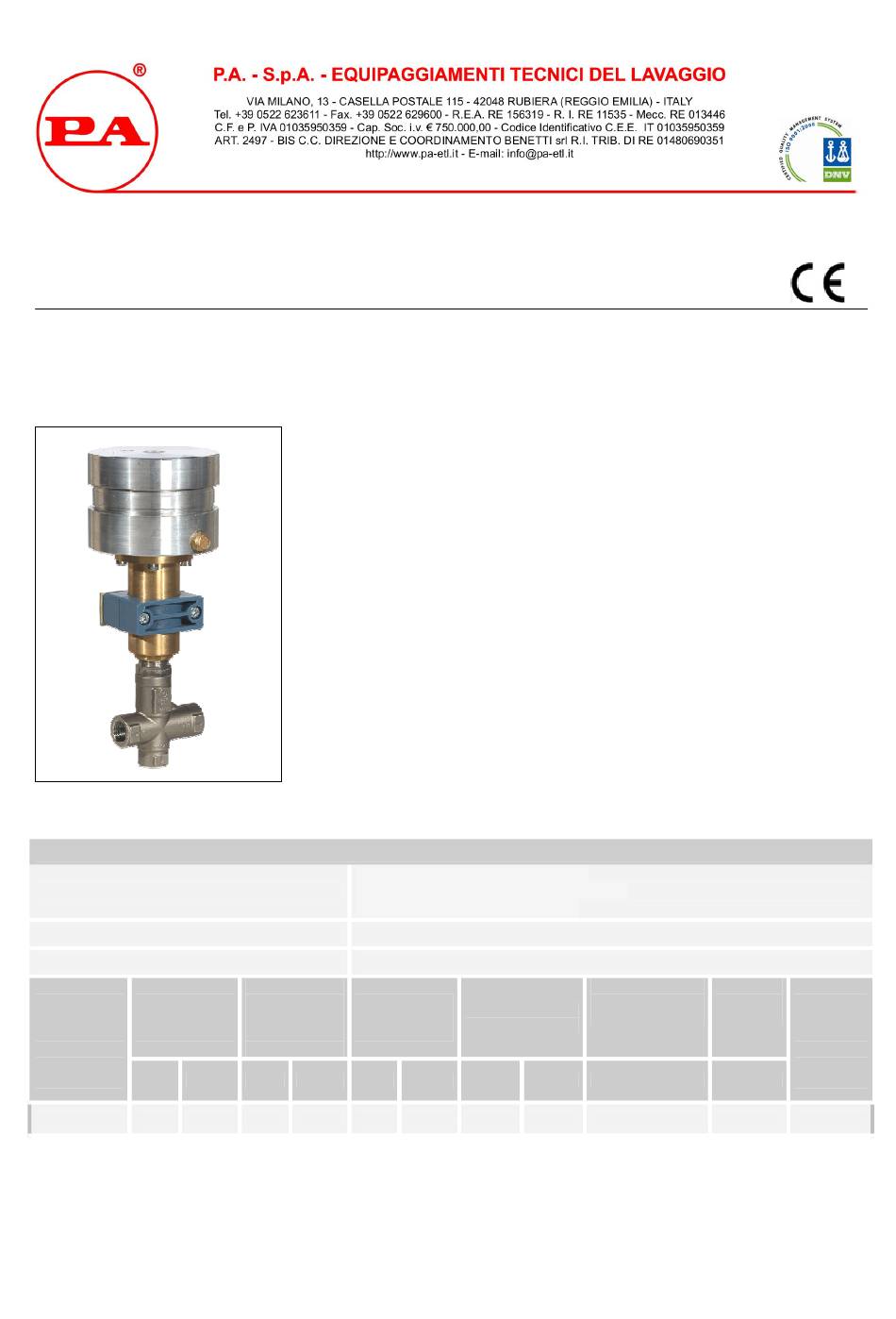

P.A. VRPP 600 Technical Manual

Pressure regulating valve by pneumatic control (discharge)
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

VRPP 600
– Pressure regulating valve by pneumatic control (discharge)
Aisi 303
Pressure regulating valve
At gun shut off, the water flow is bypassed at reduced pressure
Construction material
Rated temperature (1)
Rated diameter
PART
RATED
NUMBER
PRESSURE
bar
MPa
56
60.5450.00
560
1) The valve has been designed for a continuous use at a water temperature of 60° C. It can resist for sh ort periods at a
maximum temperature of 90° C.
•
60.5450.00 VRPP 600
- Pneumatic piston control.
- Pneumatic piston at max pressure => max defined pressure;
without air pressure => circuit in low pressure
- Possibility to vary the working pressure by adjusting the air feed
pressure
- Possibility to adjust the max working pressure mechanically.
- Usable with a multiple number of lances.
- High balancing to guarantee slight variations of the rated
pressure when the flow varies in bypass.
- Fixing device PI.EFFE.CI. AC6-45 - M6 screws UNI 5391.
Technical specifications
- Valve body in stainless steel 303
- Parts in Brass and 303 Stainless Steel
- Pneumatic cylinder Alluminium.
PERMISSIBLE
MINIMUM
PRESSURE
ADJUSTABLE
PRESSURE
bar
MPa
bar
MPa
60
600
25
DN 25
MAXIMUM AIR
PRESSURE
bar
MPa
2.5
1
10
Last update: 03/11/2011
Technical manual:
G1/2" FF
90° C
MAXIMUM FLOW
WEIGHT
RATE
l/min
g
80
3540
E 250
DN 15
INLET
OUTLET
BYPASS
G 1/2" F
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VRPP 600 and is the answer not in the manual?

Questions and answers

Summary of Contents for P.A. VRPP 600

  • Page 1 Pressure regulating valve At gun shut off, the water flow is bypassed at reduced pressure DN 15 • 60.5450.00 VRPP 600 G1/2” FF - Pneumatic piston control. - Pneumatic piston at max pressure => max defined pressure; without air pressure => circuit in low pressure...

  • Page 2: Dimensional Drawing

    Last update: 03/11/2011 DIMENSIONAL DRAWING DESCRIPTION The valve has an inlet fitting, an outlet fitting and a bypass fitting with G ½” F threading. A pneumatic jack is fitted to the valve with a feed fitting G ¼” F thread. SELECTION This product is to be utilized with clean fresh water, even slightly additivated with normal detergents.
  • Page 3 Last update: 03/11/2011 PRESSURE ADJUSTMENT/SETTING The adjustment has to be made with the system under pressure and the gun open and with the air feed pressure at 4 bar – 0.4 MPa. Vary the pressure by screwing/unscrewing the jack head (pos.24). This operation will be less difficult if the correct nozzle has been chosen.

  • Page 4: Problems And Solutions

    Make sure that you are given the Original Conformity Declaration for the accessory chosen. The present manual is valid for all unloader valves named VRPP 600. Technical data, descriptions and illustrations are indicative and liable to modification without notice.
  • Page 5 60.5450.00 VRPP 600 regul.valv. 1/2"F Bsp-air contr. Pos. Description Q.ty K1K2K3K4 Pos. Description Q.ty K1K2K3K4 1 60.5401.55 Housing -VS23-VRP/P600, 1/2F Bsp brass 19 60.5451.31 Spring guide spacer, brass 2 10.4036.17 Back-up ring, 14x2x17x1,5 mm • 20 16.2100.00 Set screw, DIN914 M4x4 mm 3 10.3064.01 O-ring, 1,78x14 mm Ni 85...
  • Page 6 NOTE NOTES...
  • Page 7 NOTE NOTES...
  • Page 8 P.A. SpA EQUIPAGGIAMENTI TECNICI DEL LAVAGGIO Via Milano, 13 42048 Rubiera - (RE) ITALY Tel +39 0522 623611 (ric aut) - Fax +39 0522 629600 Info@pa-etl.it - www.pa-etl.it...
