Soaiy S-61 Quick Start Manual

Bluetooth hands-free car kit

Hide thumbs

Table Of Contents

Bluetooth Hands-free Car Kit

S-61

Quick Start Guide

Table of Contents

Need help?

Do you have a question about the S-61 and is the answer not in the manual?

Questions and answers

Summary of Contents for Soaiy S-61

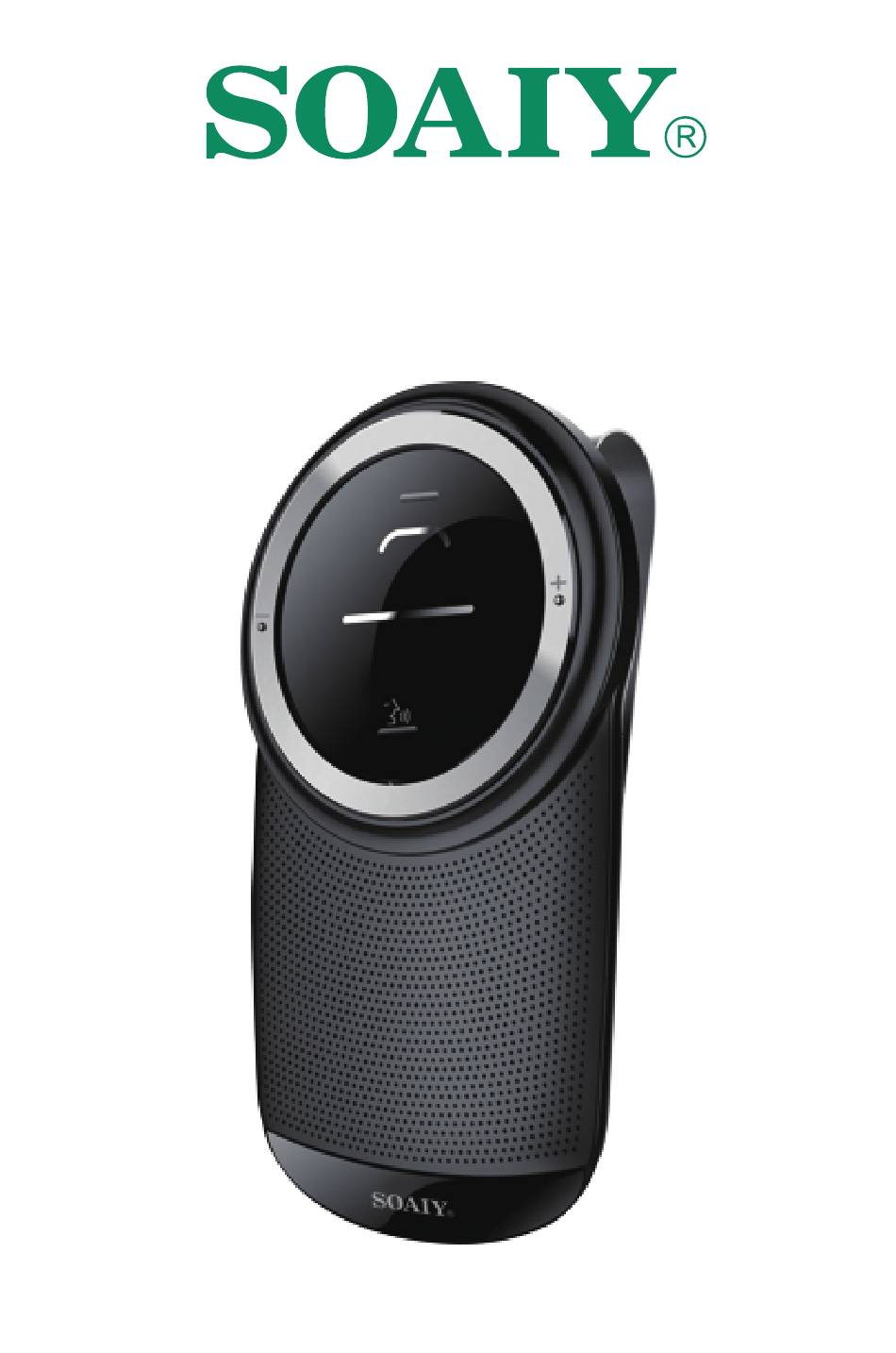

Page 1 Bluetooth Hands-free Car Kit S-61 Quick Start Guide...
Page 2: Table Of Contents
....FAQ & HOW TO TAKE CARE OF YOUR S-61 .......
Page 3: Welcome
WELCOME Dear customers Thank you for purchasing SOAIY Bluetooth Handsfree Car Kit S-61. We hope you enjoy it ! To ensure correct operation, please read this quick start guide carefully before operation. Package Contents S-61 Quick Start Guide USB cable...
Page 4: Overview
SOAIY S-61 OVERVIEW WHAT YOUR SOAIY S-61 CAN DO • Answer, end, decline incoming calls. • Deliver great sound and noise cancellation with the HD voice microphone. • Last number redial. • Connect with two mobile phones simultaneously. • Voice notification for incoming call number.
Page 5: Positioning
POSITIONING YOUR S-61 Insert the metal clip into the back groove of your S-61. Clip the S-61 to the sun visor in your vehicle.
Page 6: Charging
Connect your S-61 with the USB cable to the Car Charger before plugging the Charger into the car lighter socket equipped in your vehicle PC CHARGING Connect your S-61 with the USB cable to any powered USB slot on your PC.
Page 7: Getting Started
TURNING ON YOUR S-61 Slide the ON/OFF button to turn the S-61 on or off. FIRST TIME PAIRING The first time the S-61 is turned on, voice guidance will guide you through pairing with your mobile phone. 1.Turn on the S-61.
Page 8 3.Activate Bluetooth on the second mobile phone and select S-61. If asked for a passkey or PIN during pairing, please enter 0000. 4. Select the S-61 from the list of My Devices or Paired Devices on the first mobile to connect the S-61 again.
Page 9: How To Use Your
HOW TO USE YOUR S-61 WITH YOUR MOBILE PHONE Answer/End Volume - Volume + Voice Command Microphone Speaker ON/OFF Charging Port...
Page 10 HOW TO USE YOUR S-61 Start a call with your mobile phone. The call Make call will automatically transfer to the S-61. Answer call Press the Answer/End button or say “YES” End call Press the Answer/End button Press the Answer/End button for 2.5 seconds Decline call or say “NO”...
Page 11 ANSWERING/ENDING A CALL 1. When there is an incoming call, the S-61 will alert you by reading out loud the incoming phone numbers. You can say either “ Yes “ to answer the incoming call or say “NO” to decline it after you hear the incoming phone numbers.
Page 12: Other Functions
MOBILE PHONE VOICE COMMANDS (E.G. SIRI) To activate your mobile phone’s voice commands (e.g. Siri), press the Voice Command button on the S-61. For a full list of voice commands refer to your mobile phone’s user manual. (Phone dependent) LOW BATTERY ALERT The red indicator flashes quickly for three time every 3 seconds.
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS Dimensions W72xD26xH130mm Weight 120g including the metal clip Microphone HD Omni-directional microphone Speaker Frequency response 150Hz~18KHz Impedance 4Ω ≥70dB Bluetooth version Operating range Up to 8 paired devices. Two active Devices Paired devices connected simultaneously Battery Internal rechargeable 1000mAh Li-ion battery Talk time Up to 18 hours Standby time...
Page 14: Faq & How To Take Care Of Your S-61
Always store the S-61 with the power off and safely protected. • If do not use the S-61 for long time, please charge at least once within one month, in order to prevent the lithium battery from getting damaged because of excessive consumption.
Page 15: Limited Warranty
This limited warranty covers defects in materials and workmanship of the Soaiy product ( the "product" ) for the Warranty Period as defined below. Soaiy does not warrant, and is not responsible for any product or device made by anyone other Soaiy.
Page 16 The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Visit our web site at www.soaiyaudio.com MADE IN CHINA FCC ID: 2AECY-S-61 SOAIY Part No. S-61-20160428-00P Printed in China...
