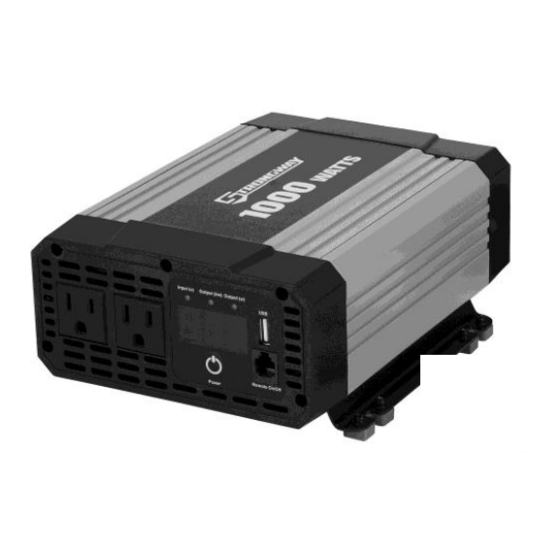

Digital Power Inverter

Owner's Manual

WARNING:

Read carefully and understand all ASSEMBLY AND OPERATION

INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety

precautions may result in serious personal injury.

Items #53072, #53073, #53071, #53074, #53067

READ & SAVE THESE INSTRUCTIONS

Table of Contents

Need help?

Do you have a question about the 53072 and is the answer not in the manual?

Questions and answers

Summary of Contents for Strongway 53072

Page 1 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Items #53072, #53073, #53071, #53074, #53067 READ & SAVE THESE INSTRUCTIONS...
Page 2 Thank you very much for choosing a Strongway™ product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
Page 3: Table Of Contents
Table of Contents Intended Use ............................4 Technical Specifications ........................4 Important Safety Information ....................... 6 Specific Operation Warnings ....................... 7 Main Parts .............................. 9 Assembly Instructions ........................11 Before Each Use ..........................12 Operating Instructions ........................12 After Each Use ............................. 13 Maintenance ............................
Page 4: Intended Use
Intended Use The Strongway Digital Power Inverter is a high-performance solution for using household power while on the road. Connected to the 12 volt output power source, the inverter efficiently and reliably supplies 115V/60Hz AC power for a wide variety of loads like laptops, microwaves, and cellular phones with power consumption under the rated watts.
Page 5 #53071 Property #53071 Specification AC Power Output AC Power Voltage 115V Maximum AC Output Power 2000W Maximum AC Output Surge Power 4000W AC Output Frequency 58Hz - 62Hz AC Output Waveform Modified Sine Wave USB Power Output DC Output Voltage 5V DC, 2100mA DC Power DC Input Voltage Range...
Page 6: Important Safety Information
#53067 Property #53067 Specification DC Power DC Input Voltage Range 11V to 15V DC ≤ 0.5A (at a 12V input) Battery Drain Without AC Load Low Battery Shut-Down Point (Nominal) 10.5 ± 0.3V DC High Battery Shut-Down Point (Nominal) 15.5 ± 0.5V DC Efficiency (Maximum) Physical Ambient Operating Temperature Range...
Page 7: Specific Operation Warnings
children to handle it. ⚠WARNING PERSONAL SAFETY  Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use the inverter while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool may result in serious personal injury.
Page 8 SHOCK HAZARD  DO NOT expose the inverter to rain, snow, spray, or bilge water.  Make sure the inverter wiring is of proper size and rating and in good condition. Operating the inverter with damaged wiring may void the warranty. ...
Page 9: Main Parts
batteries. The batteries may produce a short circuit current that can weld metals, thereby causing severe burns on skin.  Make sure there is plenty of fresh water, soap, and baking soda near the work area. If a person’s skin or clothing accidentally comes into contact with battery acid, wash immediately with baking soda, soap, and water.
Page 10 Page 10 of 16...
Page 11: Assembly Instructions
Reference Subassembly Ventilation Opening Cooling Fan Remote Switch Port USB Port Digital Display Power Switch Button Output Power Indicator (W) AC Outlet AC Outlet Overload Reset Circuit Input Indicator (V) Output Power Indicator (kW) Positive DC Terminal Ground Terminal Negative DC Terminal Terminal Covers Cooling Fans DC Cable...
Page 12: Before Each Use
Before Each Use Before installing the inverter, make sure the location meets the following conditions. This inverter has a mounting bracket. To secure and fasten your inverter, please mount the inverter. Don't drop or pour any liquid on the inverter. Cool Keep the inverter away from direct lighting.
Page 13: After Each Use
Note: Most devices require an initial surge of power to start. Most devices can be started up with two times their power rating. Be aware of the start-up power of the device(s) you intend to use for the inverter. This inverter has the start-up capacity two times of rated power. The combined loads must not exceed the rated power.
Page 14: Parts List
Parts List Reference Part Description Quantity Image Inverter DC Cable (red + black) Owner’s Manual Replacement Parts  For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.  Not all product components are available for replacement. The illustrations provided are a convenient reference to the location and position of parts in the assembly sequence.
Page 15: Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or "Us'') warrants to the original purchaser only ("You'' or ''Your'') that the Strongway product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of one year from date of purchase.
Page 16 Distributed by: Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306 www.northerntool.com Made in China Page 16 of 16...
