Summary of Contents for Extreme USB RG2312

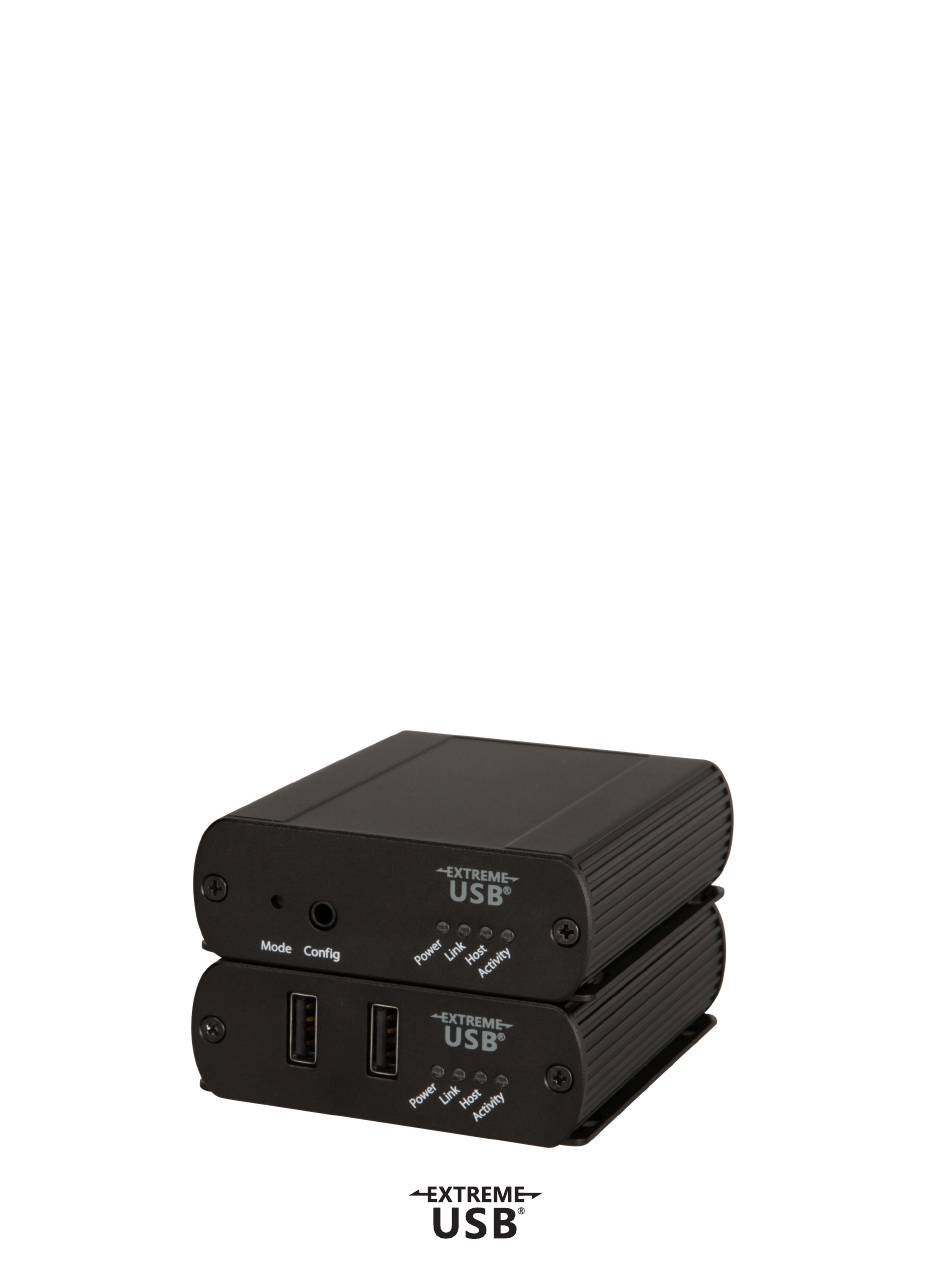

- Page 1 USB 2.0 RG2312 2-port USB 2.0 100m CAT 5e/6/7 Extender System with Flexible Power User Guide...
- Page 2 CE Statement We, Icron Technologies Corporation, declare under our sole responsibility that the USB 2.0 RG2312, to which this declaration relates, is in conformity with European Standard EN 55022, EN 61000, and EN 55024.
-
Page 3: Table Of Contents
Contents Introduction ........................3 USB 2.0 RG2312 Product Contents ............................. 3 Requirements ....................................3 Features ....................................... 3 The Local Extender ..................................4 The Remote Extender ..................................5 Installation Guide ....................... 6 Preparing for Installation ................................6 Installing the Local Extender ............................... 6 Installing the Remote Extender .............................. -
Page 4: Introduction
• Quick Start Guide The RG2312 features flexible power, allowing the installer to connect the supplied 24V, 1A power adapter to either the note local or remote extender for normal extension system operation. Please note, when powering at the local extender, take... -
Page 5: The Local Extender
The Local Extender The local extender connects to the computer using a standard USB cable (included). Power for the local extender is provided by the host computer. Power for the remote extender is provided by the 24V AC adapter connected at either the local or remote extender. The local extender delivers power over the CAT 5e/6/7 extension link to the remote extender when the included power supply is connected to the local extender. -
Page 6: The Remote Extender
The Remote Extender The remote extender provides two USB Type A ports for connecting standard USB devices allowing up to 1 Amp per USB port, or 1.5 Amps total when both ports are used concurrently. Additional devices may be connected by attaching USB hubs to the remote extender. The remote extender is powered either directly by the included power supply, or via the CAT 5e/6/7 link extension cable from the local extender. -
Page 7: Installation Guide
The RG2312 features flexible power, allowing the installer to connect the supplied 24V, 1A power adapter to either the local or remote extender for normal extension system operation. Please note, when powering at the local extender,... -
Page 8: Connecting The Local Extender To The Remote Extender
Connecting the Local Extender to the Remote Extender To ensure proper operation, it is recommended that only solid core CAT 5e/6/7, Unshielded Twisted Pair (UTP) cabling note be used to connect the local extender to the remote extender. The cabling must have a straight-through conductor configuration with no crossovers and must be terminated with 8 conductor RJ45 connectors at both ends. -
Page 9: Checking The Installation
2. For Windows users (XP, 7, 8, 8.1, 10), open Device Manager to confirm that the RG2312 extender system has been installed correctly. Expand the entry for Universal Serial Bus controllers by clicking the “+” sign. If the extender system has been installed correctly, you should find it listed as a “Generic USB Hub”... -
Page 10: Optional Usb Extender Mounting Options
Optional USB Extender Mounting Options The bottom of the RG2312 enclosure features four convenient pre-drilled holes for optional direct surface mounting and four mounting slots for easy cable-ties. Based on your requirements, choose from three available mounting options: 1. USB Extender Mounting Kit 2. -
Page 11: Option 2: Usb Extender Direct Surface Mounting
Option 2: USB Extender Direct Surface Mounting (using your own hardware) The bottom of the RG2312 enclosure features four pre-drilled holes for optional direct surface mounting. Using the stencil below, along with your own hardware you can directly mount your USB Extender on a surface. -
Page 12: Troubleshooting
Troubleshooting The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. PROBLEM CAUSE SOLUTION... - Page 13 PROBLEM CAUSE SOLUTION Link LED on the • The remote extender is not 1. Confirm the host computer is on and providing local and remote receiving power. power to local extender. extenders is off. • The local extender is not 2.
-
Page 14: Contacting Technical Support
Contacting Technical Support If you are experiencing problems not referenced in the Troubleshooting Guide, contact Technical Support at the company where you purchased this product and provide them with the following information: • Host computer make and mode • Type of operating system installed (e.g. Windows 10, macOS 10.12, etc.) •... -
Page 15: Technical Glossary
You may use either the T568A scheme (Table 1) or the T568B scheme (Table 2) for cable termination as the RG2312 requires all four pairs of the cable. RJ45 connectors are sometimes also referred to as 8P8C connectors. Note that any give cable must be terminated using the same T568 scheme on both ends to operate correctly. -
Page 16: Specifications
Specifications Range Up to 100m (330ft) over Cat 5e/6/7 cable High-speed devices (480 Mbps) (USB 2.0) USB Device Support Full-speed devices (12 Mbps) (USB 1.1) Low-speed devices (1.5 Mbps) (USB 1.1) Maximum USB Devices 30 USB devices or 4 USB hubs with 26 USB devices Supported 100-240 V AC input, 24V 1A DC output Power Supply...
