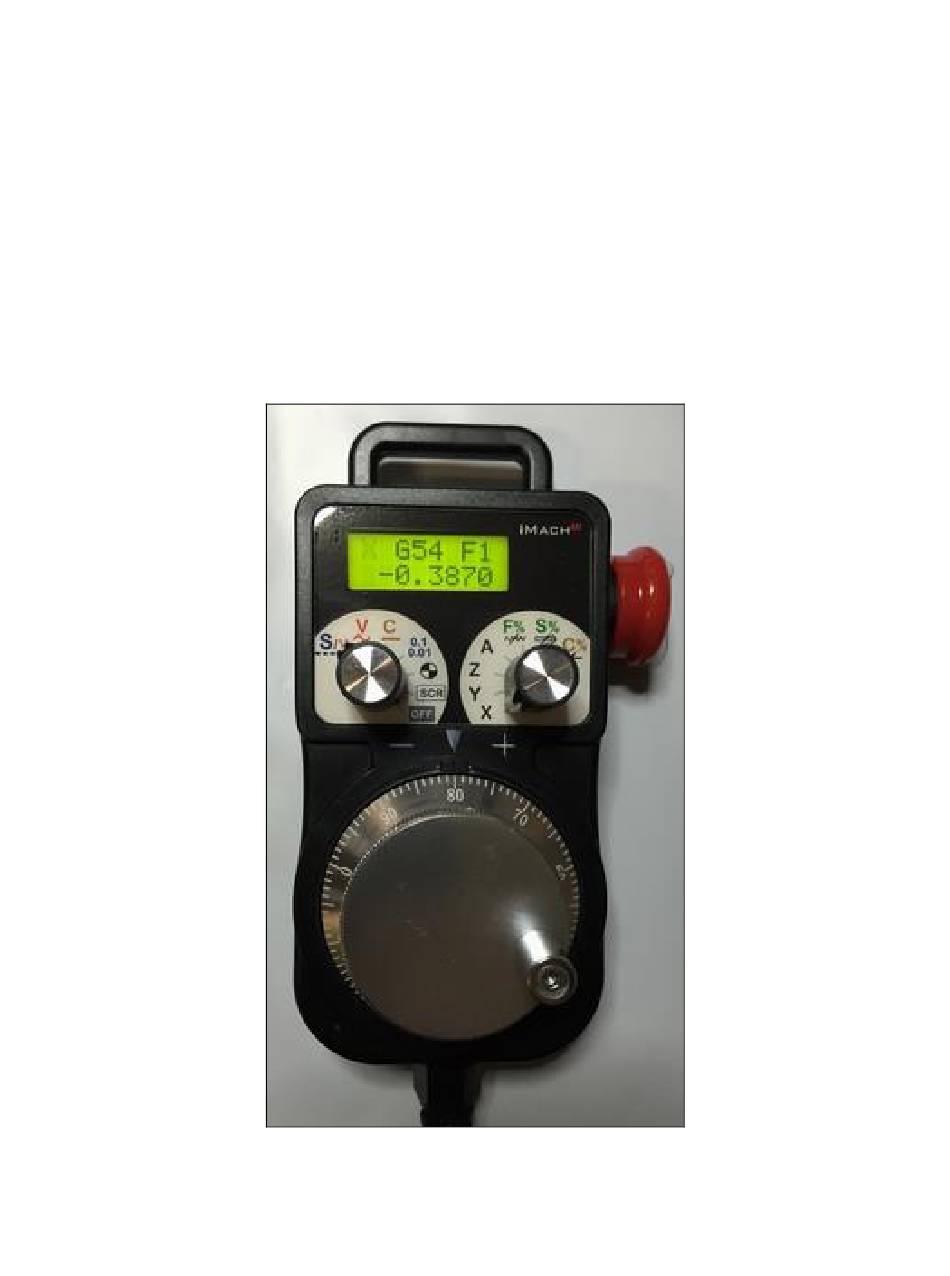

- Page 1 - 1 - www.vistacnc.com VistaCNC P1A-S(E) CNC Control Pendant for UCCNC - 1 - www.vistacnc.com P1A-S Pendant UCCNC Manual v. 1.0...
- Page 2 - 2 - www.vistacnc.com PREFACE Any machine tool, including computer controlled machine tool, is potentially dangerous. VistaCNC LLC accepts no responsibility for any damage or injury caused by its use. It is your responsibility to insure that you understand the machine you are using and the procedures for safety operations. If you are in any doubt you must seek guidance from a professionally qualified expert rather than risk injury to yourself or to others.
- Page 3 - 3 - www.vistacnc.com FEATURES Plug n’ Play USB connection and controls. 100 steps high precision MPG encoder. Step, Velocity and Continuous mode jogging through MPG. Feed rate, Spindle speed, and Step jogging size and rate change through MPG. ...
- Page 4 - 4 - www.vistacnc.com PLUGIN and FW Download the latest UCCNC P1A-S Plugin package from www.vistacnc.com download page and unzip the package. The package includes following files: This manual P1ASpendant.dll --- P1A-S pendant UCCNC plugin file Pendant FW update procedure --- for pendant firmware upgrade Pendant FW Loader --- tools for FW upgrade P1AS_UCCNC_FW_v --- FW for UCCNC Move the plugin file into UCCNC Plugins directory.
-
Page 5: Axis Selection
- 5 - www.vistacnc.com 1. Axis selection Turn axis selection knob to X, Y, Z, or A position to select an axis to jog. □ Selected axis name. It flashes at ½ second rate. □ Step size and Step jogging rate. The size and rate display changes alternately every 2 seconds. 2. - Page 6 - 6 - www.vistacnc.com 2.4 STEP SIZE Turn MPG one or few clicks clockwise or counterclockwise to select predefined step size. 2.5 AXIS ZEROING Turn MPG one or few clicks clockwise or counterclockwise to zero selected axis -> 2.6 STEP JOG RATE Turn MPG one or few clicks clockwise or counterclockwise to set step jogging rate.
-
Page 7: Spindle Override
- 7 - www.vistacnc.com □ 4 and 2 decimal digits. 2.8 CONTINUOUS RATE In C% mode, turning MPG changes the speed used in CONTINUOUS mode. 2.9 FEED OVERRIDE In F% mode, turning MPG changes current feed overridden (FO) rate. 2.10 SPINDLE OVERRIDE In S% mode, turning MPG changes current spindle speed overridden (SO) rate - 7 - www.vistacnc.com... - Page 8 - 8 - www.vistacnc.com 3. E-Stop switch button 5.1 E-Stop switch button in P1A-S model Press E-STOP switch button to send out E-Stop signal to UCCNC application and activate Emergency Mode in UCCNC. When the button is pressed, the switch is locked down. Twist the button to reset the button and reset E-STOP.
- Page 9 - 9 - www.vistacnc.com E-STOP switch and EE box connection in P1A-SE SPECIFICATIONS 100 steps (clicks) per Rev MPG. MPG MTBF > 10000 hour. Shipped with10' High Speed USB cable. Extendable to 15’ with extension cable, or to 45’ with ...
