6-ch Relay, 6-ch Digital Input Data Acquisition Module

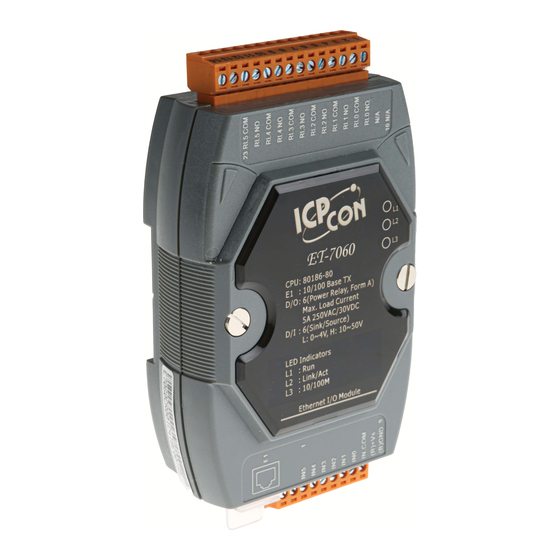

The ET-7060 provides 6 wet contact digital input channels and 6 form A electromechanical
relays. It features optical isolation for 3000 VDC of transient overvoltage protection and
doesn't have channel-to-channel isolation. Each input channel can be used as a 32-bit counter.
The power-on value and safe value of relay are programmable. The most popular automation
solution for Ethernet remote monitoring and control application. This Quick Start Guide will
provide information needed to get started with ET-7060. Please also consult the User Manual
for detailed information on the setup and use of ET-7060
