Summary of Contents for PR Lighting JNR-8016

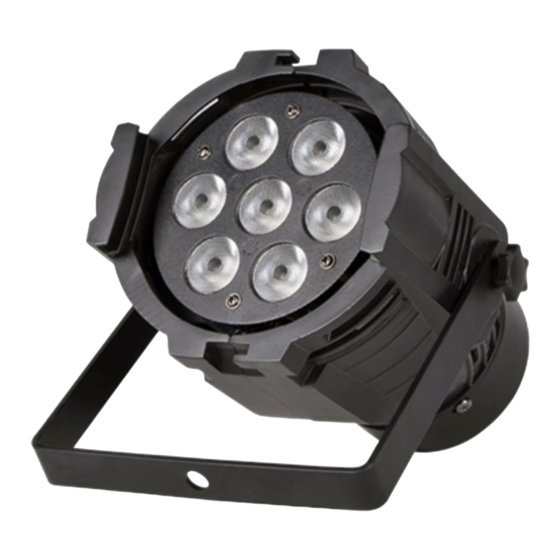

- Page 1 JNR PAR 36 7*10 PR LIGHTING LTD. JNR-8016 http://www.pr-lighting.com 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888...
- Page 2 SAFETY INSTRUCTIONS MAINTENANCE AND CLEANING The following points have to be considered during the inspection: CAUTION 1) All screws for installing the devices or parts of the device have to be tightly Becareful with your operations.With a dangerous voltage you cansuffer a dangerous electric shock when touching wires! connected and must not be corroded.
- Page 3 UNPACKING DMX CHANNELS 4CH Mode Thank you for choosing our JNR PAR 36 7*10. For your own safety, please read this Channel Function Value Description manual before installing the device. This manual covers the important information 0-255 0-100% Red dimmer on installation and applications.
- Page 4 FEATURES & SPECIFICATIONS COMMON 1:Ground DMX+ 2:Data(-) Features 3:Data(+) DMX- • 7PCS 10W 4-IN-1 LEDs DMX512 OUT DMX512 IN DMX Output DMX Input • Specific optic system in 25 degree 3-PIN XLR 3-PIN XLR 3-Pin XLR Socket 3-Pin XLR Socket •...
- Page 5 Regardless of the rigging option you choose for your JNR PAR 36 7*10 , always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle.
- Page 6 from a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture OPERATION INSTRUCTIONS is kept at least 0.5m (1.5 ft) away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent ·...
