Summary of Contents for Sharper Image MI605

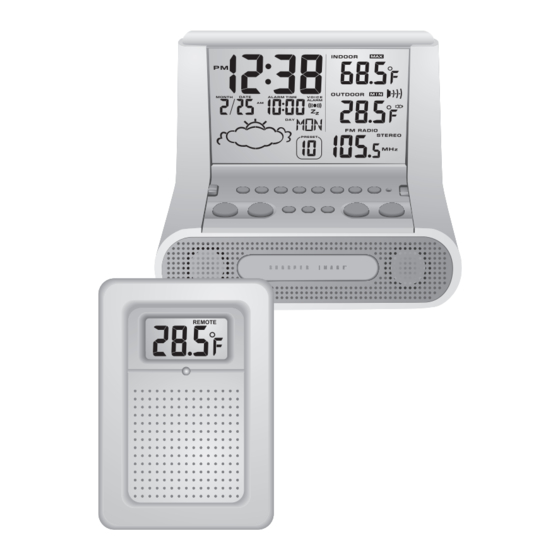

- Page 1 Color-Coded LCD Weather Station & AM/FM-Stereo Radio/Alarm Clock MI605 Instructions Read and save these instructions. MI605 IM_v1_0905.indd 1 9/16/05 10:41:55 AM...
- Page 2 We offer generous return privileges and excellent warranties on all our products. For more than 25 years, The Sharper Image has shared the fun of discovering innovative products that make life better and more enjoyable. We’ve been in business a long time because we are an exciting place to shop and —...
-
Page 3: Table Of Contents
. Wireless.Remote.Temperature.Transmission............. 12 . Transmission.Troubleshooting................13 . Interference..................... 13 . Reset.Button....................13 . Talking.Clock....................14 . Alarm.Functions....................14 . Temperature-Sensing.Backlight................. 15 . General.Troubleshooting.................. 15 Statement.of.FCC.Compliance................16 FCC.Label.Compliance.Statement............... 16 MI605 IM_v1_0905.indd 3 9/16/05 10:41:56 AM... -
Page 4: Warnings
Ensure that it is not in direct sunlight. If necessary, screw the included wallmount bracket to a convenient outdoor location and place the remote unit inside the bracket. Note: For more details on synchronization, please refer to the section entitled, “Wireless Remote Temperature Transmission.” MI605 IM_v1_0905.indd 4 9/16/05 10:41:57 AM... -
Page 5: Synchronization.of.remote.unit.&.Main.unit
8... T o.set.the.calendar,.slide.the.LOCK/ALM/TIME/CAL.switch.to.the.CAL posi- tion..The.date.blinks..Press.the.HOUR/MONTH.and.MIN/DATE.buttons. until.the.current.date.appears.on.the.display..Slide.the.LOCK/ALM/TIME/CAL. switch.to.the.LOCK position. Synchronization of Remote Unit & Main Unit 1... A fter.inserting.the.batteries.into.the.main.unit.and.remote.unit,.plug.in.the. main.unit.using.the.10.5V.adapter..The.LCD.on.the.unit.shows.the.indoor. temperature.and,.within.minutes,.shows.the.outdoor.temperature.—.the.same. temperature.that.appears.on.the.remote.unit..If.at.least.10.minutes.pass.and. the.outside.temperature.field.displays.“---,”.ensure.that.there.is.a.temperature. appearing.on.the.remote.unit..If.a.temperature.does.appear.on.the.remote. unit,.press.the.RE-SYNC.button.on.the.main.unit.and.the.RESET.button.on. the.remote.unit..The.temperature.appears.within.a.few.minutes. 2... O nce.the.units.are.in.sync,.place.the.remote.unit.in.a.desired.outdoor.loca- tion.within.100.feet.of.the.main.unit..Once.you.have.located.a.place.for.the. outdoor.unit,.ensure.that.the.main.unit.continues.to.show.an.outdoor.tem- perature..If.it.is.not.showing.an.outdoor.temperature,.the.remote.unit.has.been. placed.either.too.far.away.or.in.an.area.where.there.is.interference.blocking. the.signal..The.outdoor.unit.should.be.placed.as.close.as.possible.to.the.main. unit.with.as.little.interference.as.possible.(walls,.appliances,.computers,.etc. MI605 IM_v1_0905.indd 5 9/16/05 10:41:57 AM... -
Page 6: Weather.forecast
48 hours for the unit to sense and calculate the norm or the middle pressure level. After.this.time,.the. unit.shows.weather.tendencies.due.to.an.increase.or.decrease.in.the.barometric. pressure..The.icon.on.the.unit.shows.what.the.weather.tendency.will.be.over.the. next.six.hours. Weather.tendency.is.indicated.by.and.up.or.down.forecast.arrow..(See.table.below.) 1... T he.up.arrow. .indicates.a.significant.increase.in.atmospheric.pressure... This.normally.means.the.weather.is.going.to.improve. 2... T he.down.arrow. .indicates.a.significant.decrease.in.atmospheric.pressure.. This.means.the.weather.is.going.to.get.worse. Note:.If.the.unit.continually.gives.incorrect.forecasts,.it.can.be.corrected.by.. re-syncing.the.unit.on.a.partly.cloudy.day..This.allows.the.barometer.to.find.the. right.barometric.pressure.level.without.being.too.high.or.low. 3..The.forecast.icon. .without.an.arrow.indicates.a.steady/insignificant.change. of.atmospheric.pressure..This.means.the.weather.will.remain.unchanged. MI605 IM_v1_0905.indd 6 9/16/05 10:41:58 AM... -
Page 7: General.instructions
WEATHER FM/AM RADIO FM/AM RADIO FORECAST Remote Unit Foldable Wall Stand Mout Holder Battery RESET Door °C/°F Buttons on Top Panel 1..R ESET.–.Clears.and.resets.the.entire.display. 2..° C/°F.–.Changes.temperature.display.to.either.Celsius.or.Fahrenheit. 3..T EMP/MAX/MIN.–.Displays.the.maximum.and.minimum.temperatures.for. inside.and.outside.temperatures. MI605 IM_v1_0905.indd 7 9/16/05 10:42:04 AM... -
Page 8: Battery.installation
4 AAA batteries into the battery compartment on the rear of the main unit, ensuring proper polarities are observed. Remote Transmitter Unit Insert 2 AA batteries into the battery compartment on the remote unit, ensuring proper polarities are observed. MI605 IM_v1_0905.indd 8 9/16/05 10:42:05 AM... -
Page 9: Setting.the.clock
Setting the Calendar The.calendar.can.be.set.to.any.date.between.January.01,.2002.and.December.31,.2051. 1... S lide.the.LOCK/ALM/TIME/CAL.switch.to.the.CAL.position... The.date.blinks. 2... T o.set.the.calendar,.press.the.HOUR/MONTH.and.MIN/DATE.buttons.until.the.. current.date.appears.on.the.display. 3..Press.the.12/24/YEAR.button.until.the.current.year.appears.on.the.display. 4..Slide.the.LOCK/ALM/TIME/CAL.switch.to.LOCK.position. Radio Operation Tuner 1..For.best.reception,.completely.extend.the.antenna. 2... T o.turn.the.radio.on,.press.the.RADIO ON-OFF.button..The.FM.RADIO.icon.. appears.on.the.display.screen. 3... T o.select.the.desired.band.(AM.or.FM),.press.the.BAND.button.until.the.desired. band.icon.appears.on.the.display. 4... T o.manually.tune.to.the.desired.station.frequency,.press.the.TUNING UP.(5).or. TUNING DOWN.(6).button.repeatedly.until.the.desired.frequency.appears.on. the.display. MI605 IM_v1_0905.indd 9 9/16/05 10:42:06 AM... - Page 10 4..Press.the.MEMORY SET.button..The.preset.number.flashes. 5... T o.select.the.desired.memory.location,.press.the.PRESET.button.until.the.desired. preset.position.appears.on.the.display. 6..To.confirm,.press.the.MEMORY SET.button.again. 7... T o.scroll.through.all.of.the.preset.radio.stations,.repeatedly.press.the.PRESET.. button..The.unit.will.cycle.through.all.preset.stations.in.order. Sleep Timer The.radio.can.be.set.to.automatically.turn.off.after.a.certain.number.of.minutes. (from.10.to.90). 1... T o.set.the.sleep.timer.while.the.radio.is.on,.press.and.hold.the.SLEEP.button.for. 2.seconds..The.radio.turns.off.temporarily..“90.MINS”.flashes.on.the.display. 2... T o.select.the.duration.of.the.sleep.timer,.press.the.SLEEP.button.repeatedly.until. the.desired.length.of.time.appears..The.timer.decreases.in.10-minute.increments. between.90.and.10.minutes.each.time.the.SLEEP.button.is.pressed..Two.seconds. after.setting.the.desired.length.of.time,.the.radio.turns.on.again..The.sleep.timer. is.now.set. Note: •.. T o.turn.off.the.sleep.timer,.press.the.SLEEP.button.until.“00”.appears..The.radio. will.not.turn.off.automatically. •.The.SLEEP.mode.only.works.when.you.manually.turn.on.the.radio. MI605 IM_v1_0905.indd 10 9/16/05 10:42:06 AM...
-
Page 11: Weather.forecast
After.this.time,.the. unit.shows.weather.tendencies.due.to.an.increase.or.decrease.in.the.barometric. pressure..The.icon.on.the.unit.shows.what.the.weather.tendency.will.be.over.the. next.six.hours. Weather.tendency.is.indicated.by.and.up.or.down.forecast.arrow..(See.table.below.) 1... T he.up.arrow. .indicates.a.significant.increase.in.atmospheric.pressure..This. normally.means.the.weather.is.going.to.improve. 2... T he.down.arrow. .indicates.a.significant.decrease.in.atmospheric.pressure.. This.means.the.weather.is.going.to.get.worse. Note:.If.the.unit.continually.gives.incorrect.forecasts,.it.can.be.corrected.by.re- syncing.the.unit.on.a.partly.cloudy.day..This.allows.the.barometer.to.find.the.right. barometric.pressure.level.without.being.too.high.or.low. 3..The.forecast.icon. .without.an.arrow.indicates.a.steady/insignificant.change. of.atmospheric.pressure..This.means.the.weather.will.remain.unchanged. Weather Conditions The.current.weather.condition.is.displayed.using.one.of.five.animated.icons:.. Sunny,.Partly.Cloudy,.Cloudy,.Rainy.or.Stormy..(See.table.below.).The.Stormy.icon. only.appears.when.a.sudden.and.serious.drop.in.atmospheric.pressure.is.detected. MI605 IM_v1_0905.indd 11 9/16/05 10:42:07 AM... -
Page 12: Indoor.and.outdoor/Remote.temperature
1... T he.indoor.and.outdoor.temperatures.can.be.displayed.in.either.°F.or.°C..To. select.°F.or.°C,.press.the.°C/°F.button.on.the.main.unit.or.remote.unit.until.the. desired.display.appears..The.main.unit.converts.the.temperature.if.the.remote. transmitter.unit.is.set.to.a.different.temperature.display..If.the.. temperature.exceeds.or.falls.below.the.unit’s.range,.the.LCD.shows.either.“HI”. or.“LO”.in.place.of.the.temperature. 2... T o.display.the.recorded.minimum.and.maximum.indoor.and.outdoor.tempera- tures.in.succession,.press.the.TEMP MAX/MIN.button.on.the.main.unit.repeat- edly..The.temperature.display.returns.to.the.current.temperature.after.5.seconds. or.after.hitting.the.TEMP MAX/MIN.button.three.times..To.clear.the.maximum. and.minimum.temperature.data,.press.the.CLEAR.button.while.the.maximum. and.minimum.temperature.is.shown.on.the.LCD. Wireless Remote Temperature Transmission The.Transmission.frequency.is.433MHz..The.outdoor.transmission.range.is.100. feet.from.the.main.unit..Obstacles,.walls,.etc..will.reduce.the.transmission.range.. Once.the.main.unit.is.plugged.in.or.the.batteries.have.been.installed,.it.will.start.to. receive.signals.for.10.minutes..Once.batteries.are.placed.in.the.remote.unit,.it.will. start.to.transmit.temperature.data.to.the.main.unit.every.3.minutes..Upon.successful. reception,.the.remote/outdoor.temperature.will.be.shown.in.the.remote.tempera- ture.field.on.the.LCD..The.main.unit.automatically.updates.the.remote.reading.in. 3-minute.intervals. Receiver Signal Indicator Icons The.following.icons.indicate.the.signal.transmission.status.on.the.LCD: MI605 IM_v1_0905.indd 12 9/16/05 10:42:07 AM... -
Page 13: Transmission.troubleshooting
1... I f.the.main.unit.does.not.receive.signals.within.the.first.10.minutes,.a.blank.“--”. appears.in.the.OUT.TEMP.field.on.the.LCD..If.at.any.time.during.operation.a. signal.is.not.received.after.five.consecutive.intervals,.blank.“--”.appears..The. remote.unit.is.either.too.far.away.or.there.is.some.interference.between.the. remote.and.the.main.unit..If.this.happens,.bring.the.remote.unit.close.to.the. main.unit.and.press.the.RE-SYNC.button..The.main.unit.will.receive.signals.for. 10.minutes..Move.the.remote.unit.to.a.new.location.closer.to.and.in.direct.line. of.the.main.unit. 2... I f.the.remote.unit’s.batteries.are.running.low,.a.low.battery.icon.appears.in.the. OUT.TEMP.field..Replace.the.batteries. 3... I f.the.display.unexpectedly.goes.blank,.press.the.RE-SYNC.button.on.the.main. unit.to.force.the.main.unit.to.receive.a.signal..If.this.does.not.work,.check.the. following:. •.The.remote.unit.is.still.in.place.. •.The.batteries.in.both.the.remote.unit.and.the.main.unit.are.still.good..Replace.if.necessary.. •.. T he.remote.transmitter.is.within.range.and.the.path.is.clear.of.obstacles.or.other. interference..(See.“Interference”.section.).Shorten.the.distance.if.necessary. Interference Signals.from.other.household.devices.such.as.garage-entry.controls,.doorbells.and. home.security.systems.may.interfere.with.the.temperature-data.transmission.and. may.cause.temporary.reception.failure..This.is.normal.and.does.not.affect.the. general.performance.of.the.unit..The.transmission.and.reception.of.the.temperature. reading.will.resume.once.the.interference.has.stopped. Reset Button Press.the.RESET.button.when.either.the.main.unit.or.remote.transmitter.unit.is.not. operating.normally. MI605 IM_v1_0905.indd 13 9/16/05 10:42:08 AM... -
Page 14: Talking.clock
SNOOZE/ALARM STOP/VOICE.button..If.you.press.this.button.while.the.radio.is. on,.the.radio.turns.off.temporarily..Once.the.update.has.been.played,.the.radio. automatically.resumes.play. Alarm Functions Voice Alarm The.voice.alarm.wakes.you.to.the.following.sequence:.5.seconds.of.beeping,.. followed.by.“Good.morning,”.the.current.time,.outdoor.temperature,.the.weather. report.and.then.the.radio.plays.for.one.hour..If.no.outdoor.temperature.is.recorded. on.the.display,.the.alarm.skips.this.function.. 1..To.select.the.voice.alarm,.slide.the.VOICE/BEEP/OFF.switch.to.VOICE. 2... T o.turn.off.the.voice.alarm.once.it.has.sounded,.press.the.VOICE/BEEP/OFF.. button.to.OFF. Beeping Alarm with Snooze The.beeping.alarm.with.snooze.wakes.you.to.one.minute.of.beeping.that.repeats. every.five.minutes.until.the.alarm.is.turned.off. 1... T o.select.the.beeping.alarm.with.snooze,.slide.the.VOICE/BEEP/OFF.switch.. to.BEEP. 2... T o.activate.the.snooze.function.after.the.alarm.has.sounded,.you.may.. either.wait.for.the.alarm.to.turn.off.after.one.minute.or.you.may.press.the. SNOOZE/ALARM STOP/VOICE.button..In.both.instances.the.alarm.repeats.. every.five.minutes.until.it.is.turned.off. 3..To.turn.off.the.snooze.alarm,.slide.the.VOICE/BEEP/OFF.switch.to.OFF. MI605 IM_v1_0905.indd 14 9/16/05 10:42:08 AM... -
Page 15: Temperature-Sensing.backlight
•.. T o.enable.the.automatic.temperature-sensing.backlight.to.remain.on.at.all.times,. plug.the.main.unit.into.a.wall.outlet.using.the.included.adapter. •.. T o.activate.the.automatic.temperature-sensing.backlight.while.the.unit.is.running. on.battery.power,.press.the.SNOOZE/ALARM STOP/VOICE button..The.backlit. LCD.turns.on.for.3.seconds. General Troubleshooting Problem:.It.is.raining.outside,.but.the.unit’s.forecast.shows.the.sunny.icon. Solution:.The.unit.measures.barometric.pressure.changes.and.gives.forecasts.based. on.up.or.down.trends.over.the.next.six.hours,.not.what.is.going.on.at.that.exact. time..If.the.unit.indicates.it.is.sunny,.but.it.is.raining.outside,.this.means.the.weather. will.improve.over.the.next.six.hours. Problem:.The.weather.icon.has.been.incorrect.for.an.extended.period.of.time. Solution:.The.unit.may.have.been.set.during.a.period.of.high.or.low.barometric. pressure,.so.the.unit’s.barometric.point.of.reference.is.incorrect..Wait.until.a.partly. cloudy.day.and.re-sync.the.remote.unit.with.the.main.unit..(See.“Synchronization. of.Remote.Unit.&.Main.Unit”.section.).The.unit.will.acclimate.to.the.correct.level. of.barometric.pressure. Problem:.The.radio.does.not.work. Solution:.Make.sure.that.the.10.5V.adapter.is.properly.connected.to.the.unit.and. the.wall.outlet. Problem:.The.main.unit’s.LCD.panel.is.faint.or.hard.to.read. Solution:.Adjust.the.brightness.of.LCD.backlight.until.the.readout.is.clear.from.. your.viewpoint. Problem:.The.outdoor.temperature.reading.is.extremely.high.when.the.temperature. is.actually.much.colder. Solution:.The.remote.unit.is.sitting.in.direct.sunlight..Move.it.to.a.shaded,.protected. location. For.additional.questions,.please.call.the.manufacturer:.1-800-526-0954. MI605 IM_v1_0905.indd 15 9/16/05 10:42:08 AM... - Page 17 MI605 IM_v1_0905.indd 17 9/16/05 10:42:08 AM...
- Page 18 Warranty What Is Covered This.warranty.covers.any.defects.in.materials.or.workmanship,.with.the.exceptions.stated.below. How Long Coverage Lasts This.warranty.runs.for.90.days.from.the.date.of.original.purchase. What Is Not Covered This.warranty.does.not.cover.damage.caused.by.misuse.or.use.other.than.as.intended.and.described. in.the.product.instruction.manual,.or.loss.or.damage.to.batteries.or.removable.parts.. What The Sharper Image Will Do The.Sharper.Image.will.repair.any.defects.in.materials.or.workmanship..In.the.event.repair.is.not.. possible,.The.Sharper.Image.will.either.replace.this.product.with.one.of.similar.features.and.price,.or. refund.the.full.purchase.price.of.the.product,.whichever.you.prefer. How to Obtain Service Return.the.product.and.receipt,.along.with.a.brief.explanation.of.the.problem,.to: T.S.I. - Returns Department 2901-A West 60th Street Little Rock, AR 72209 If.you.have.questions.please.feel.free.to.contact.our.customer.service.representatives.at..
