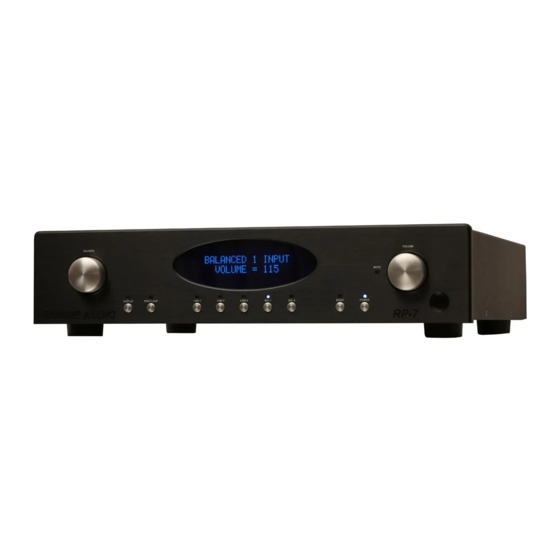

Rogue Audio RP-7 Owner's Manual

Vacuum tube preamplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

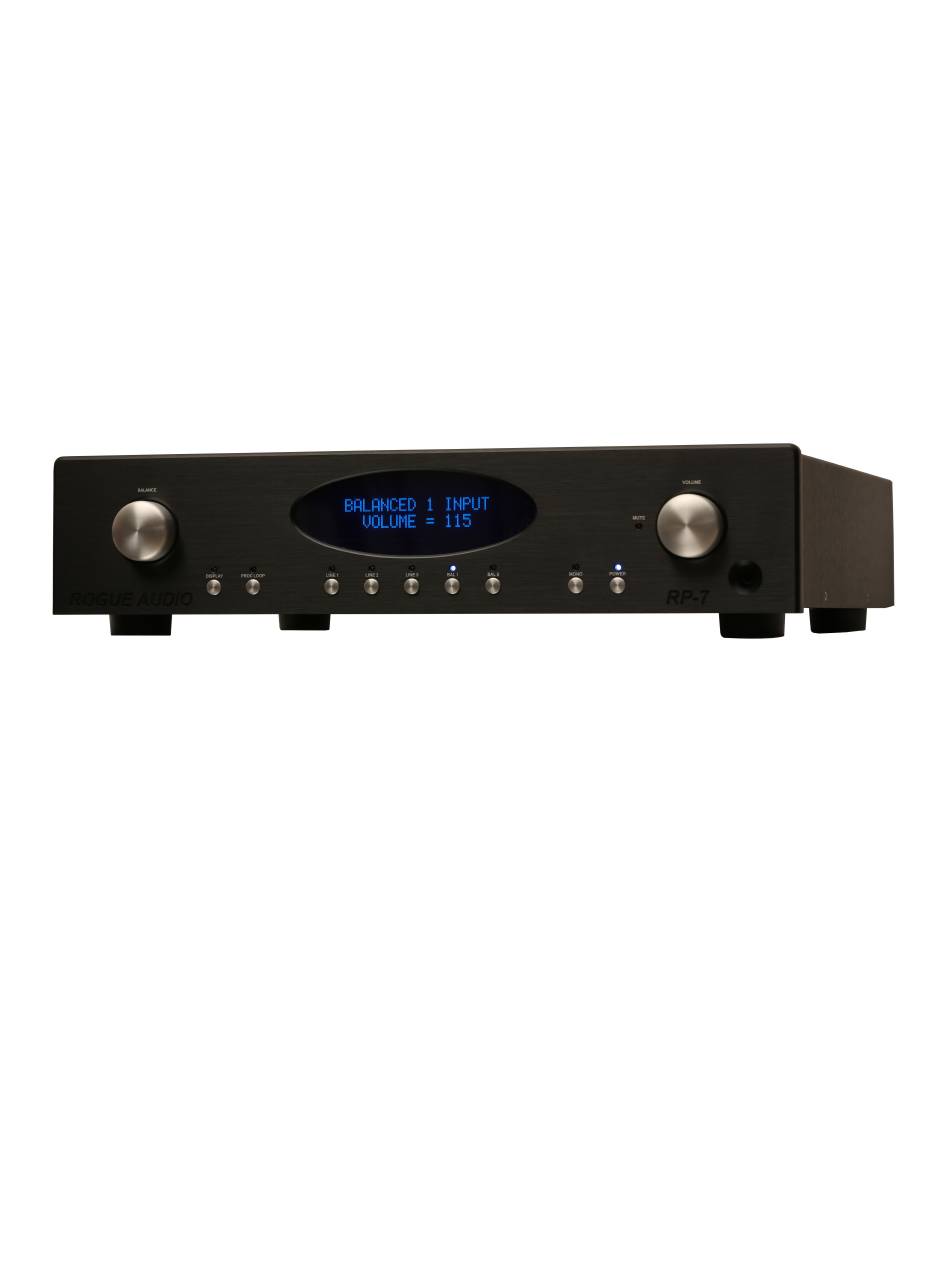

RP-7
Vacuum Tube Preamplifier
Owner's Manual
Rogue Audio, Inc.
3 Marian Lane
Brodheadsville, PA 18322
Issue date: 02/15/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP-7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rogue Audio RP-7

  • Page 1 RP-7 Vacuum Tube Preamplifier Owner’s Manual Rogue Audio, Inc. 3 Marian Lane Brodheadsville, PA 18322 Issue date: 02/15/17...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1) Introduction 2) Unpacking your preamplifier 3) Installing the RP-7 into your system 4) Operation of the RP-7 preamplifier 5) Troubleshooting 5) Registration of your preamplifier 6) Fuse values 7) Specifications 8) Product Registration and Warranty...

  • Page 3: Introduction

    And with the RP-7 preamplifier, you can be sure that you are getting the very best in tube amplification.

  • Page 4: Installing The Rp-7 Into Your System

    INSTALLING THE RP-7 INTO YOUR SYSTEM Place the RP-7 on a flat stable surface with at least 1” of airspace above the preamplifier for ventilation. Do not place any other electronic components or any other objects on top of the preamplifier.
  • Page 5 “out” on the rear of the RP-7 to the inputs on your processor. Connect the outputs of the processor to the jacks labeled “in on the rear of the RP-7. When the processor button is pushed a blue LED below the button will indicate that the source signal is going through the processor.

  • Page 6: Operation Of The Rp-7 Preamplifier

    To do this, simply plug the RP-7 in and turn on the rear power switch. Wait a minute or so and then power on at the front panel. This only needs to be done when the RP-7 has been disconnected from the wall or the rear switch has been turned off.
  • Page 7 0 (min) or 200 (max). Tactile Switches (buttons)  Power - If the RP-7 is turned off, pressing the power button will initiate the start-up sequence and the blue LED above the button will light. If the unit is on, the turn off sequence will begin and the blue LED will be extinguished.

  • Page 8: Troubleshooting

     Check that the power cord connection is secure and that the rear power switch is turned on  Turn off the main power switch on the rear of the RP-7. Wait one minute then turn the rear panel switch back on. Wait 30 seconds then press the power button on the front panel (e.g.

  • Page 9: Fuse Values

    FUSE VALUES 115V version - 1 A slow blow located on left rear of chassis. 230V version - 0.5 A slow blow located on left rear of chassis RP-7 SPECIFICATIONS Tube Complement Four 12AU7/ECC82 tubes Frequency Response 1Hz – 50KHz <0.1%...

  • Page 10: Product Registration And Warranty

    Rogue Audio warrants the vacuum tubes for a period of six months from the date of retail purchase. Any defective parts will be replaced free of charge, excluding shipping and handling.
