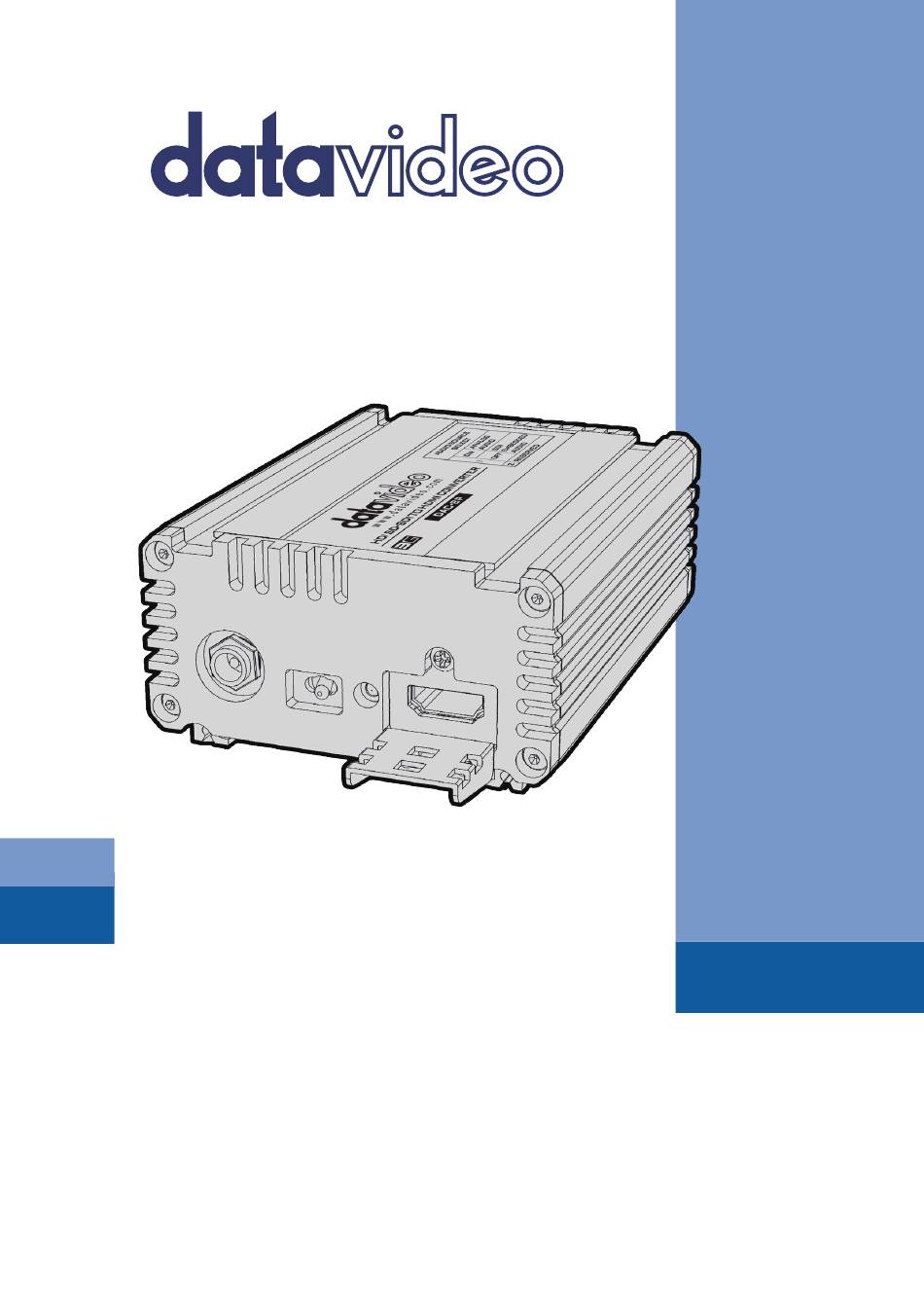

- Page 1 SDI TO HDMI CONVERTER DAC-8P Instruction Manual w w w . d a t a v i d e o . c o m...
-
Page 2: Table Of Contents
SERVICE & SUPPORT .............. 12 Disclaimer of Product & Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. -
Page 3: Fcc Compliance Statement
This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. - Page 4 10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes. 11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock.
-
Page 5: Warranty
Your statutory rights are not affected. Three Year Warranty • All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase. -
Page 6: Disposal
Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 7: Front Panel
Front Panel HD/SD - SDI Input & Output (bypass) SDI provides video signals for professional applications and allows long distance signal transmission. Left BNC connector: HD/SD-SDI Input Right BNC connector: Loop Thru Output RCA Input Two channels of Unbalanced L / R Audio input Note: One of SDI Audio or RCA Audio input is embedded into HDMI Signal... -
Page 8: Rear Panel
Mini Switch The mini switch selects audio source. AUDIO SOURCE SELECT ANALOG AUDIO CH 1 SDI EMBEDDED AUDIO CH 2 RESERVED Rear Panel DC In Socket Connects the supplied 12V/ 500mA PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket. - Page 9 Power Switch Switches the power On / Off. HDMI Output HDMI digital signal output port...
-
Page 10: Specifications
Specifications Input Interface 1x HD/SD-SDI input 1x HD/SD-SDI output (Loop Thru) Outputs Interface 1x HDMI (V1.2) output 720x480 Interlace 720x576 Interlace Supported HDMI 1280x720 / 50 / 59.94 / 60 Hz Progressive Output Formats 1920x1080 / 50 / 59.94 / 60 Hz Interlace 1920x1080 / 50 / 59.94 / 60 Hz Progressive SMPTE 292 standard complied with •... - Page 11 Humidity 10% to 90% (non condensing) Dimensions 105mm (W) x 120mm (D) x 38mm (H) Weight 0.5 Kg Power DC 12V / 500mA (4W)
-
Page 12: Service & Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to DATAVIDEO WORLDWIDE OFFICES common questions, support requests or contact your local office below.
