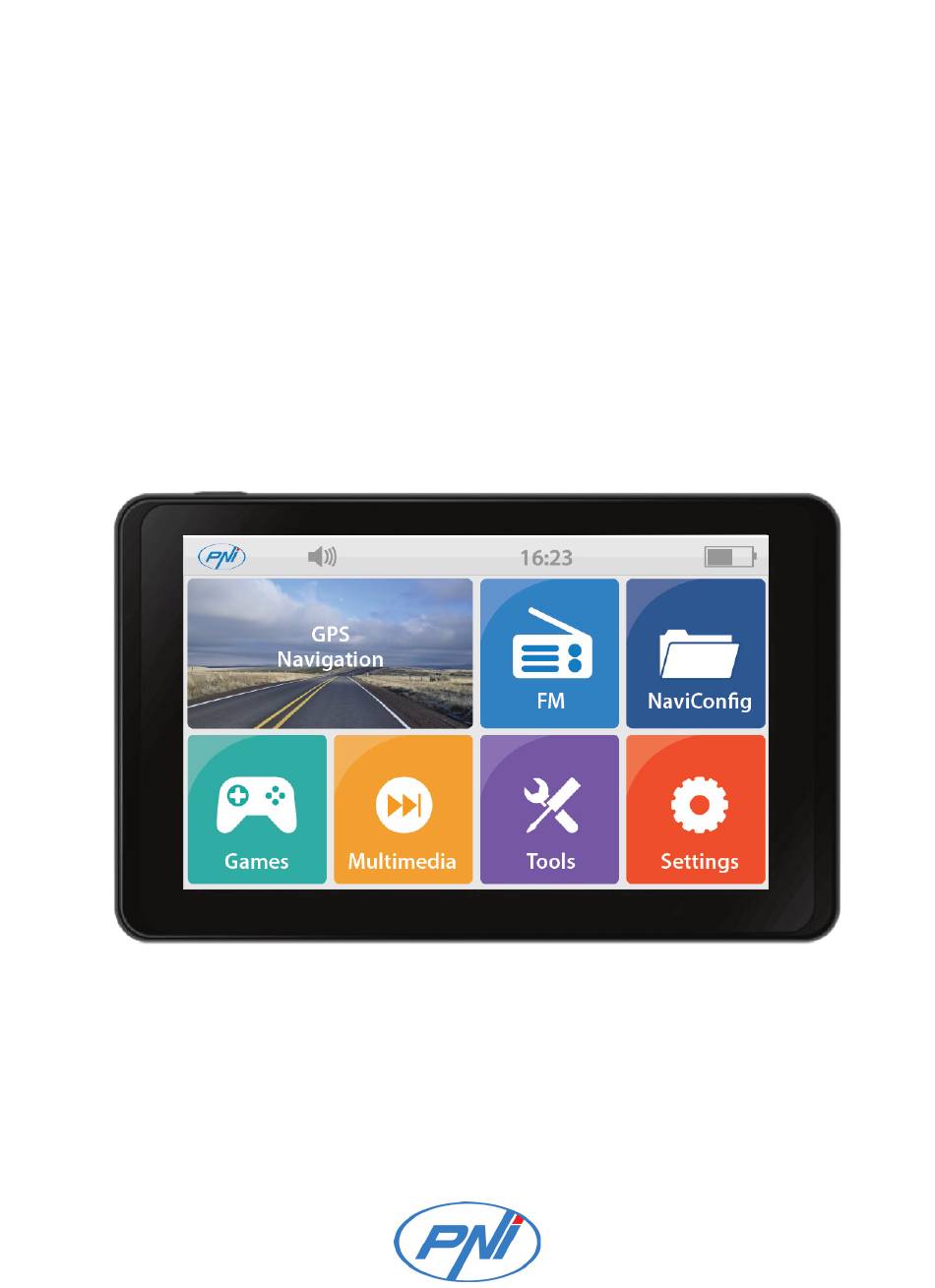

  • Page 1 PNI T500 5” portable navigation system 800 MHz, 256M DDR3, 8GB, FM transmitter...
  • Page 2 2.Welcome: PNI T500 is mainly used for its GPS function. It also supports audio play, video play, photo browsing, e-book reading. You may use the GPS navigator anytime anywhere, for example while driving, walking or cycling.
  • Page 3 4. Appearance: 1 - LED 2 - Stilus 3 - Speaker 4 - On/Off key5 - Mufa casti 6 - Mini USB port 7 - Micro SD slot 8 - Reset key 5. Basic use: 5.1 Power Supply & Charging: Our GPS can be powered by the built-in battery or external power supply.

  • Page 4: Restarting The System

    Charging by Car Charger: Plug one terminal of the car charger into the USB port on the left side of the GPS navigator and the other to the charging port to supply power and charge the GPS navigator. [Note] Plug in the car charger after the automobile is started to avoid damage due to current surge.
  • Page 5 5.4 Fixing the GPS Navigator with mounting kit: The mounting kit is composed of a back splint and a bracket. To use the GPS navigator in an automobile, fix it on the dashboard under the front windshield. 5.5 Using Micro SD Card: Copy mapping applications, map data and media files in a Micro SD card.
  • Page 6 Functions Navigation - Tap to enable navigation function FM Transmitter - GPS and car radio can connect each other by FM transmitter NaviConfig - Click NaviConfig to set navi path to map software Multimedia - Including Music player, Movie player, Photo viewer, E-book, Flash, Games, RM »...

  • Page 7: Music Player

    Exit the FM Setting Save current setting. Tick in the box to enable FM function. Drag the slide block and choose between 88.00 MHz-108.00 MHz 6.2 Multimedia Tap this icon in the main menu go into multimedia interface shown as below: 6.2.1 Music Player Tap this icon in the main menu go into multimedia interface...
  • Page 8 Close the music player Minimize the music player and return to the Media interface Continue playing the paused/ stopped music Pause the music being played Stop the music being played. Select sequence, random or cycle play Play the previous music Play the next music...
  • Page 9 Drag it to turn down or up the volume Drag it leftward or rightward to play from a previous or future moment Enter it to select music to play Display the run time Enter the equalizer in the interface Music Play to enter the Music list shown as below.

  • Page 10: Movie Player

    Add a piece of music on the left list to the play list on the right Add all the music on the left list to the play list on the right Select one piece of music in the play list and tap the icon to delete it.
  • Page 11 Close the video player Play the previous film Continue playing the paused/ stopped music Play the next film Stop the film being played. Enter it to select a film to play Drag the sliding block to play Volume Display the play time and the music duration Tap this icon .

  • Page 12: Photo Viewer

    Close the video folder Drag the sliding block upward/ downward to view all the files inside the folder. Film name and its format 6.2.3 Photo Viewer Tap this icon in the photo viewer interface as below: View the preview photo in the folder View the next photo in the folder.
  • Page 13 Scale up current photo Scale down current Rotate current photo 90°clockwise Cycle play all the photos in the folder from Enter the photo folder to select current photo Close the browser and return to the multimedia interface Tap this icon .
  • Page 14 6.2.4 E-Book Tp this icon . in the Multimedia interface to enter the reader interface shown as below: Current file name and format Close the reader Drag the sliding block upward/ downward to view all content of the e-book Enter the e-book folder to select an e-book to read downward to view all content of the e-book Read the previous page Read the next page...
  • Page 15 Select partial text and tap the icon to create a bookmark. Enter the bookmark list Current page/ total pages Tap this icon in the e-book reader interface to enter the e-book folder shown as below: Close current folder Return to the previous folder Drag the sliding block upward/ downward to view all TXT files The file name and format...
  • Page 16 6.2.5 Flash Tap this icon in the Multimedia interface shown as below to play swf files: 6.3 Games Tap this icon in the Main menu interface go into Games shown as below: Choose one of the three preinstalled games.
  • Page 17 6.4 Tools Tap this icon in the main menu go into tools interface shown as below: 6.4.1 Calculator Tap this icon go into Calculator this tool shown as below:...
  • Page 18 6.4.2 Unit Tap this go into unit exchange tool shown as below: 6.4.3 GPS info Tap this go into gps receive satellite signal testing interface as below:...
  • Page 19 to reset GPS satellite receiver as below 6.5 Settings Tap this icon go into settings interface shown as below: 6.5.1 Volume Tap this icon go into volume settings interface shown as below:...
  • Page 20 Exit the volume setting Ten volume grades available (0 - MUTE) Tap it to enable the function Tap to to select power-on music or disable it. 6.5.2 Backlight Tap this icon go into backlight settings interface shown as below:...
  • Page 21 Exit the backlight setting Drag to turn up the backlight Auto backlight shutoff after service stop for a period 6.5.3 Language Tap this icon go into language settings interface shown as below: Use the arrows to select the desired language 6.5.4 Date/Time Tap this icon to go into Date/Time settings interface shown...
  • Page 22 In the above interfacetap the arrows to set the year, month, day, hour and minute. Note: Time format options are 12-hour and 24-hour. 6.5.5 Calibrate Tap this icon to go into calibrate touch screen interface as below:...
  • Page 23 Click Yes and the following calibration interface is prompted. Click the center of cross cursor with the touch pen as the cursor shifts on the screen. 6.5.6 Desktop Tap this icon go into desktop interface as below: Click Yes. The following Windows interface will show up:...

  • Page 24: System Info

    Click Exit to restart the device. 6.5.7 System info Tap this to go into gps device system information interface as below: Tap this icon go into the 2nd settings menu as below:...
  • Page 25 6.5.8 USB Tap this icon to go into USB settings as below: Click MASS STORAGE to make usb in data transfer status Click MS ACTIVESYNC to make usb in power recharge status.
  • Page 26 6.5.9 Factory Reset Tap this icon to go into warning interface as below: If you click choose Yes, your gps device will load back to factory default settings, click choose No to give up. 6.6 Navi Config Tap this icon .

  • Page 27: Technical Specifications

    Technical specifications: Processor MSB 2531 ARM Cortex A7 800MHz Operating system WinCE 6.0 Display 5.0” TFT touch screen 800 x 480 pixels. Memory 256MB DDR2 8GB NAND FLASH microSD card (max 32GB)-not included Power supply DC 5V~1.5A Functions GPS navigation, FM transmitter,Multimedia,E-book miniUSBx1 SD card slot...
  • Page 28 Sistem de portabil PNI T500 5” 800 MHz, 256M DDR3, 8GB, FM transmitter...

  • Page 29: Caracteristici Principale

    » Fiti atenti cand operati pe navigator in timp ce conduceti, neatentia in trafic poate cauza accidente rutiere grave. 2.Introducere: Dispozitivul PNI T500 este folosit in principal pentru functia de navigare prin GPS, insa acesta are si alte functii precum redarea fisierelor audio/video, vizualizare imagini etc. Il puteti folosi aproape oriunde si oricand, atunci cand conduceti, mergeti pe jos, cu bicicleta sau cand asteptati la o intalnire.

  • Page 30: Descriere Produs

    4. Descriere produs: 1 - LED 3 - Difuzor 4 - Tasta inchidere / deschidere dispozitiv 5 - Mufa casti 6 - Port mini USB 7 - Slot card micro SD 8 - Tasta Reset 5. Instructiuni de utilizare: 5.1 Alimentarea dispozitivului: Navigatorul poate fi alimentat astfel: de la acumulatorul intern, de la calculator prin cablul de date sau in masina la bricheta de 12V/24V.

  • Page 31: Pornirea / Oprirea

    Incarcarea dispozitivului de la bricheta masinii: » Conectati un capat al alimentatorului auto la mufa miniUSB a navigatorului GPS » Conectati celalalt capat al alimentatorului la bricheta autovehiculului ATENTIE: Va rugam sa conectati alimentatorul la bricheta dupa pornirea autovehiculului, pentru a evita eventuale daune provocate de curentul instabil la momentul pornirii motorului.
  • Page 32 5.4 Montarea suportului de parbriz: Fixati aparatul pe parbrizul autovehiculului folosind suportul inclus in pachet, pentru a-l putea utiliza in timpul mersului. 5.5 Utilizarea unui card de memorie microSD: Daca doriti redarea fisierelor audio/video sau vizualizarea imaginilor de pe dispozitivul GPS puteti stoca fisierele dorite pe un card microSD.
  • Page 33 Functii Navigation - acces harta navigatie FM Transmitter - GPS si radioul masinii se pot conecta prin aceasta functie NaviConfig - setare cale soft navigatie Multimedia - player fisiere audio, video si foto, e-book, jocuri, flash » Music player - redare fisiere WMA9, MP3, WAV »...
  • Page 34 Iesire din FM Transmitter Salvare setari curente. Daca este bifata aceasta casuta, functia FM este activa. Alegeti frecventa dorita, intre 88.00 MHz-108.00 MHz 6.2 Multimedia Apasati iconita . Va aparea urmatoarea interfata: 6.2.1 Music Player (Redare fisiere audio) Apasati iconita .
  • Page 35 Inchide player-ul muzical Ascunde player-ul muzical. Reintoarcere la interfata Multimedia Redare fisier audio Pauza redare fisier audio Stop redare fisier audio Redare cazuala sau ciclica Redare fisierul anterior Redare fisierul succesiv...
  • Page 36 Bara volum Bara progres redare Lista fisiere audio Cronometru redare fisier audio Egalizator Apasati pentru a intra in interfata Music list. Inchide Music List Navigare prin toata lista...
  • Page 37 Adauga fisier in lista de redare Adauga toate fisierele in lista de redare Sterge fisierul selectat Sterge toate fisierele din lista de redare 6.2.2 Movie Player (Redare fisiere video) Apasati iconita . Va aparea urmatoarea interfata:...
  • Page 38 Inchide player-ul video Reda fisierul anterior Reda fisierul selectionat Reda fisierul urmator Pauza redare fisier Lista fisiere video Bara progres redare video Bara volum Cronometru redare fisier video Apasati iconita . Va aparea urmatoarea interfata:...
  • Page 39 Inchideti interfata Video List Navigare prin toata lista Nume fisier si format 6.2.3 Photo Viewer (Redare fisiere imagine) Apasati iconita . Va aparea urmatoarea interfata: Redare imaginea anterioara Redare imaginea succesiva...
  • Page 40 Micsoreaza imaginea Mareste imaginea Rotire imagine Redare automata ciclica a tuturor imaginilor din director Intra in director pentru a selecta o imagine Inchide interfata de redare foto Apasati iconita . Va aparea urmatoarea interfata: Iesire din director Vizualizeaza toate fotografiile din director Intoarcere la directorul anterior...
  • Page 41 6.2.4 E-Book (Redare fisiere TXT) Apasati iconita . Va aparea urmatoarea interfata: Numele si formatul fisierului curent Inchide fisierul curent Navigare prin fisier Intrare in director Citeste pagina anterioara Citeste pagina urmatoare Setare tema, dimensiune si culoare font.
  • Page 42 Selecteaza text si creaza bookmark Intra in lista de bookmark-uri Pagina curenta/Numarul total de pagini Apasati iconita . Va aparea urmatoarea interfata: Inchide directorul curent Inapoi la directorul anterior Vizualizare toate fisierele din director Nume si format fisier...
  • Page 43 6.2.5 Flash (Redare fisiere SWF) Apasati iconita . Va aparea urmatoarea interfata: 6.3 Games (Jocuri) Apasati iconita . Va aparea urmatoarea interfata: Alegeti unul din cele 3 jocuri preinstalate.
  • Page 44 6.4 Tools (Unelte) Apasati iconita . Va aparea urmatoarea interfata: 6.4.1 Calculator Apasati iconita . Va aparea urmatoarea interfata:...
  • Page 45 6.4.2 Unit (Convertor valutar) Apasati iconita . Va aparea urmatoarea interfata: 6.4.3 GPS info Apasati iconita . Va aparea urmatoarea interfata:...
  • Page 46 Apasati pentru a reseta receptorul GPS. 6.5 Settings (Setari) Apasati iconita . Va aparea urmatoarea interfata: 6.5.1 Volum Apasati iconita . Va aparea urmatoarea interfata:...
  • Page 47 Iesire din interfata volum Disponibile 10 trepte de volum (0 - MUTE) Apasati pentru a activa sunetul la atingerea tastelor Activeaza sau dezactiveaza muzica de deschidere dispozitiv 6.5.2 Backlight (Lumina de fundal) Apasati iconita . Va aparea urmatoarea interfata:...
  • Page 48 Inchide interfata Lumina de fundal Regleaza intensitatea luminii de fundal Regleaza timpul de inchidere a luminii de fundal 6.5.3 Language (Setare limba sistem) Apasati iconita . Va aparea urmatoarea interfata: Folositi sagetile stanga/dreapta pentru a alege limba dorita 6.5.4 Date/Time (Setare data/ora) Apasati iconita .
  • Page 49 Folositi sagetile pentru a seta anul, luna, ziua, ora si minutele. De asemenea puteti alege formatul 12H sau 24H. Succesiv, selectati fusul orar. 6.5.5 Calibrate (Calibrare) Apasati iconita . Va aparea urmatoarea interfata:...
  • Page 50 Click pe Yes. Va aparea interfata de calibrare. Faceti click cu stilusul pe centrul crucii de fiecare data cand aceasta apare pe ecran. 6.5.6 Desktop (Accesare Windows) Apasati iconita . Va aparea urmatoarea interfata: Faceti click pe Yes. Va aparea urmatoarea interfata Windows:...
  • Page 51 Click pe Exit pentru a reporni dispozitivul. 6.5.7 System info (Informatii sistem) Apasati iconita . Va aparea urmatoarea interfata: Apasati iconita pentru a merge in pagina urmatoare:...
  • Page 52 6.5.8 USB Apasati iconita . Va aparea urmatoarea interfata: MASS STORAGE - pune dispozitivul in starea de transfer date MS ACTIVESYNC - pune dispozitivul in starea de incarcare...
  • Page 53 6.5.9 Factory Reset (Resetare) Apasati iconita . Va aparea urmatoarea interfata: Clck Yes pentru a trece dispozitivul pe setarile din fabrica. 6.6 Navi Config (GPS Navigatie) Apasati iconita . Va aparea urmatoarea interfata: Alegeti calea softului de navigatie...

  • Page 54: Specificatii Tehnice

    Specificatii tehnice: Procesor MSB 2531 ARM Cortex A7 800MHz Sistem de operare WinCE 6.0 Ecran 5.0” TFT touch screen 800 x 480 pixels. Memorie 256MB DDR2 8GB NAND FLASH suporta card microSD (max 32GB)-nu este inclus Alimentare DC 5V~1.5A Functii Navigatie GPS,FM transmitter,Multimedia,E-book miniUSBx1...
