Backyard Discovery
3305 Airport Drive
Pittsburg, KS 66762
1-800-856-4445
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
www.swingsetsonline.com (you will also find any updates on
assembly instructions and information to order replacement parts)
Features the
Save this assembly manual for future reference in the event that
INS-6915-A-PLANTERS WITH BENCH-ENG 08/18/15

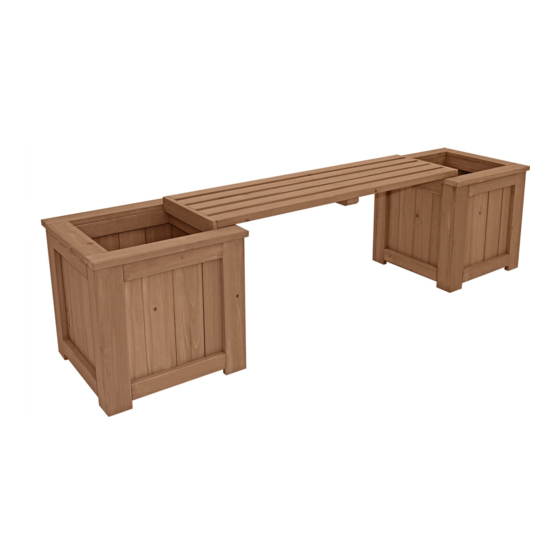

PLANTERS WITH BENCH
Register your new (Outdoor Product) on-line @
you need to order replacement parts.
OUTDOOR PRODUCT
MODEL: #6915
fastening system.
Made in China
Advertisement
Summary of Contents for Backyard 6915
- Page 1 (you will also find any updates on assembly instructions and information to order replacement parts) Features the fastening system. Save this assembly manual for future reference in the event that you need to order replacement parts. Made in China INS-6915-A-PLANTERS WITH BENCH-ENG 08/18/15...
- Page 2 STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.swingsetsonline.com ¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA! La tienda donde realizó...
- Page 3 Owner’s Manual Outdoor Product Dear Customer: Please read entire booklet completely before beginning the assembly process. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Recreational Park, or any similar Commercial Application.
- Page 4 Owner’s Manual Outdoor Product Maintenance Instructions: 1. Check all nuts and bolts twice monthly during the usage season and tighten as required. (But not so tight that you crack the wood) It is particularly important that this procedure be followed at the beginning of each season. 2.
- Page 5 Next, read the assembly manual and get the tools ready for the job as recommended in the manual. If the assembly manual is lost or misplaced a new one can be printed from Backyard Discovery’s website: www.swingsetsonline.com...
-
Page 6: Tools Required For Installation
Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Square) (Cordless Drill or Electric Drill) (Tape Measure) (Phillips Screw Driver) (Drill Attachments: (Rubber Mallet - Optional) Phillips Head) (An Adult w/ an Adult Helper) - Page 7 Basic Setup Dimensions 1'-4 7/8" 1'-4 7/8" 1'-0" 11 1/2" 3'-5 1/4" 11 1/2" 1'-4 3/4" 11 15/16" 5'-9 1/16" 1'-7" 1'-5 1/2" 1'-4 7/8" 2'-11 15/16" Important Assembly Notes 1) While assembling unit, take time before and after each phase to make sure unit is level. If unit is not level, assembly will be difficult and improper assembly may result.
-
Page 8: Parts Identification
Parts Identification Wood Components (NOT TO SCALE) P1 - BENCH RAIL - W4L05816 1 3/8"x1 3/8"x40" (36x36x1016) M1 - BENCH END CAP - W4L05817 5/8"x3 3/8"x12" (16x86x304) N1 - BENCH CLEAT - W4L05818 5/8"x2 3/8"x11 7/8" (16x60x303) N2 - LONG TOP TRIM - W4L05819 5/8"x2 3/8"x16 7/8"... - Page 9 Parts Identification Hardware (65) VT - SCREW PFH 8x1-1/2 BLK - H100200 (17) - SCREW PFH 8x1 1/4 BLK - H100387 (35) VV - SCREW PWH 8x5/8 BLK - H100202 Parts Identification Accessories (NOT TO SCALE) (16) - 90° L-BRACKET - BLK - A4M00555...
- Page 10 P1 - BENCH RAIL - W4L05816 1 3/8"x1 3/8"x40" (36x36x1016) N1 - BENCH CLEAT - W4L05818 M1 - BENCH END CAP - W4L05817 5/8"x2 3/8"x11 7/8" (16x60x303) 5/8"x3 3/8"x12" (16x86x304) STEP 1 SCREW PFH (17) SCREW PFH 8x1-1/2 BLK 8x1-1/2 BLK (5 PLCS) SCREW PFH 8x1-1/2 BLK (7 PLCS)
- Page 11 WP2 - SIDE PANEL - W2A01787 FP1 - FLOOR PANEL - W2A01788 1 1/8"x14 5/8"x15" (27x380x430) 1 3/4"x14"x14 1/8" (45x354x358) STEP 2 REPEAT PROCESS TO BEGIN THE ASSEMBLY OF THE SECOND FLOWER BOX. SCREW PFH (12) 8x1-1/2 BLK SCREW PFH 8x1-1/2 (6 PLCS) CENTERED...
- Page 12 WP1 - FRONT & BACK PANEL - W2A01786 (16) - 90° L-BRACKET - BLK - A4M00555 1 1/8"x16"x16 7/8 (27x405x430) STEP 3 REPEAT PROCESS TO CONTINUE THE ASSEMBLY OF THE SECOND FLOWER BOX. ALIGN BRACKET WITH HOLES LOCATED IN PANEL. SCREW PWH (32) 8x5/8 BLK...
- Page 13 N3 - SHORT TOP TRIM - W4L05820 N2 - LONG TOP TRIM - W4L05819 5/8"x2 3/8"x12" (16x60x305) 5/8"x2 3/8"x16 7/8" (16x60x429) S1 - SHORT ATTACHMENT BOARD - W4L05821 S2 - LONG ATTACHMENT BOARD - W4L05822 1"x1"x12 1/8" (24x24x309) 1"x1"x13 7/8" (24x24x353) STEP 4 BUILD (4) OF EACH.
- Page 14 STEP 5 ASSEMBLE (2) RIM ASSEMBLIES. SCREW PFH 8x1-1/2 BLK SCREW PFH (4 PLCS) 8x1-1/2 BLK STEP 6 REPEAT PROCESSES TO FINISH THE ASSEMBLY OF THE SECOND FLOWER BOX. SCREW PFH (24) 8x1-1/2 BLK SCREW PFH 8x1-1/2 BLK (12 PLCS)
- Page 15 STEP 7 INSERT BENCH ASSEMBLY INTO BOTH FLOWER BOXES, AS SHOWN. FLOWER BOX BENCH ASSEMBLY FLOWER BOX...
- Page 16 Limited Warranty. In addition, Backyard Discovery will replace any parts within the first 30 days from date of purchase found to be missing from or damaged in the original packaging.
