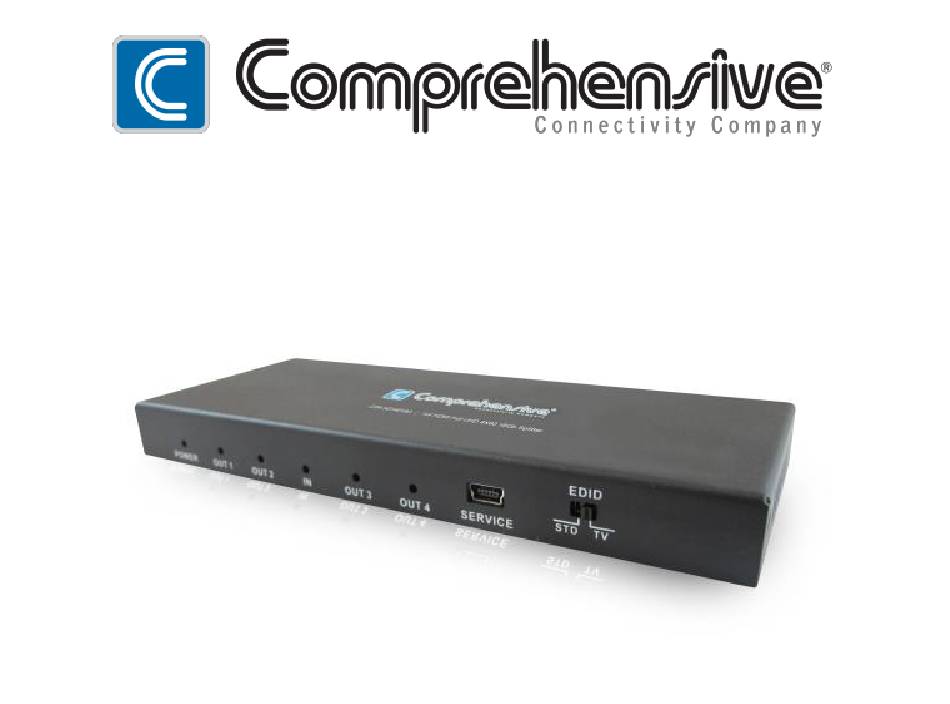

- Page 1 CDA-HD14018G 1x4 HDMI Full UHD 4K60 18Gb Splitter (YUV:444) User manual V1.0ep...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. I. Introduction This 1 by 4 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to four HDMI outputs.
- Page 3 to 4k2k@60Hz with 12bit YCBCR 4:4:4; Support 3D frame sequential video format up to 1080p@60; Support high resolution VESA mode video format up to QSXGA@60Hz; Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio; Supports smart EDID control; III. Package UHD 1x4 HDMI Splitter ------------------------------------------------------------------ 1PC 5V2A DC Power adapter ----------------------------------------------------------------- 1PC Operation Manual ------------------------------------------------------------------------- 1PC...
- Page 4 Output Resolution 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz ESD Protection Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5V/2A DC (US/EU standards, CE/FCC/UL certified) Dimensions 63 mm (W) × 163 mm (D) × 16 mm (H) Weight 275 g Chassis Material Metal...
- Page 5 V. Operation controls and Functions Front Panel & Rear Panel POWER LED: Blue LED will illuminate when the device is connected with power supply. OUT LED: Blue LEDs will light up to indicate which HDMI outputs are connected to an active TV/display/monitor.
- Page 6 SERVICE: Manufacturer use only. EDID STD: When in “STD” mode, the unit will use its own built-in EDID settings. In this mode, the video output will be set to 1080p@60Hz and the audio output at LPCM 2CH Stereo. Use this mode if there are display problems in TV Mode. EDID TV: When in 'TV”...
- Page 7 VI. Application Example 80 Little Falls Road, Fairfield, NJ 07004 l Phone: 800.526.0242 l Fax: 201.814.0510 l www.ComprehensiveCo.com...
