Summary of Contents for MobiPrint MPT9BT

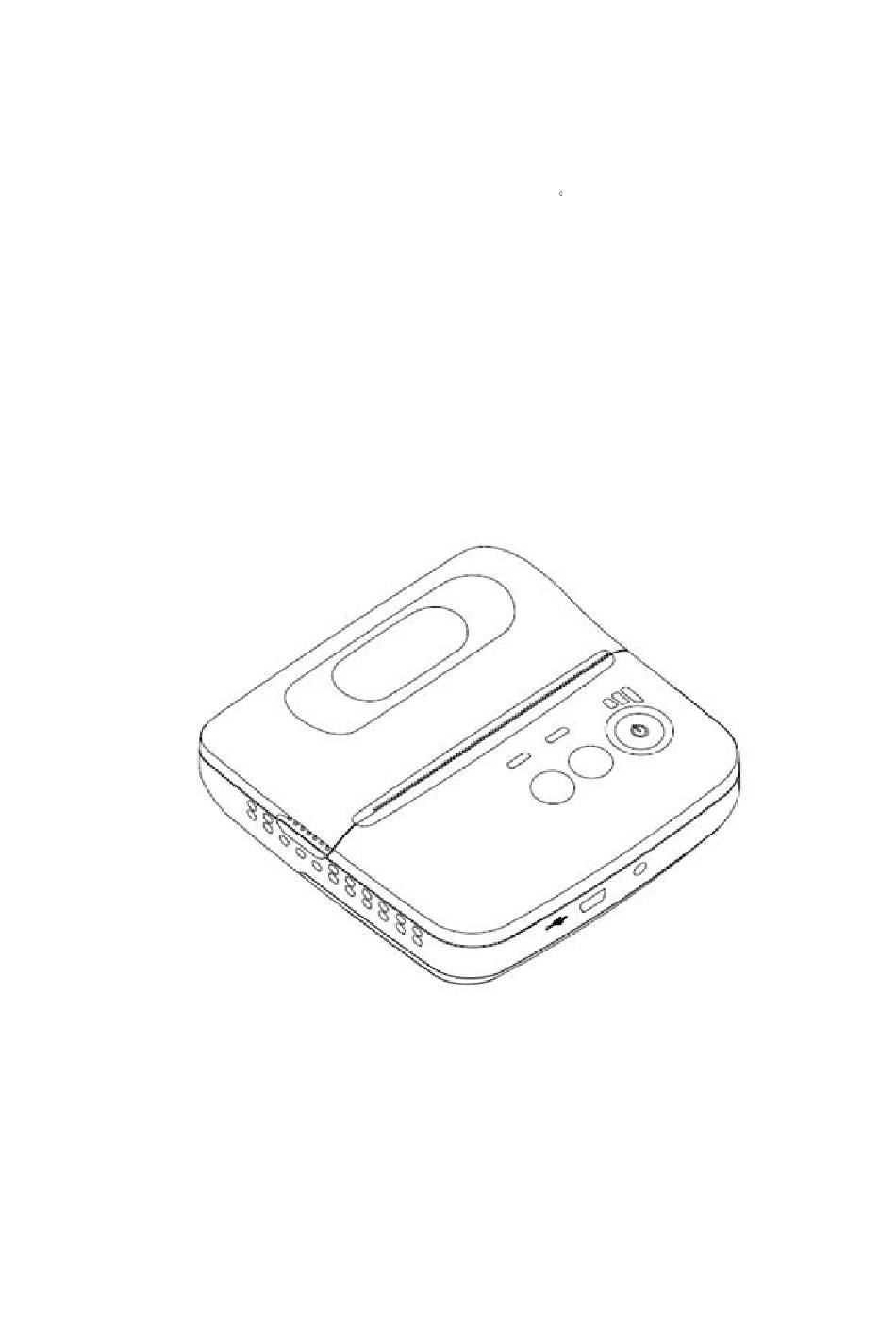

- Page 1 MobiPrint MP T9BT Portable Micro Printer User’s Manual...
-
Page 2: Table Of Contents
Content Notice........................3 Notice on Safety....................3 Notice of Using..................... 3 Notice of Storing ....................3 Chapter1 Outer Appearance and Model No............4 1.1 Outer Appearance....................4 1.2 Model No......................5 Chapter2 Characteristic Capability................. 5 2.1 Printing Capability....................5 2.2 Other Capability....................6 Chapter3 Operation Method..................6 3.1 Using Preparation....................6 3.1.1 Battery Installation................. -
Page 3: Notice
NOTICE Please read this manual carefully before using the printer! Notice of Safety Be sure to use the specified battery and power supply provided by our company. Otherwise it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. Don’t put battery into the fire, don’t disassemble or heat the battery, don’t be short circuit, it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. -
Page 4: Chapter1 Outer Appearance And Model No

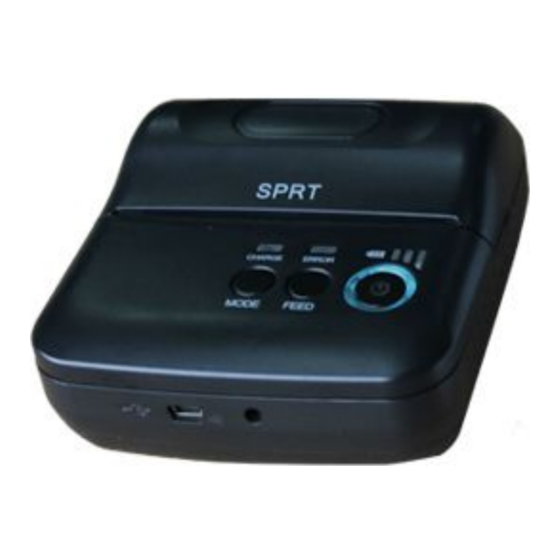

Chapter 1 Outer Appearance and Model No. 1.1 Outer Appearance [CHARGE]: Battery Charging Indicator [ERROR]: Error Indicator [FEED]: Feed Button [MODE]: Mode Button 1.2 Model No. Support USB Interface T9 BT Support USB and Bluetooth Interface Chapter 2 Characteristic Specification 2.1 Printing Specification Printing Method Thermal line... - Page 5 Resolution 8 dots/mm, 576dots/line Effective Printing Width 72mm Character Set ASCII,GB2312-80(Chinese) Character Printing Font ANK: 12 x 24Chinese: 24 x 24 Character per Line Paper Type Thermal paper Paper Width 79.5± 0.5mm Paper Spec Paper Roll Diameter Max: 40.0mm Roll Core Inner Diameter 13mm(min.) Paper Thickness 0.06 to 0.07mm...
-
Page 6: Chapter3 Operation Method
2.2 Other Specification ● Paper Loading Method: drop-in easy loading ( please refer to details in 3.1.2 Paper Roll Installation). ● Black Mark Location: available(details please see 4.2 pre-printing black mark manual). ● Paper End Detection: when paper is out, the ERROR Indicator will constant on lighting, The buzzer rings when it is printing, and it will stop printing. -
Page 7: Paper Roll Installation
3.1.2 Paper Roll Installation 1. Hold both sides of the paper case cover, and open it. 2. Pay attention to use paper that effective printing side is outside in the printing paper face when you enchase the new paper roll. 3. -
Page 8: Basic Function Usage
3.2Basic function usage 3.2.1 Switch On Press【POWER】button, the power indicator is on, about 1 second later you will hear ‘one low one high ’prompt tone. The printer will turn into work mode when loosen the 【 POWER】 button. The battery indicator shows power of the battery. 3.2.2 Switch Off Under status of switch on ,the printer will send out the prompt tone of ‘one low one high ’... -
Page 9: Printer Parameters Setting
This function may set some simple printing parameters. 该功能是设置打印的一些简单参数 Entering parameter setting: Switch off, then hold down the 【FEED】 button and press the 【POWER】button at the same time. Then loosen the【POWER】button and 【MODE】 button when you hear ‘one low one high ’prompt tone. The printer turns into the parameters setting mode. -
Page 10: Bluetooth Address Binding
printer to print by the Bluetooth interface.T9 printer is compatible with Bluetooth2.0 standard. Power class is CLASS 2, effective communication distance is 10meters. The Bluetooth of the printer belongs to the slave device. The initial name of the printer is T9 printer, the initial password is ‘1234’;... - Page 11 Light constant on: printer is on, Bluetooth is with disconnect status Light flashing: printer is on, Bluetooth is with connection status 【CHARGE】indicator Blue light constant on: charging is completed; Red light constant on: in charging; Blue and red lights on: there are some mistakes, please check whether the battery should be good contact or not, and the temperature is normal or not.
- Page 12 Memory The printer can’t work normally after the memory need to be read-write calibration Over voltage The voltage of power is too high Owe voltage The voltage of power is too low The CPU The CPU execution to the wrong execution address Temperature...
-
Page 13: Chapter4 Other Information
Chapter 4 Other Information 4.1 Command Programming Manual <T9 Technical Manual> is a technical manual for engineer to develop printer utility, and users can claim our company for it. This manual including the technical description of hardware interface ( Bluetooth, USB interface ), technical documentation of printing control command set, and others such as how to print black mark and locate by it. - Page 14 paper is>65%) HPS: it is the distance between edges of black mark and loading position. 4.5mm≤Hps≤6.5mm...
