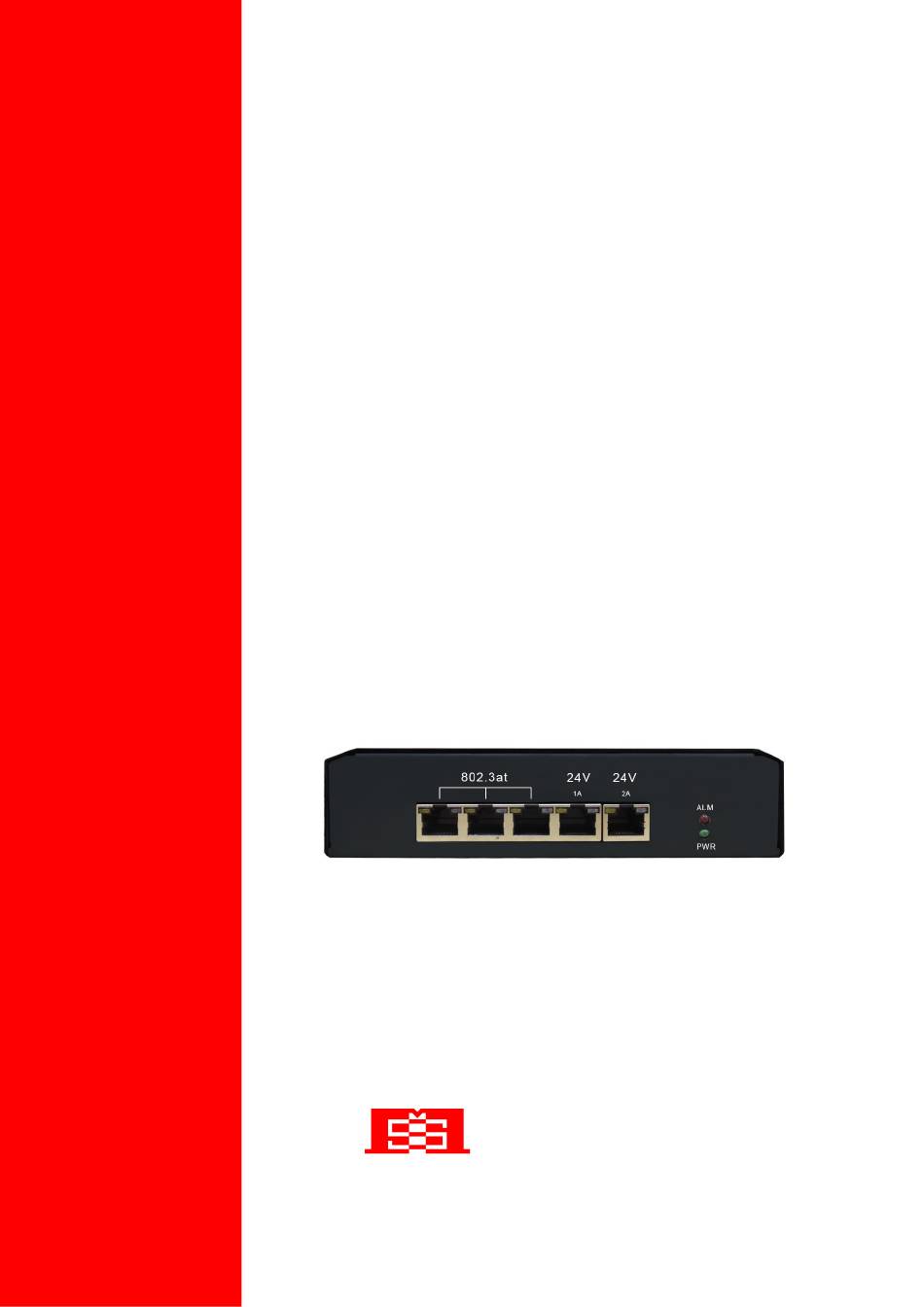

PSE-SW5G2280HM
5 Port PoE Switch
Combo 56V+24V
USER'S MANUAL
MSTRONIC CO., LTD.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSE-SW5G2280HM and is the answer not in the manual?

Questions and answers

Summary of Contents for MSTRONIC PSE-SW5G2280HM

  • Page 1 PSE-SW5G2280HM 5 Port PoE Switch Combo 56V+24V USER’S MANUAL MSTRONIC CO., LTD.

  • Page 2: General Information

    LED ON when DC power input has valid power supplied. LED ON when the following warning happens. *24V power output under voltage (Vout<16V) *24V power output over voltage (Vout>33V) *24V PoE over current (1.25A/P4 or 2.5A/P5) No power supplied. MSTRONIC CO., LTD.
  • Page 3 For PoE operation, make sure your power supply may offer at least 200W for PoE port. Total power of PoE is 35W x3 (802.3at), 24W x1 (24V/1A) and 48W x1 (24V/2A). Powered on rear terminal, please make sure the input current don’t over 15Amp (internal fuse specification) MSTRONIC CO., LTD.
  • Page 4 The PoE switch supports one RJ-45 uplink (port 1 with 802.3at PSE) and four RJ-45 ports (port 2~3 with 802.3at PSE, and port4-5 with 24V passive PSE) with automatic MDI/MDI-X crossover, auto-sense the speed and duplex for 10Base-T, 100Base-TX or 1000Base-T connection. Automatic MSTRONIC CO., LTD.
  • Page 5 Pin 6 Pin 2 Pin 4 Pin 7 Pin 5 Pin 8 Pin 7 Pin 4 Pin 8 Pin 8 Connect an Ethernet cable into any switch port and connect the other side to your attached device. MSTRONIC CO., LTD.
  • Page 6 DC power to PD. The yellow PoE LED will light up when the cable is correctly connected. Refer to the LED Indicator section for descriptions of each LED indicator. If a port LED is off, go back and check for connectivity problems between that port and the network device connected. MSTRONIC CO., LTD.

  • Page 7: Technical Specifications

    *A+B mode: data pair A plus V+(1,2), data pair B plus V-(3,6) data pair C plus V+(4,5), data pair D plus V-(7,8) Maximum PoE power Port 1-3: IEEE802.3at – 35W (802.3at 2 event classification) Port 4: 24V 1A (24W) Port 5: 24V 2A (48W) 4 pairs MSTRONIC CO., LTD.
  • Page 8 18V~32VDC input @ rear terminal Power consumption <5W without PD loading Power efficiency 85% at full load (@24V typical) Operating temperature ℃~ +70℃ Operation humidity 90% relative humidity, non-condensing with conformal coating Storage temperature -40℃~+85℃ Dimension 40mm(H)x180mm(W)x150mm(D) DIN rail mount available MSTRONIC CO., LTD.
  • Page 9 User’s Manual PSE-SW5G2280HM MSTRONIC CO., LTD.
