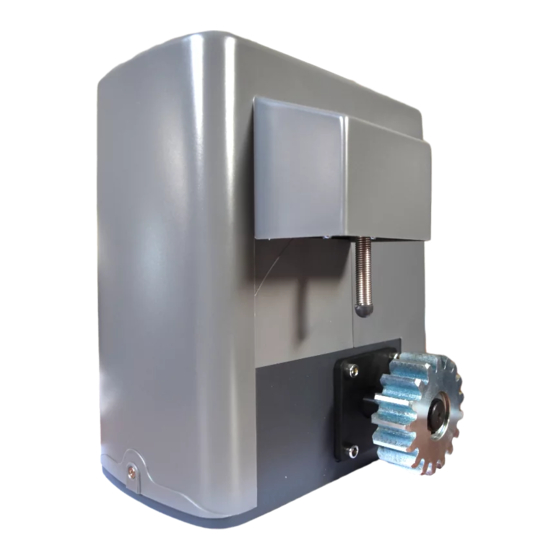

DIGITALas D-FORCE600VA User Manual

Sliding gate operator
Hide thumbs

Advertisement

Quick Links

Download this manual
Sliding Gate Operator
User's Manual
D-FORCE600VA

Advertisement

loading
Need help?

Need help?

Do you have a question about the D-FORCE600VA and is the answer not in the manual?

Questions and answers

Summary of Contents for DIGITALas D-FORCE600VA

  • Page 1 Sliding Gate Operator User's Manual D-FORCE600VA...
  • Page 2 D-FORCE600VA SLIDING GATE OPERATOR 1. Products introduction Please read the instructions carefully before proceeding. MCU is supplied to control the gate operator. Keypad / single button interface. Have Infrared safety sensor interface. Soft start and soft stop function and the soft stop width are adjustable.
  • Page 3 D-FORCE600VA SLIDING GATE OPERATOR gates. The automatic gate operator must be grounded.   Install the gate operator on the inside of the property; DO NOT install it on the outside of the property where the public has access to it.

  • Page 4: Mechanical Installation

    12m/min 14m/min 4. Mechanical Installation The D-FORCE600VA will handle gate weighting up to 600kg and up to 8m/12m if the proper installation procedures have been followed. The D-FORCE600VA gate operator operates by forcing a drive rack by a drive gear. The entire configuration is shown in the diagram below. The...
  • Page 5 Fig.1 Gate preparation Be sure the gate is properly installed and slides smoothly before installing the D-FORCE600VA sliding gate operator. The gate must be plumb, level, and move freely. Conduit In order to protect the cable, use PVC conduit for low voltage power cable and control wires.
  • Page 6 D-FORCE600VA SLIDING GATE OPERATOR fasten the operator. Gate operator Gear Spring washer Plain washer Groundsill Input power Gate operator Gear Spring washer Plain washer Groundsill Input power Fig.2 Operator base (see Fig.3) After the concrete has hardened, mount the gate operator base to the concrete pad.
  • Page 7 D-FORCE600VA SLIDING GATE OPERATOR Fig.3 Installation of Rack  Fix the three nuts (in the same package with rack) on the rack element. Lay the first piece of rack on the gear and weld the first nut on the ...
  • Page 8 D-FORCE600VA SLIDING GATE OPERATOR Fig.4 5. Adjustment Spring limit switch  To ensure safety, it is recommended to install limit switches at both ends of the gate to prevent the gate from sliding out of the rails. The rails must be installed horizontally.
  • Page 9 D-FORCE600VA SLIDING GATE OPERATOR  Release the gear with the key and push the sliding gate manually to pre-determine the position, fix the block to the rack and lock the gear by push up the release bar. Moving the gate electrically, adjust the block to the proper position until the position of the opening and closing meet the requirement.
  • Page 10 D-FORCE600VA SLIDING GATE OPERATOR M6X10 Spring limit switch Magnetic limit switch Fig.6 Manual operation In case of power failure use key unlock the lock and pull down the release bar about 90 degree to open or close gate manually, use the release key as follow: ...
  • Page 11 D-FORCE600VA SLIDING GATE OPERATOR Fig. 7 6. Wire Connecting Make sure that the power is OFF before making any electrical connections. Remove the cover, perform the wiring (See Fig.8 and wiring notes for control board) and replace the cover again.
  • Page 12 D-FORCE600VA SLIDING GATE OPERATOR Learn button Open limit Limit swtich Close limit Loop detector GND/COM Infared sensor +12VDC Pedestrian switch O/S/C switch Capacitor Extral button switch MOT1 MOTOR MOT2 Caution light Protect Earth VDR1 POWER Fig.8 Wiring notes of control board Power Input (terminal J3): PE (Earth),L (Live),N (Neutral).
  • Page 13 D-FORCE600VA SLIDING GATE OPERATOR D-FORCE600VA: AC220V D-FORCE600VA U: AC110V Output power supply: 12VDC(7 of J5), COM (9 of J5), I.R. (8 of J5 is N.C Infrared) If the infrared beam is interrupted during closing, the gate will reverse and open immediately. The product is not factory equipped with an infrared device;...
  • Page 14 D-FORCE600VA SLIDING GATE OPERATOR switch to ‘4(COM)’. terminal J2 terminal J2 Keypad Stop Open Single-button switch Close or keypad Three-button Control board Control board switch terminal block terminal block Fig.10A Pedestrian switch Connect pedestrian switch wire to 4 and 6 terminal of J2. press the switch the door will open 1 meter when the door is closed.
  • Page 15 D-FORCE600VA SLIDING GATE OPERATOR terminal J4 Terminal J6 Capacitor Mot1 Mot2 Control Control board board terminal block Fig.11 f. Loop detector interface Connect wire see the Fig.11A terminal J2 detector LOOP output Loop detector Control board terminal block Fig.11A The car through the loop the door will close itself when the door opened.
  • Page 16 D-FORCE600VA SLIDING GATE OPERATOR 7. Tuning and operation a. Adjust the Adjustable resistance (see Fig.8) VR1: For motor working total time adjustment. Clockwise rotation to increase, counter-clockwise rotation to reduce. The to tal time can be set to 10 seconds as minimum and 90 seconds as maximum.
  • Page 17 D-FORCE600VA SLIDING GATE OPERATOR together, but you need repeat the program/learn process if you want to use more than one button. Button 1 Button 2 Button 3 Button 4 Fig.12 Remote transmitter  Adding extra remote controls (Learn): Remove the cover, press and hold the learn button ‘S1’...
  • Page 18 D-FORCE600VA SLIDING GATE OPERATOR Adjust the DIP switch（ see Fig13B and table 1 ） Fig. 13A Fig.13B...
  • Page 19 D-FORCE600VA SLIDING GATE OPERATOR 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 Fig. 13C Fig. 13D Table 1: DIP switch adjust DIP-switch Function SET No soft start mode (see Fig.13A) Soft start mode(need to power on reset).
  • Page 20 D-FORCE600VA SLIDING GATE OPERATOR N.O. limit switch(magnetic limit) When the 3 and 4 all OFF, the Auto- close function is disable. When the 3 OFF and the 4 is ON, auto-close time is (see Fig.13C) near 12 Sec. when the 3 ON and the 4 is OFF auto-close time is near 24 sec.

  • Page 21: Led Indicate

    D-FORCE600VA SLIDING GATE OPERATOR close time can be adjusted to between 12, 24 and 36 seconds.  Safe guard (Infrared photocell): If infrared beam is interrupted during closing, the gate will reverse and go open immediately. This feature will not function if the gate is in fully opened and closed positions or during opening.

  • Page 22: Troubleshooting

    D-FORCE600VA SLIDING GATE OPERATOR the button is pressed the LED will light. LED 7 indicate the ‘infrared sensor’ status, if the output is connected the LED will light. LED 9 indicate the ‘Loop detector’ status, if the output is connected the LED will light.
  • Page 23 D-FORCE600VA SLIDING GATE OPERATOR The door can 1. Infrared beam is Remove open fails obstructed. obstructions. close. Infrared sensor 2. Make sure the function is enabling, but infrared sensor the sensor has not been function is disabling. installed. Remote 1. Battery level may be 1.
  • Page 24 D-FORCE600VA SLIDING GATE OPERATOR Transmitter Release key User’s manual...
