- Page 1 X3 User Guide USER GUIDE...
- Page 2 X3 User Guide...
-
Page 3: Table Of Contents
X3 User Guide Table of Contents Important Safety and Operating Guidelines Camera Features Camera Front Diagram Camera Rear Diagram Waterproof Case Getting Started Battery Charging MicroSD Card Compatibility Firmware Update Power On/Off Navigation Capture Videos and Photos Modes Video Mode... -
Page 4: Important Safety And Operating Guidelines
DO NOT attempt to open the camera or modify it in any way. If the camera has been opened the warranty will be void. Maintenance and repairs should only be performed by Kaiser Baas. • DO NOT handle or charge the camera without its waterproof case using wet hands. -
Page 5: Camera Features

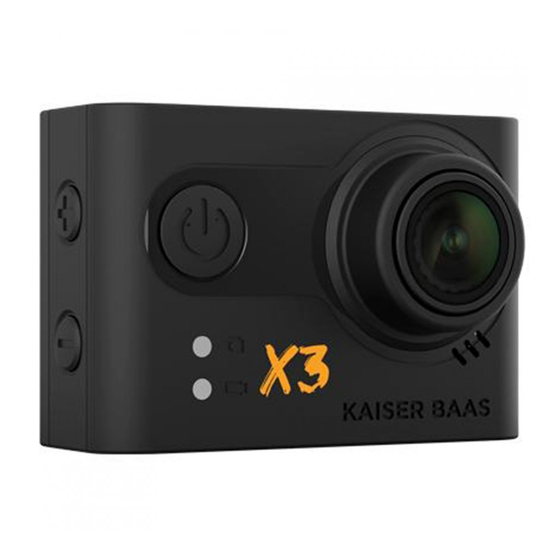

X3 User Guide Camera Features Camera Front Diagram Power/Toggle Button REC/Confirm Button Camera LED WiFi LED Light Video LED +/Up Button Lens -/Down Button... -
Page 6: Camera Rear Diagram
X3 User Guide Camera Rear Diagram Recording LED LCD Screen Status/Power LED MicroSD Card Slot ¼” Screw Mount Micro HDMI Slot Battery Slot Mini USB Port Battery Door... -
Page 7: Waterproof Case
X3 User Guide Waterproof Case 1. Case Latch 6. Clear LED Cover 2. Record/Confirm Button 7. Lock Bolt 3. +/Up Button 8. Quick Release Mount 4. -/Down Button 9. Waterproof Case Lens 5. Power/Select Button... - Page 8 X3 User Guide 10. Case Latch 11. Waterproof Case Port 12. LCD Cover...
-
Page 9: Getting Started
MicroSD Card Compatibility Your camera requires a MicroSD Card (not included). Kaiser Baas recommends the use of a brand name Class 10 or higher MicroSD Card. Any content recording higher than 1080P@60FPS will require a Class UHS-1 or higher card. -
Page 10: Power On/Off
Power On/Off To power ON your camera 1. Insert the battery into the camera. 2. Hold the power/toggle button for 2 seconds until you see the Kaiser Baas logo appear. Navigation Navigate the menus and camera modes using the 4 buttons found on your camera. -
Page 11: Capture Videos And Photos
X3 User Guide Capture Videos and Photos Modes The X3 features 2 key modes; Video Mode and Photo Mode. Both modes feature different settings. The following guides will help you understand each setting. Video Mode The default mode is Video Mode. - Page 12 X3 User Guide Loop Recording This allows you to record continuously using footage intervals of 2/3/5 minutes. The camera will delete the oldest loop recording file and replace with the latest recording when the MicroSD is full. Time lapse Time-lapse is a creative technique that records footage at a very low frame rate.
- Page 13 X3 User Guide This mode will keep the camera switched ON until the battery is depleted. It may be useful if using the camera for extended periods of time to connect it to a power source (e.g. power bank). Note: Whilst in this mode the camera will stop recording after no movement is detected.
-
Page 14: Photo Mode
X3 User Guide Photo Mode To enter Photo Mode, click the Power/Toggle button once on the front of the camera. Click the Record/Confirm button to take a photo. When capturing a photo, the red photo LED on the front of the camera and the blue power LED on the back of the camera will flash once. - Page 15 X3 User Guide Quality This setting lets you select the quality of the images. S.Fine is the highest and largest quality. This setting may be useful if you are trying to reduce the file size of the images. Auto Shooting Mode Auto photo mode allows you to shoot a continuous sequence of photos.
-
Page 16: System Settings
X3 User Guide System Settings WiFi Switch ON/OFF the camera WiFi. For more information please refer to the WiFi Guide (page 18). Date-Time Set the Date and Time in 24h format. Auto Shutdown This will power off the camera after a period of inactivity. - Page 17 X3 User Guide Delay Power Off Delay the shutdown of the camera. Interval range: 5/10/20/30/60 seconds. OSD (On Screen Display) Toggle whether in Video/Photo Capture Mode the user interface is displayed. Status LED Select if you would like to disable the LED lights.
-
Page 18: Wifi Guide
2. Switch on the WiFi from the Advanced Settings Menu (page 16). 3. Connect to the WiFi through your WiFi settings page on your smartphone. a. WiFi ID: KB-X3 b. WiFi Password: 1234567890 4. Launch the KB Action App and click connect. -
Page 19: Battery Guide
X3 User Guide Battery Guide Only use KB official batteries with this product. Never use any third party or unknown accessories or batteries. To charge the camera: 1. Insert the battery into the camera 2. Connect the USB Charging Cable to the Mini USB port located on the camera. -
Page 20: Charging Slot
X3 User Guide Charging Slot The waterproof case features a screw and port that allows you to charge/power your camera whilst it is still in the waterproof case. This feature is useful for setting up your camera outdoors with a power bank or power source for extended shooting or long time lapses. -
Page 21: Maintenance
X3 User Guide Maintenance Adhere to these guidelines to ensure maximum performance and longevity. • Never use the camera in water without the waterproof case. The camera is not waterproof without the case. • If camera has been used in salt water ALWAYS rinse the waterproof case in fresh water to prevent corrosion. -
Page 22: Faq
X3 User Guide Camera What is the WiFi Password? The default password is: 1234567890 My camera has frozen Try to restart the camera by holding the power button or removing and reinserting the battery. Won’t read my MicroSD Card Make sure the MicroSD has been formatted. If you are still having trouble, please visit kaiserbaas.com/support for a guide on MicroSD compatibility. -
Page 23: Support
X3 User Guide • Video footage is recorded using the h.264 codec, your video player may not support this format. Please use a video player that supports h.264 playback. Visit kaiserbaas.com/support for further information on compatible video players. Support Having trouble with your camera? Don’t worry, our friendly support team can help.
