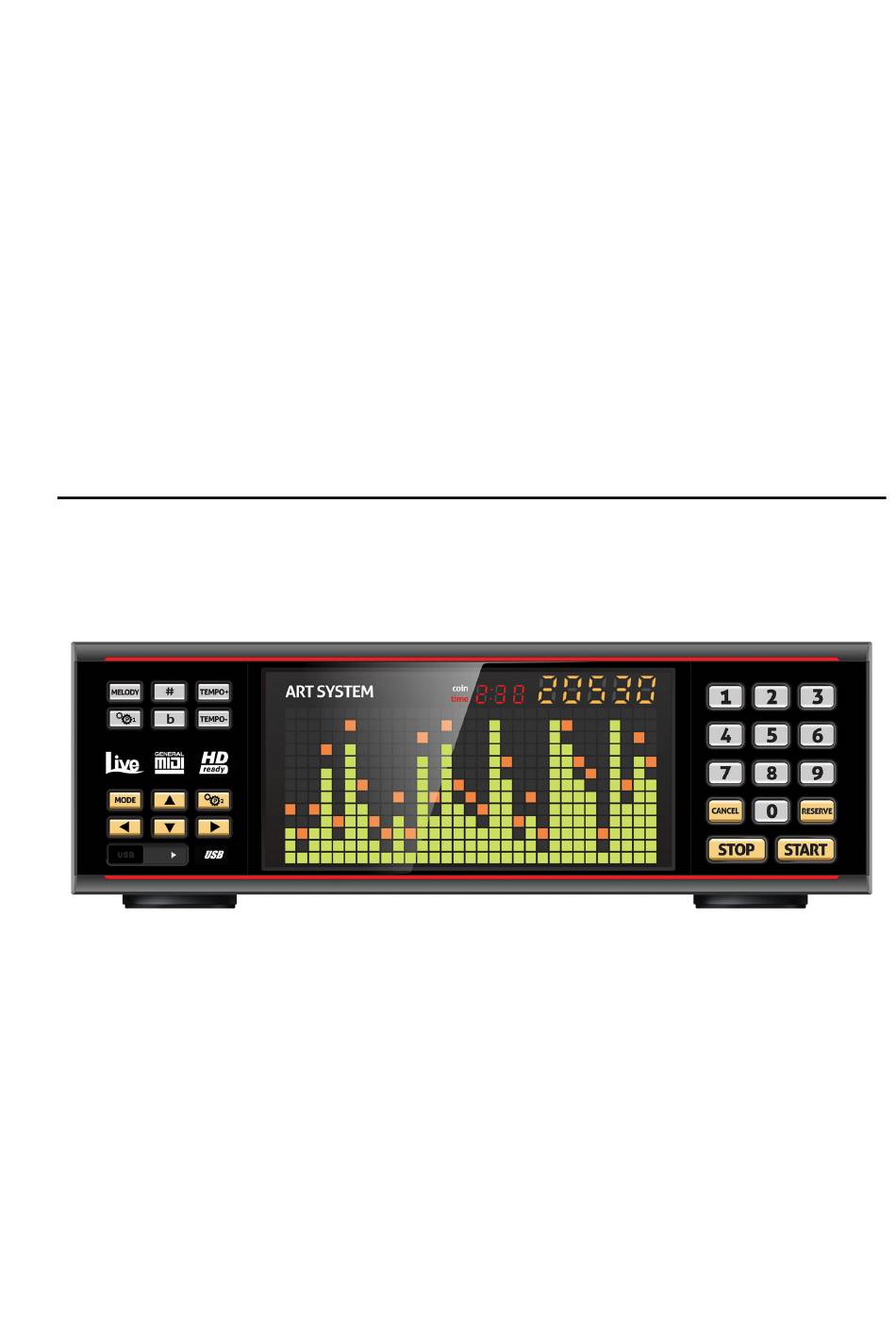

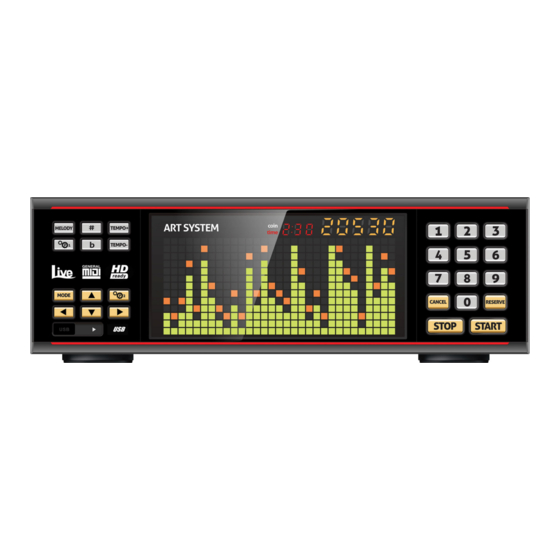

  • Page 1 AST-100 KARAOKE SYSTEM Owner’s manual...

  • Page 2: Table Of Contents

    AST-100 karaoke system. Owner’s manual Table of contents 1. Precautionary measures........................................3 1.1. During installation .........................................3 1.2. During exploitation .......................................3 1.3. During prophylaxis and cleaning ..................................4 2. Getting to know the device ......................................5 2.1. Functional capabilities......................................5 2.2. Package content........................................5 2.3. Front panel..........................................5 2.4.

  • Page 3: Precautionary Measures

    During disconnection of power cord from от electric circuit do not pull power cord, hold the plug.  Do not cover ventilating holes and louvers on top and on each side of AST-100 housing. Do not  exploit device in poor ventilated places.

  • Page 4: During Prophylaxis And Cleaning

    Do not dismantle and do not repair device independently. Repair to be arranged in authorised  maintenance shop. 1.3. During prophylaxis and cleaning Before cleaning of AST-100 turn off power, disconnect power cord from electric circuit.  Recommended not less than once an year to make prophylaxis of device in authorised ...

  • Page 5: Getting To Know The Device

    (box, seal, textile case).  2.3. Front panel Lay out of control elements and sight control on front panel of device AST-100: Figure 1 1. Switching of background video source. 2. Button box for control of audio track playback.

  • Page 6: Rear Panel

    AST-100 karaoke system. Owner’s manual 2.4. Rear panel Lay out of ports on rear panel of device AST-100: Figure 2 1. Port for connection of external lightning equipment. 2. Port for connection of coin box. 3. Port for connection of fire alarm.

  • Page 7: Remote Control Panel

    AST-100 karaoke system. Owner’s manual 2.5. Remote control panel Figure 3 1. Button box for control of audio track playback. 2. Button box of digit keys. 3. Button for playback start / confirm the action. 4. Button for playback stop / cancel the action.

  • Page 8: Initialising And Connection

    AST-100 karaoke system. Owner’s manual 3. Initialising and connection Before connection of AST-100 with other devices make sure that power of the device and  pluggable equipment switched off. Do not cover ventilating holes of AST-100 and pluggable equipment for natural air circulation.

  • Page 9: Connection To Professional Equipment In Club

    AST-100 karaoke system. Owner’s manual 3.2. Connection to professional equipment in club Approximate scheme of AST-100 connection using dispatcher of high definition signal. Figure 5 3.3. Connection of background video external source External sources of background video (DVD player, satellite TV receiver) to be connected through...

  • Page 10: Installation Of Electronic Certificate

    AST-100 karaoke system. Owner’s manual 3.4. Installation of electronic certificate Installation of certificate to be done after connection of peripheral equipment (display or TV set) to AST-100. For installation of certificate the following actions to be done: 1. Turn on the device, wait for its download finish, insert included in delivery USB drive with the certificate to USB port on the front panel of device.

  • Page 11: Functional Capabilities

    Just after switching-on and during periods of time between songs playback the device is in standby mode. In standby mode AST-100 produces background video to the screen of connected display or TV set and background audio track to connected to the device acoustic system in case that in the device set up switched on playback of background video (per default switched on) and audio.

  • Page 12: Cancellation Of Reservation "On-The-Fly

    Switching source of background video If external source of background video connected to AST-100 (for more details, see para. 3.2) it is possible using button «BGV» on remote control (button box [9] on Figure 3) or button [1] on the front panel of the device (Figure 1) to switch between external sources and record of background video on hard disk of the device.

  • Page 13: Selection Of Playback Mode

    AST-100 karaoke system. Owner’s manual Selection of playback mode AST-100 may automatically play all songs recorded on hard disk of the device. Apart from normal playback mode (for more details, see para. 4.1.1) there are two modes of automatic playback: serial mode and random playback.

  • Page 14: Favorites

    Applause During pressing the button «Applause» on remote control ([8] on Figure 3) AST-100 will play recording of the sound of applause. Sound of applause do not interrupt song playback, it plays simultaneously with track playback (overlap). Applause also may be started in standby mode. The next...

  • Page 15: Function "Media Player

    AST-100 karaoke system. Owner’s manual 4.2. Function «Media player» Function «Media player» allows to playback video tracks, audio tracks and to view image files in «slideshow» mode from external USB drive connected to USB port of the device. To switch to «Media player»...

  • Page 16: Function "Setup

    Information Summary information about karaoke system’s main data. Serial number. Serial number of the device. Also available on rear panel of AST-100 (Figure 2). Sale date / Warranty. Date of sale and warranty period AST-100. Firmware Version. Current number of firmware version installed to AST-100.

  • Page 17: Background Video

    AST-100 karaoke system. Owner’s manual Lyrics Rows Count. Adjustment of quantity of simultaneously displayed on the screen lines of playing song. Four lines take more space on the screen, but simplify vision of text. Rows Alignment. Selection of version of song text lines adjustment in horizontal direction.

  • Page 18: Reset Default

    «NO» for rejection of deleting (button box of coloured function pushbuttons [7] on Figure 3). Reset Default This menu section is designed to reset main parameters of user-definable AST-100 settings to recommended by manufacturer settings (delivery settings). Reset of settings do not affect changes done in the menu option «Administrator».

  • Page 19: Video

    Secondary DNS. Setting of IP address of secondary DNS server. Network / Wireless network (Wi-Fi) Connection using wireless network is impossible if AST-100 is already connected to local area network by the cable. Status. Displays the current status of connection to wireless network.

  • Page 20: Ast Manager, The Program To Control The Device Using Personal Computer, Tablet Pc Or Smartphone

    5. AST Manager, the program to control the device using personal computer, tablet PC or smartphone By means of the special program «AST Manager» it is possible to control the device AST-100 using personal computer, tablet PC or smartphone. The program gives the full control interface substituting screen of connected to the device TV set.

  • Page 21: Installation Of Firmware Updates

    AST-100 karaoke system. Owner’s manual 6. Installation of firmware updates It is recommended to regularly check availability of the new versions of software (firmware) updates for the device and to renew these updates timely. For independent updating of firmware make the following actions: 1.

  • Page 22: Troubleshooting

    AST-100 karaoke system. Owner’s manual 7. Troubleshooting In case of the device faultiness before applying to specialised maintenance shop it is recommended to learn the information presented in below table. The stated actions will help to determine possible cause of faultiness and to avoid it in future.
