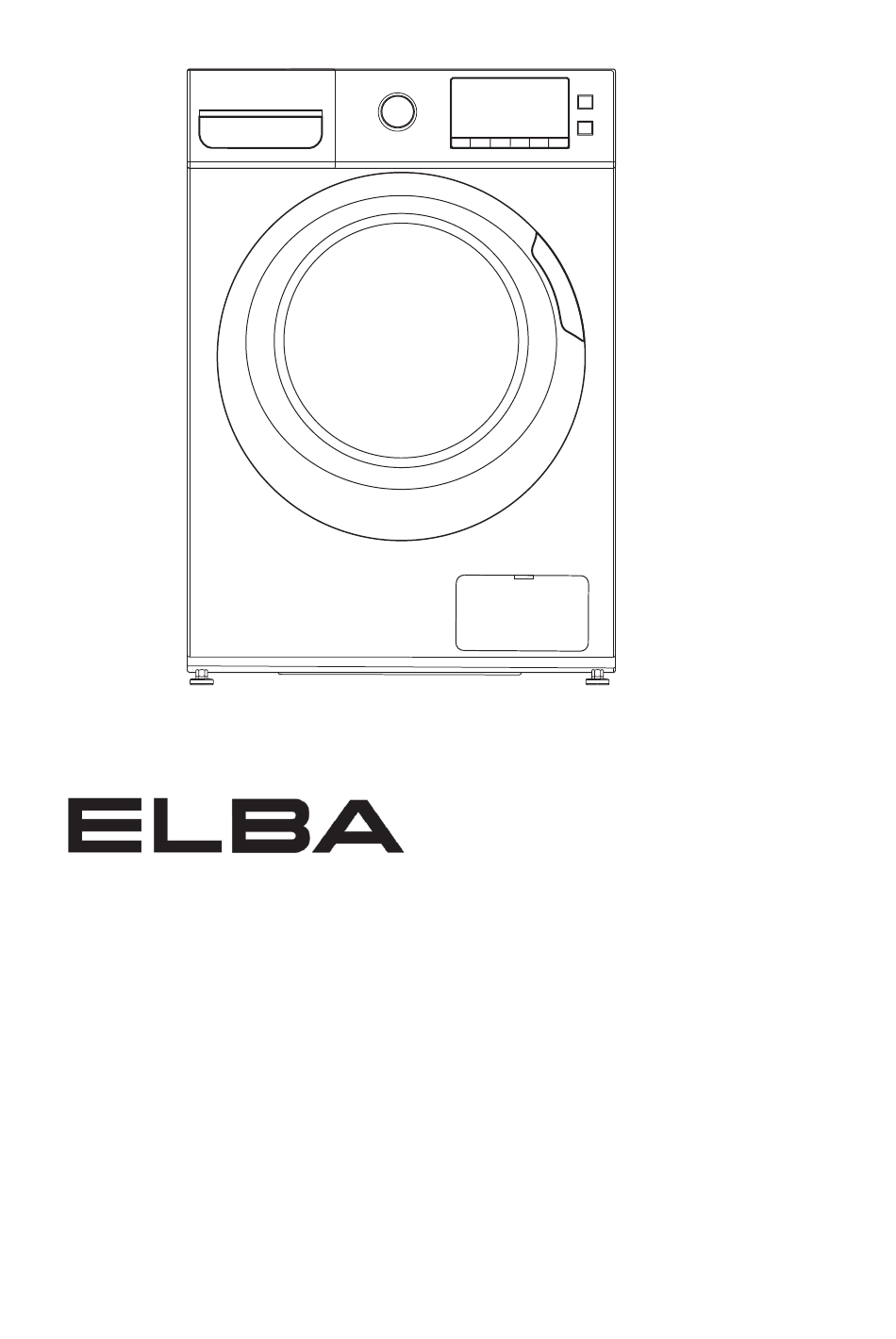

WASHING MACHINE
MODEL: EWF-E7152D(WH)
EWF-E8152D(WH)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer when
you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading

Summary of Contents for Elba EWF-E7152D

  • Page 1 WASHING MACHINE MODEL: EWF-E7152D(WH) EWF-E8152D(WH) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

     In order to avoid electric shock, please make sure the appliance has been shut off before carrying out the maintenance.  Use only original accessories provided by ELBA or its authorized service center.  Do not use wet parts of the body to touch the appliance.

  • Page 3: Installation

    Distributors decline all liability for not following above instructions or some improper operations which caused personal injury and property loss. 3. INSTALLATION 3.1 Before the installation  Please check the products and make sure there is no damage on the appliance. ...

  • Page 4: Product Description

    It can drain the water up and down, outlet hose shall not be installed at a height beyond 100cm and its end shall not be immersed in water. 4. PRODUCT DESCRIPTION...
  • Page 5 5. HOW TO USE YOUR WASHING MACHINE Detergents  “Low suds” detergent or washing powder shall be selected according to fibre type, colors, washing temperatures, dirty degree and types.  Bleacher belongs to alkaline type can damage clothes.  Powder detergents can easily leave the residues in the clothes so as to generate the bad smell;...
  • Page 7 Washing Clothes for the First Time  Before washing clothes at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows: 1. Connect power source and water. 2. Put a little detergent into the box and close it. 3.
  • Page 8 Cotton You can select this procedure to wash the daily washable clothes. The washing period is longer with strong washing intensions. It is recommended to wash the daily cotton articles, for example: daily laundry, bed sheets, quilt covers, pillowcases, gowns, underwear etc. Cotton ECO To increase the washing effects using lower temperature but washing time will be increased.
  • Page 9 Synthetic You can select this procedure to wash the delicate clothes. The procedure is shorter compared with cottons and the washing intension is quite gentle. It is recommended to wash articles, for example: shirts, coats, blending. As for curtains and laced textiles, the procedure “Synthetic” shall be selected.
  • Page 10 Lock Protection for Kids This function is to lock the washing program to prevent misused by children. In this case, all buttons except On/Off button will not work. Press Extra Rinse and Pre Wash speed together for 3 seconds during the running procedure, the buzzer will beep and the machine will be locked.

  • Page 12: Cleaning And Maintenance

    7. CLEANING AND MAINTENANCE Before cleaning or performing maintenance on your appliance, disconnect the appliance from the power supply. To extend the lifespan of your appliance, it must be cleaned frequently. The enamel or stainless steel parts should be cleaned without using any abrasive powders or corrosive substances which could damage the surface.
  • Page 13 Drain Pump Filter  Drain pump filter can filter the yarns and small foreign matters from the washings. Clean the filter periodically to ensure the normal operation of washing machine.  First, drain the water with drain pump and then open the drain pump to clean away foreign matters from drain pump filter.

  • Page 14: Troubleshooting

    8. TROUBLESHOOTING Troubles Reason Solution Appliance cannot Door is not closed properly. Check if the door is closed tightly. start up No power supplied. Check if power plug is inserted well. No water supplied. Check if water supply tap is opened. Check if button “Start/Pause”...
  • Page 15 Error Code Care Label Electrical Warning  To avoid fire, electrical shock and other accidents, please take note on the following: i. Only the voltage indicated in power label can be used. ii. When you are using the heating function, the maximum current through the washing machine will reach 10A.

  • Page 16: Technical Specification

    8. TECHNICAL SPECIFICATION Model EWF-E7152D(WH) Washing Capacity 7.0KG Voltage 220–240V 50 Hz Frequency Rated Power 2,050W Rated Current Water Pressure 0.05MPa ~ 1.0 MPa Energy Consumption / Year 175kWh Water Consumption / Year 10,000 litres Product Dimension (mm) 595 (W) x 850 (H) x 495 (D)

This manual is also suitable for:

Ewf-e8152d
