User Manual
(f
|-T~E^j|"~I
C^DN^RA^TY

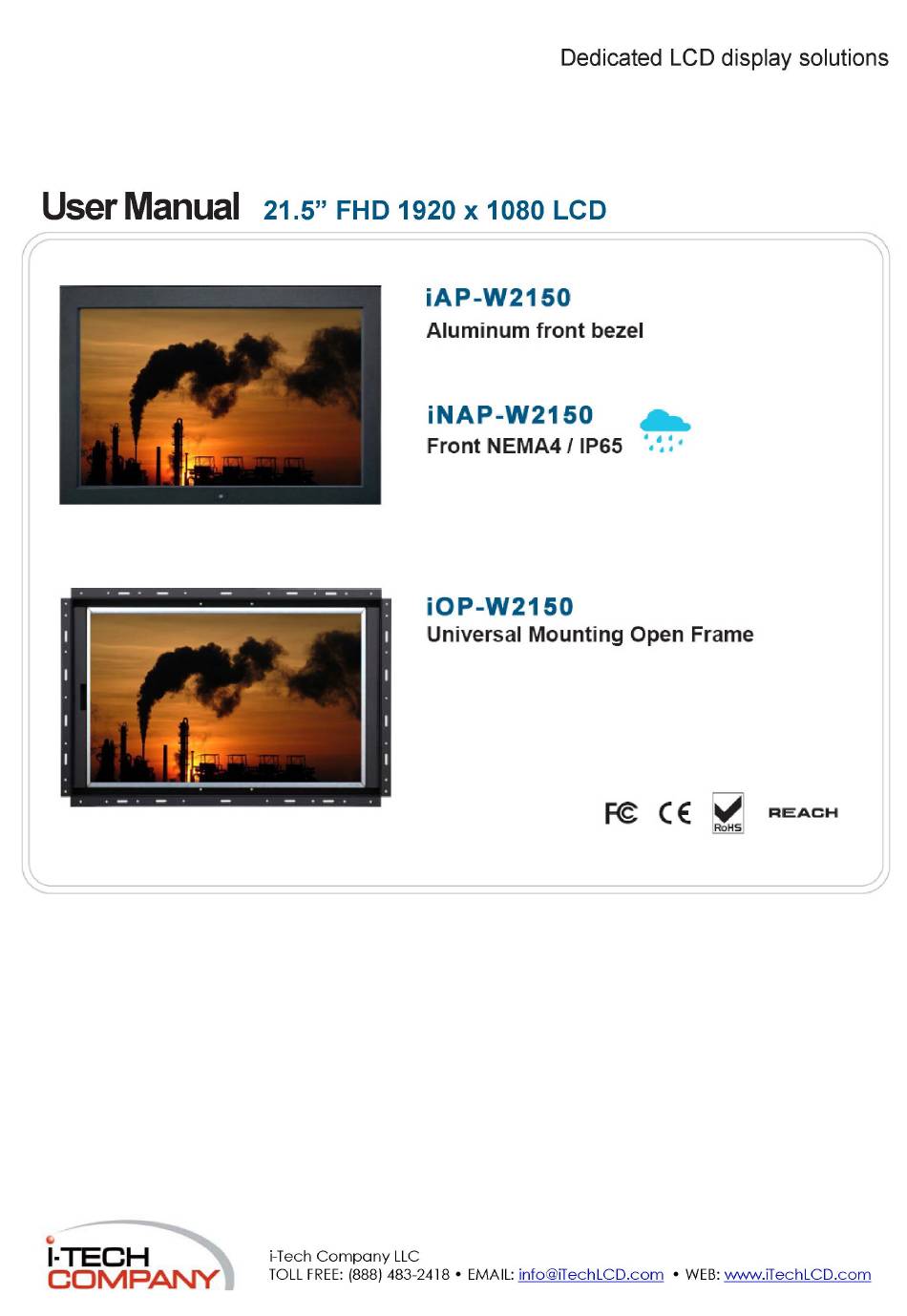

21.5" FHD 1920 x 1080 LCD
JAP-W2150
Aluminum front bezel
JNAP-W2150
Front NEMA4/IP65
i O P - W 2 1 5 0
Universal Mounting Open Frame
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL:
Dedicated LCD display solutions
^
F ^
C€ S/
info@iTechLCD.com
• WEB:
^
^ A C H
www.iTechLCD.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iAP-W2150 and is the answer not in the manual?

Questions and answers

Related Manuals for I-Tech iAP-W2150

Summary of Contents for I-Tech iAP-W2150

  • Page 1 Aluminum front bezel JNAP-W2150 Front NEMA4/IP65 i O P - W 2 1 5 0 Universal Mounting Open Frame C€ S/ ^ A C H |-T~E^j|"~I i-Tech Company LLC C^DN^RA^TY TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
  • Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 4: Table Of Contents

    Contents <Part. 1 > iAP-W2150 iNAP-W2150 Package Content Structure Diagram & Dimension Mounting Hardware & Installation P.4 - 5 <Part. 2 > i O P - W 2 1 5 0 Package Content Structure Diagram & Dimension P.7 - Mounting Hardware & Installation <...
  • Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 6 < Part 1 > < 1.1 > Package Content - iAP / i N A P - W 2 1 5 0 JAP-W2150 / JNAP-W2150 21.5" FHD LCD display X 1 6ft VGA cable X 1 Power adapter X Power cord X 1 Mounting hardware X 1 pack Mounting bracket x 4 - M4* 6mm screw...
  • Page 7 < 1.2 > S t r u c t u r e D i a g r a m - i A P / i N A P - W 2 1 5 0 21.5" FHD LCD Display Front view Rear view ©...
  • Page 8 < 1.2 > Dimension - iAP / JNAP-W2150 Front View Side View IAP-W2150 roe> JNAP-W2150 r u n [_Oj 477.8 31.5 577.8 59.1 Rear View 553.9 UNIT: mm 1mm = 0.03937 inch Bottom View 577.8 T=P~ "JO Jr=A. b—iT o d o O ' ■...
  • Page 9 < 1.3 > Panel Mount Installation - iAP / JNAP-W2150 21.5" FHD LCD Display M4*50mm screw M4*6mm Mounting screw bracket x8 pcs x8 pcs x 4 pcs l£ Hardware set part no. UV-BK#2 «. "■4 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...
  • Page 10 < 1.3 > VESA mount Installation - iAP / JNAP-W2150 M4 screw > ? VESA mount (100*100mm ) Hardware and M4*4 pcs for VESA mount are not provided...
  • Page 11 < Part 2 > 21.5" FHD LCD Display < 2.1 > P a c k a g e C o n t e n t - J O P - W 2 1 5 0 J O P - W 2 1 5 0 21.5"...

  • Page 12: Structure Diagram & Dimension

    < 2.2 > Structure Diagram - i O P - W 2 1 5 0 Front view JOP-W2150 Rear view (?) Rear case © LCD panel © Audio speaker, pair © Universal open frame mounting • • ® A O < ♦ ■ P (?) LCD membrane ■■...

  • Page 13: Part. 2 > I O P

    < 2.2 > Dimension - i O P - W 2 1 5 0 21.5" FHD LCD Display Side View Front View 2 6 . 9 . 3 5 . 3 5 . 3 5 , - ?-, 35 3~ 35 35 35 35 35 ,j :: 35 2 6 1—I 1 !—|—1~|—I—'—!'...
  • Page 14 < 2.3 > Installation - I O P - W 2 1 5 0 ( I ) Universal mount "" < • . . _ s* a l l ^ S : ( I I ) VESA mount (100*100mm ) ...-•' ...-•"...

  • Page 15: Product Specifications

    < Part 3 > 21.5" FHD LCD Display < 3.1 > Product Specifications iAP/iNAP-W2150 iOP-W2150 Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical Design Design Design Design Design Design Black. RAL9005 Front Panel Rear Casing Black, RAL 9005 Black, RAL 9005 VESA Mounting 100 x 100mm 100 x 100mm Panel mount...
  • Page 16 Regulatory Regulatory Safety FCC & CE certified Environmental RoHS2 & REACH compliant 0 to 50 C degree Environmental Environmental Environmental Environmental Environmental Environmental Operating Operating Temperature Conditions Conditions Conditions Conditions Conditions Conditions 20-90%, non-condensing Humidity Storage Storage Storage Storage Temperature -5 to 60°C degree Humidity 5-90%, non-condensing...

  • Page 17: On-Screen Display Operation (Osd )

    21.5" FHD LCD Display < 3.2 > On-screen Display Operation ( OSD ) O Power light © < ► < ► ♦ * • Green = On • Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control <$><!><£...
  • Page 18 < 3.2 > On-screen Display Operation ( OSD ) ® Audio Movie / Voice / Normal / Music mode to choose Audio mode: Volume : Adjust the volume of sound Bass Set the value of bass sound Treble : Set the value of treble sound Balance : Set the balance value of treble and bass sound Analog TV audio...

  • Page 19: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    21.5" FHD LCD Display < 3.3 > H o w to Use Picture In Picture ( PIP ) Picture By Picture ( P B P ) < 3.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu ■+ MISC -♦...
  • Page 20 < 3.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu -» MISC -* PIP Mode - PBP Main screen S u b screen Size LCD Monitor Main / Sub screen 1920x1200 955x716 1920x1080...

  • Page 21: Part 4 > Options

    < Part 4 > Options 21.5" FHD LCD Display < 4.1 > Option Table i A P / INAP Options SDI " " • S-Video * + Composite ( BNC ) Audio Touchscreen MCS multi-display control DC Power MIL-type / lockable connector TV (Analog ) * * * * About SDI...
  • Page 22 < 4.2 > Options : 3G HD / SD-SDI input iTechLCDs' SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with NetView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, iTech LCD provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
  • Page 23 < 4.3 > Options : MCS 2 1 . 5 " F H D L C D Display More control is always good. Especially when it is necessary and easy. i T e c h L C D provides MCS solution to control the OSD of ( Multi-display Control) various N e t V i e w...
  • Page 24 < 4.4 > AV3.0 Upgrade Options - AV ( S-Video Composite, BNC Audio ( 3.5mm audio jacks for audio & out, and 2W + 2W speakers ) A u d l Power BNC S-Video _ ° — < - , DVI-D 0 O ©...
  • Page 25 How to Use RC-1 Remote Controller 21.5" FHD LCD Display © ©00© 0©©0 0@00 © POWER Sv/itches on or off the TV © MUTE Turn on or off the speaker © INPUT Switch to signal input mode Select channels. For channel numbers 10 and above. ®...

  • Page 26: Projected Capacitive ( 10-Point Touch

    < 4.5 > Options Touchscreen & driver F21.5" USB Touchscreen Specification e-Resistive Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model TPC-21.5 Multi-touch e-Capacitive Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology...
  • Page 27 21.5" FHD LCD Display < 4.5 > Options : Touchscreen & driver TPC-21.5 Driver £k Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. T R B / T C B Driver Please follow the below steps to setup the touch screen:...

  • Page 28: Mil-Type Or Lockable Connector

    < 4.7 > Options MIL-type or Lockable Connector Input Part no. MIL Standard type type MIL - D T L - 26482 MS3470W8-33P tfS^Q DC Power *** Connector Connector (Male) MS3470W14-15P MS3470W14-15P MIL - D T L - 26482 MIL - D T L - 26482 VGA *** VGA *** (Male )

  • Page 29: Tv (Analog

    21.5" FHD LCD Display < 4.8 > Options : TV (Analog ) A u d i o Power BNC S-Video .—^ © © O O O H D M I <i ■ ■ ■ • • ■ • • ■ • ; . 0 out - in - in Video PC * * *...
  • Page 30 How to Use RC-2 Remote Controller © © © ® © © © © ® <E) (MENUJ f / \ ) £EL=CTJ k s P E C T J <D M0W@ <£> f i-^z O © 0 0 © (™y x^y W°9 ©...
  • Page 31 I-TECH i-Tech Company LLC C O M P A N Y TOLL FREE: (888) 483-241 8 • EMAIL: info wiTechLCD.com • WEB: www.iTech .com...

This manual is also suitable for:

Inap-w2150Iop-w2150
