Summary of Contents for Speco VLB1TW

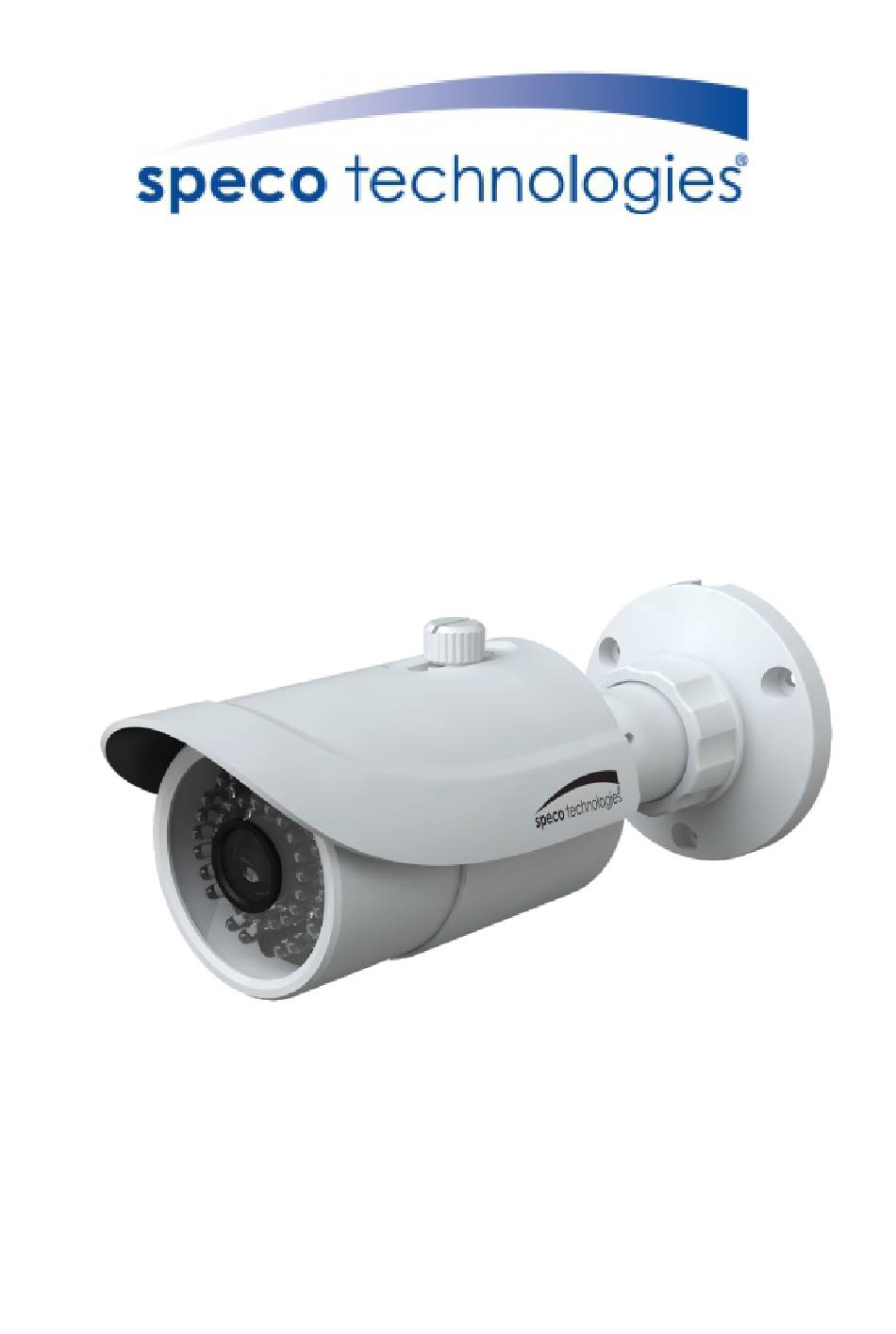

- Page 1 VLB1TW Manual...
-
Page 2: Warnings And Cautions
VLB1TW User Manual Thank you for purchasing a Speco Technologies HD-TVI camera. Please read this manual carefully for correct use of the product and keep it for reference purposes. ►Warnings and Cautions ■ Disclaimer Speco Technologies is constantly developing and improving products. - Page 3 Do not drop the camera or subject it to Do not place the camera in extremely physical shock. hot or cold environment. Use only under temperature conditions It may cause production malfunction. between -4*F and +140*F.Provide good ventilation when using in high temperature conditions.
-
Page 4: Components And Accessories
► Components and Accessories Camera User manual Screwdriver Screws Drill Template Adapter Plate ► Overview Lens Cover Mounting Base Sun Shield Video Cable Power Cable Bracket Page 3... -
Page 5: Connecting To Monitor
► Connecting to Monitor HD-TVI DVR HD Monitor HD-TVI VIDEO IN VIDEO HDMI ► Connecting to Power Connect the adapter to the power input connector in accordance with the camera. The recommended adapter specification for the camera is DC12V. DC12V Page 4... -
Page 6: Installation
► Installation Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. 1. Drill the screw holes and the cable hole on the wall according to the drill template. 62.5mm 120°... - Page 7 camera on a monitor and then loosen the fixed ring to adjust the view angle of the camera. 360° Pan 90° Tilt 5. Focus and zoom adjustment ( If the model you get is fixed lens, please skip this step). Remove the lens cover and then adjust the focus and zoom screws to get a clear image.
- Page 8 ► Features This series of cameras adopt the latest HD-TVI technology and advanced circuit design, feature high definition and sensitivity, low noise and distortion and support HD video transmission with the common coaxial cable, ensuring the requirement of the HD monitoring in the traditional surveillance system.
-
Page 9: Specifications
► Specifications VLB1TW Model Image Sensor 1 / 3 '' CMOS Pixels 1920 x 1080 PAL / NTSC Signal System Min. Illumination 0 Lux ( LED ON ) Lens 2.8 ~ 12 mm 66 ~ 98 feet (depending on scene reflection)
