Summary of Contents for Transition Networks SM8TAT2DPB
- Page 1 Transition Networks SM8TAT2DPB Install Guide SM8TAT2DPB Managed Switch, 8-port Gigabit PoE+, 2-port SFP/RJ-45 Combo Install Guide 33698 Rev. A 33698 Rev. A https://www.transition.com Page 1 of 23...
- Page 2 Anyone using this product in such an application without express written consent of an officer of Transition Networks does so at their own risk, and agrees to fully indemnify Transition Networks for any damages that may result from such use or sale.
-
Page 3: Compliance And Safety Statements
(SM8TAT2DPB) in the “Search” box at our website at https://www.transition.com. For Transition Networks Drivers, Firmware, Manual, etc. go to the Product Support webpage (no logon required). For Transition Networks Application Notes, Brochures, Data Sheets, Specifications, etc. go to the Support Library (no registration required). 33698 Rev. A https://www.transition.com... -
Page 4: Table Of Contents
Transition Networks SM8TAT2DPB Install Guide Contents Safety Warnings and Cautions ........................ ii Compliance and Safety Statements ......................3 1. Introduction ............................5 Overview ............................. 5 Front Panel ............................5 LED Descriptions ..........................5 Mode/Reset button.......................... 7 Back Panel ............................8 2. -
Page 5: Introduction

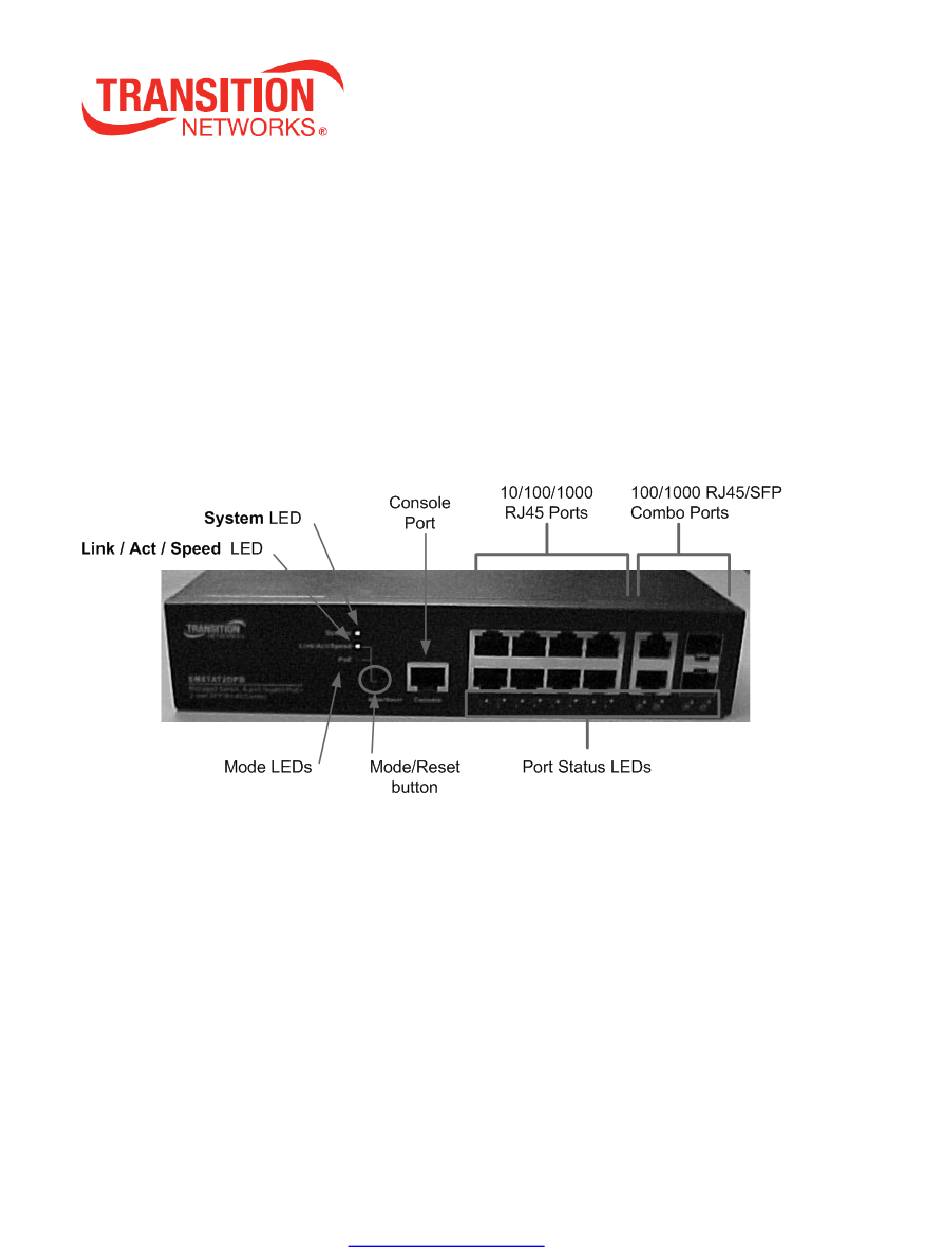

This guide describes hardware installation and basic troubleshooting for these managed switches. Front Panel The SM8TAT2DPB switch front panel has system and port LEDs for installation and troubleshooting and the Mode/Reset button. The SM8TAT2DPB front panel is shown and described below. - Page 6 Transition Networks SM8TAT2DPB Install Guide Mode LEDs The Mode LEDs indicate the mode of all RJ45/SFP ports on the switch. Users can press the Mode/Reset button sequentially to switch between the two different modes (Link/Activity/Speed mode and PoE mode). Color...
-
Page 7: Mode/Reset Button
Transition Networks SM8TAT2DPB Install Guide The port has no active network cable connected, or it is not established a link to connected device. Otherwise, the port may have been disabled through the switch user interface. When PoE Mode LED Lit... -
Page 8: Back Panel
Transition Networks SM8TAT2DPB Install Guide Back Panel The SM8TAT2DPB back panel is shown below. For a detailed description of the management features, refer to the full Web User Guide 33698 Rev. A https://www.transition.com Page 8 of 23... -
Page 9: Installation
After firmware upgrade, switch automatically moves configuration to latest firmware version. Warning: this case must be grounded. No DC input may be grounded. The SM8TAT2DPB is compliant with 802.3at in Environment A when using an isolated power supply. For 802.3at Environment B applications, use mid-span injector (s), e.g. -
Page 10: Package Contents
Transition Networks SM8TAT2DPB Install Guide Package Contents Verify that you received these iterms. SM8TAT2DPB GbE Management Switch Four adhesive rubber feet Mounting Accessory (for 19”Rack Shelf, Optional) Quick Start Guide AC Power cord Console cable ... -
Page 11: Mounting The Switch In A 19-Inch Rack
Transition Networks SM8TAT2DPB Install Guide Mounting the Switch in a 19-inch Rack Step1. Attach the mounting brackets to both sides of the chassis with screws. Figure 4 Attaching mounting brackets to the switch Step2. Place the switch on a rack shelf in the rack. Push the switch in until the oval holes in the brackets align with the mounting holes in the rack posts. -
Page 12: Mounting The Switch On A Desk Or Shelf
Transition Networks SM8TAT2DPB Install Guide Mounting the Switch on a Desk or Shelf Step1. Verify that the workbench is sturdy and reliably grounded. Step2. The rubber feet are included in the accessory kit. Attach the four adhesive rubber feet to the bottom of the switch. -
Page 13: Installing Sfp Modules
Parity—None Stop bit—1 Data bits—8 Flow control—none The default username is “admin” and password is “admin”. Refer to the SM8TAT2DPB CLI Reference for command line interface (CLI) information. 33698 Rev. A https://www.transition.com Page 13 of 23... -
Page 14: Initial Configuration Via Web Gui
3. Initial Configuration via Web GUI After you power up the switch for the first time, you can configure the switch using a Web browser. For more information about managing the switch, see the SM8TAT2DPB Web User Guide. To begin with the initial configuration stage, you must reconfigure your PC’s IP address and subnet mask so as to make sure the PC can communicate with the switch. - Page 15 Note: The factory default Username of the switch is admin. The factory default Password of the switch is admin. For more information about managing the switch, see the SM8TAT2DPB Web User Guide. 33698 Rev. A https://www.transition.com...
-
Page 16: Troubleshooting
Transition Networks SM8TAT2DPB Install Guide 4. Troubleshooting Troubleshooting Chart The following table lists Issues, Causes, and Actions to possible problems. Table 4 Troubleshooting Chart Issue Cause Action 1. Check if correct power cord is connected firmly to the switch and to the AC outlet socket. -
Page 17: Specifications
Transition Networks SM8TAT2DPB Install Guide 5. Specifications Hardware Specifications Port Configuration 10M/100M/1G RJ45 Ports Eight (8 Gigabit PoE+ ports) GbE RJ45/SFP Combo Port Two (2 SFP/RJ-45 Combo ports) Console Port One RJ45 port Total Ports 10 ports total PoE Function IEEE802.3at (PoE+ 30W) -
Page 18: Software Specifications
Transition Networks SM8TAT2DPB Install Guide Software Specifications Layer 2 Switching Standard Spanning Tree 802.1d Rapid Spanning Tree (RSTP) 802.1w Spanning Tree Protocol (STP) Multiple Spanning Tree (MSTP) 802.1s Link Aggregation Control Protocol (LACP) IEEE 802.3ad Up to 13 groups Trunking... - Page 19 Transition Networks SM8TAT2DPB Install Guide MAC address Prevents illegal IP address from accessing to specific port in the IP Source Guard switch RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch is a client Prevents traffic on a LAN from being disrupted by a broadcast,...
- Page 20 Transition Networks SM8TAT2DPB Install Guide enabling performance optimization, accounting/billing for usage, and defense against security threats Used by network devices for advertising their identities, IEEE 802.1ab (LLDP) capabilities, and neighbors on an IEEE 802ab local area network Support LLDP-MED extensions...
-
Page 21: Service, Warranty & Tech Support
If no authorization is obtained, or the product is deemed not repairable, Transition Networks will retain the $200.00 service charge and return the product to the customer not repaired. Non-warranted products that are 33698 Rev. -
Page 22: Contact Us
Transition Networks reserves the right to charge a $50 fee for all testing and shipping incurred, if after testing, a return is classified as “No Problem Found.”... - Page 23 Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343 USA tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 Copyright© 2016 Transition Networks. All rights reserved. Printed in the U.S.A. SM8TAT2DPB Install Guide 33698 Rev. A 33698 Rev. A https://www.transition.com...
