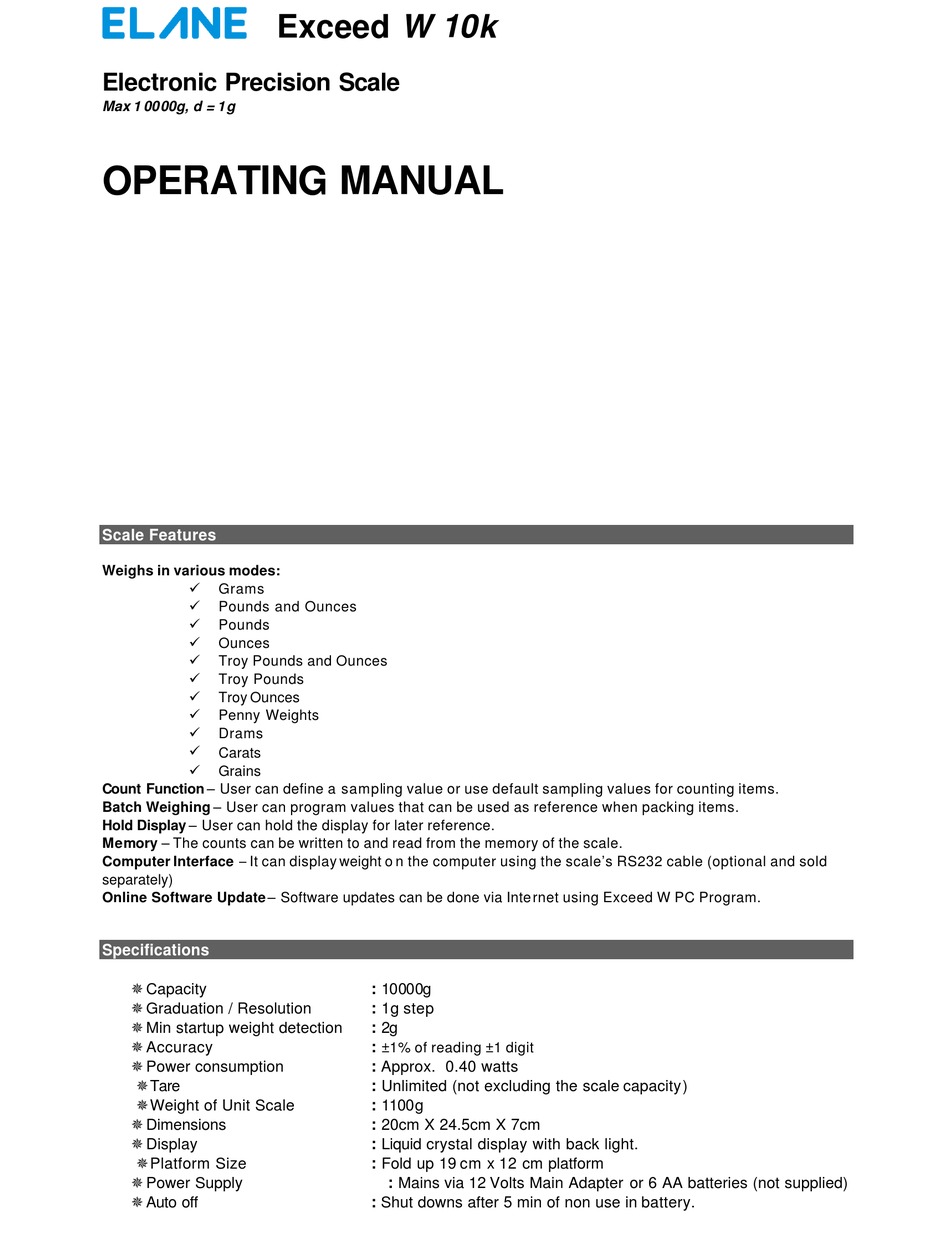

Exceed W 10k

Electronic Precision Scale

Max 1 0000g, d = 1g

OPERATING MANUAL

Scale Features

Weighs in various modes:

Grams

Pounds and Ounces

Pounds

Ounces

Troy Pounds and Ounces

Troy Pounds

Troy Ounces

Penny Weights

Drams

Carats

Grains

Count Function – User can define a sampling value or use default sampling values for counting items.

Batch Weighing – User can program values that can be used as reference when packing items.

Hold Display – User can hold the display for later reference.

Memory – The counts can be written to and read from the memory of the scale.

Computer Interface

It can display weight o n the computer using the scale's RS232 cable (optional and sold

–

separately)

Online Software Update – Software updates can be done via Inte rnet using Exceed W PC Program.

Specifications

¯ Capacity

¯ Graduation / Resolution

¯ Min startup weight detection

¯ Accuracy

¯ Power consumption

¯Tare

¯Weight of Unit Scale

¯ Dimensions

¯ Display

¯Platform Size

¯ Power Supply

¯ Auto off

: 10000g

: 1g step

: 2g

±1% of reading ±1 digit

: Approx. 0.40 watts

: Unlimited (not excluding the scale capacity)

: 1100g

: 20cm X 24.5cm X 7cm

: Liquid crystal display with back light.

: Fold up 19 cm x 12 cm platform

: Mains via 12 Volts Main Adapter or 6 AA batteries (not supplied)

: Shut downs after 5 min of non use in battery.

Table of Contents

Need help?

Do you have a question about the Exceed W 10k and is the answer not in the manual?

Questions and answers

Summary of Contents for Elane Exceed W 10k

Page 1 Exceed W 10k Electronic Precision Scale Max 1 0000g, d = 1g OPERATING MANUAL Scale Features Weighs in various modes: ü Grams ü Pounds and Ounces ü Pounds ü Ounces ü Troy Pounds and Ounces ü Troy Pounds ü Troy Ounces ü...
Page 2 PREPARING THE SCALE FOR USE (i) Fit the weighing platform to the body of the scale via the location points, mak ing sure that the platform opens toward the front (keyboard) end of the scale. (ii) Plug the mains adapter supplied with the scale into the mains and connect the adapter's output plug to the input socket at the rear of the scale.
Page 3 Tare Pressing this key will set the weight/count to zero. This is useful if you have to take the weight with the container. Put the empty container and press Tare, the scale will zero itself now you can put the items to count/weigh and the scale will only display the weight/count of the items excluding th e container.
Page 4 Exceed W 10kg scale is capable of online software update. This means that you can instantly update your scale’s software if you are connected to the Internet. Software updat es are issued by Elane in cases where there are revisions in the scale software. Revisions include: software enhancements and improvements, error correction, and additional scale functions which are deemed necessary.
Page 5 in the grains onto the scale’s platform). If you use the Exceed W scale to weigh items that are always above the scale’s minimum weight, this will not be a problem and the Zero Tracking software will work fine on the scale. Contrary to the Zero Tracking software, the No Zero Tracking software can handle weighing of items that are below the scale’s minimum weight.
