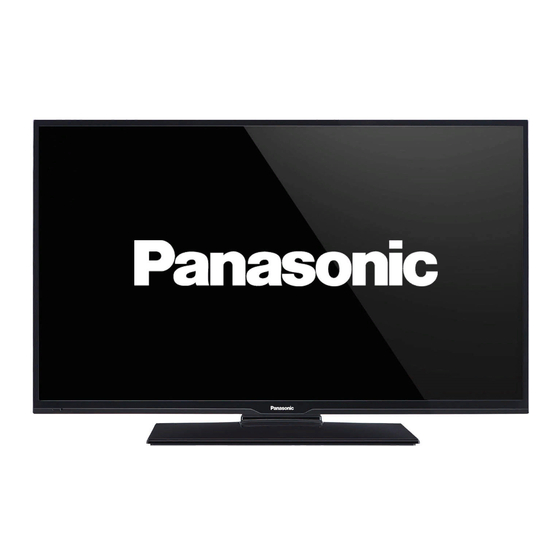

- Page 1 OPERATING INSTRUCTIONS TX-55C320B COLOUR TELEVISION WITH REMOTE CONTROL...
-
Page 2: Table Of Contents
Contents Safety Information ..........3 Markings on the Product.........3 Maintenance ............4 Assembling / Removing the pedestal .....5 When using the wall-hanging bracket.....5 Environmental Information........5 Features ..............6 Accessories Included..........6 Standby Notifications ..........6 TV Control Buttons & Operation ......6 Inserting the Batteries into the Remote ....7 Connect Power ............7 Antenna Connection ..........7 Notification ..............7... -
Page 3: Safety Information
• Ensure that no open flame sources, such as lit Safety Information candles, are placed on top of the TV. • To prevent injuries, this TV must be securely CAUTION attached to a wall by carefully following the RISK OF ELECTRIC SHOCK instructions (if the option is available). -
Page 4: Maintenance
Maintenance WARNING First, remove the mains plug from the mains Do not ingest the battery, Chemical Burn socket. Hazard Display panel, Cabinet, Pedestal (The accessories supplied with or) This pro- Regular care: duct may contain a coin/button cell battery. Gently wipe the surface of the display panel, cabinet, If the coin/button cell battery is swallowed, or pedestal by using a soft cloth to remove dirt or it can cause severe internal burns in just 2... -
Page 5: Assembling / Removing The Pedestal
Assembling / Removing the pedestal When using the wall-hanging bracket Preparations Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket. Take out the pedestal(s) and the TV from the packing case and put the TV onto a work table with the screen Holes for wall-hanging bracket installation;... -
Page 6: Features
If pressed Right button while Auto option is selected or Standby Notifications Left button while Custom option is selected, “Screen If the TV does not receive any input signal (e.g. from will be off in 15 seconds.” message will be displayed aerial or HDMI source) for 5 minutes, it will go on the screen. -
Page 7: Inserting The Batteries Into The Remote
Authorized Representative: Manufactured under license from Dolby Laboratories. Panasonic Testing Centre Dolby and the double-D symbol are trademarks of Panasonic Marketing Europe GmbH Dolby Laboratories. Winsbergring 15, 22525 Hamburg, Germany YouTube and the YouTube logo are trademarks of Web Site: http://www.panasonic.com Google Inc. -
Page 8: Specification
• Most major credit and debit cards accepted. Audio Output Power • All enquiries transactions and distribution facilities 2 x 10 W (WRMS.) (10% THD) are provided directly by Panasonic UK. Power Consumption (W) 140 W • It couldn’t be simpler! Weight (Kg) 22 Kg •... -
Page 9: Remote Control
Remote Control Standby: Switches On / Off the TV Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen. TV: Displays channel list / Switches to TV Source Mute: Completely turns off the volume of the TV Volume +/- Menu: Displays TV menu Directional buttons: Helps navigate menus, content... -
Page 10: Connections
Connections Connector Type Cables Device NOTE: When connecting a device via the YPbPr or Back Scart AV inputs, you must use the Connection connection cables to enable (back) connection. See the illustrations on the left side. | To enable YPBPR PC/YPbPr audio, you will need YPbPr Video to use the Back Audio inputs... -
Page 11: Switching On/Off
channels of it will be listed on the top of the Channel Switching On/Off List. When finished, press OK to continue. To Switch the TV On You can activate Store Mode option at this point. Connect the power cord to a power source such as a This option will configure your TV’s settings for store wall socket (220-240V AC, 50 Hz). -
Page 12: Media Browser Menu
It is recommended to use the TV’s USB input(s) CEC and CEC RC Passthrough directly, if you are going to connect a USB hard disk. This function allows to control the CEC-enabled Note: When viewing image files the Media Player menu devices, that are connected through HDMI ports by can only display 1000 image files stored on the connected using the remote control of the TV. -
Page 13: Tv Menu Contents
TV Menu Contents Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode Mode can be set to one of these options: Cinema, Game, Sports, Dynamic and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen. - Page 14 Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Headphone Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
- Page 15 Setup Menu Contents Conditional Access Controls conditional access modules when available. Language You may set a different language depending on the broadcaster and the country. Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock(may not be available depending on the country selection in the First Time Installation) and Child Lock in this menu.
- Page 16 This setting configures the power up mode preference. Last State and Standby Power Up Mode options are available. Virtual Remote Enable or disable the virtual remote feature. With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
-
Page 17: General Tv Operation
TV. You can change the default PIN of the CI CAM General TV Operation using this option. Using the Channel List Note: Default PIN can be set to 0000 or 1234. If you have The TV sorts all stored stations in the Channel List. defined the PIN(is requested depending on the country You can edit this channel list, set favourites or set selection) during the First Time Installation use the PIN that... -
Page 18: Teletext Services
Event Options Software Upgrade Use the directional buttons to highlight an event and Your TV is capable of finding and updating the firmware press OK button to display Event Options menu. The automatically via the broadcast signal or via Internet. following options are available. -
Page 19: Troubleshooting & Tips
Troubleshooting & Tips PC Input Typical Display Modes Tv will not turn on The following table is an illustration of some of the typical video display modes. Your TV may not support Make sure the power cord is plugged in securely to all resolutions. -
Page 20: Av And Hdmi Signal Compatibility
AV and HDMI Signal Compatibility Source Supported Signals Available SECAM NTSC4.43 (SCART) NTSC3.58 RGB 50/60 SECAM NTSC4.43 Side AV NTSC3.58 S-VIDEO 50Hz (PAL) S-VIDEO 60Hz (NTSC) 480i, 480p 60Hz 576i, 576p 50Hz YPbPr 720p 50Hz,60Hz 1080i 50Hz,60Hz 480i, 480p 60Hz 576i, 576p 50Hz 720p... -
Page 21: Supported Video File Formats For Usb Mode
Supported Video File Formats for USB Mode Extension Video Codec SPEC (Resolution) & Bit Rate .dat, vob MPEG1/2 1080P@30fps - 40 Mbps MPEG1/2, .mpg, .mpeg MPEG4 MPEG1/2, H.264, H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps MVC: .ts, .trp, .tp AVS, MVC 1080P@30fps - 62.5 Mbps Other: 1080P@30fps - 40Mbps .mp4, .mov,... -
Page 22: Supported Audio File Formats For Usb Mode
Supported Audio File Formats for USB Mode Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps .mp3, MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3... -
Page 23: Supported Subtitle File Formats For Usb Mode
Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps .wav LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz IMA-ADPCM, 384Kbps 8KHz ~ 48KHz MS-ADPCM G711 A/mu-law 64Kbps ~ 128Kbps 8KHz MPEG1/2 Layer3... -
Page 24: Supported Dvi Resolutions
Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information. 72Hz 75Hz 56Hz 60Hz 66Hz 70Hz 640x400 þ 640x480 þ þ þ... -
Page 25: Connectivity
Configuring Wired Device Settings Connectivity Network Type The Network Type can be selected as Wired Device, Wired Connectivity Wireless Device or Disabled, in accordance with the To Connect to a Wired Network active connection to the TV set. Select this as Wired • You must have a modem/router connected to an Device if you are connecting via an ethernet. - Page 26 Connecting to your mobile device via WiFi • Use a LAN connection for quicker file sharing between other devices like computers. • If your mobile device has WiFi feature, you can connect • The frequency and channel differ depending on the area. it to your TV via a router, in order to access the content in your device.
-
Page 27: Audio Video Sharing
Internet Connection Not Available / Audio Video Audio Video Sharing Sharing Not Working Audio Video Sharing support is only available in the If the MAC address (a unique identifier number) of Media Player Folder mode. To enable folder mode, your PC or modem has been permanently registered, go to the Setup tab in the main media browser screen it is possible that your TV might not connect to and press OK. -
Page 28: Internet Portal
If applications are missing they are listed and Possible application dependent problems may be caused by the content service provider. must be installed before continuing installation. Portal service content and the interface may be changed at 5. Click the Install button. The integrated serial any time without prior notice. -
Page 29: Internet Browser
Internet Browser To use the internet browser, please select the internet browser logo from the portal section. (*)The appearance of the browser logo may change Refresh Home Page Address Bar History Bookmarks Zoom Previous Next Settings Remote control shortcuts Quick Access (Zoom in-out/Back/Home) •... -
Page 30: Important Instruction
Important Instruction For your own safety read following instruction carefully before attempting to connect this unit to the mains supply. MAINS (AC) OPERATION The wires in the mains lead are coloured in accordance with the following code : GREEN & FUSE YELLOW (Earth) - Page 31 Product fiche Supplier Panasonic Corporation TX-55C320B Model ID Energy efficiency class 139 cm / 55 inches Visible screen size (diagonal) 86 W On mode average power consumption 125 kWh Annual energy consumption *1 0,50 W Standby power consumption *2 0,01...
- Page 32 Español Svenska Norsk Suomi Español Svenska Norsk Suomi Español Svenska Norsk Suomi Magyar Česky Ελληνικά Español Svenska Norsk Suomi Deutsch Nederlands Italiano Français Deutsch Deutsch Nederlands Nederlands Italiano Italiano Français Français Lietuvių k. Português Dansk English - 32 -...
- Page 33 Česky Ελληνικά Türkçe Slovensky Eesti Česky Česky Ελληνικά Ελληνικά Türkçe Türkçe Hrvatski Slovensky Slovensky Eesti Eesti Hrvatski Hrvatski Česky Ελληνικά Türkçe Slovensky Eesti Hrvatski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski Srpski...
