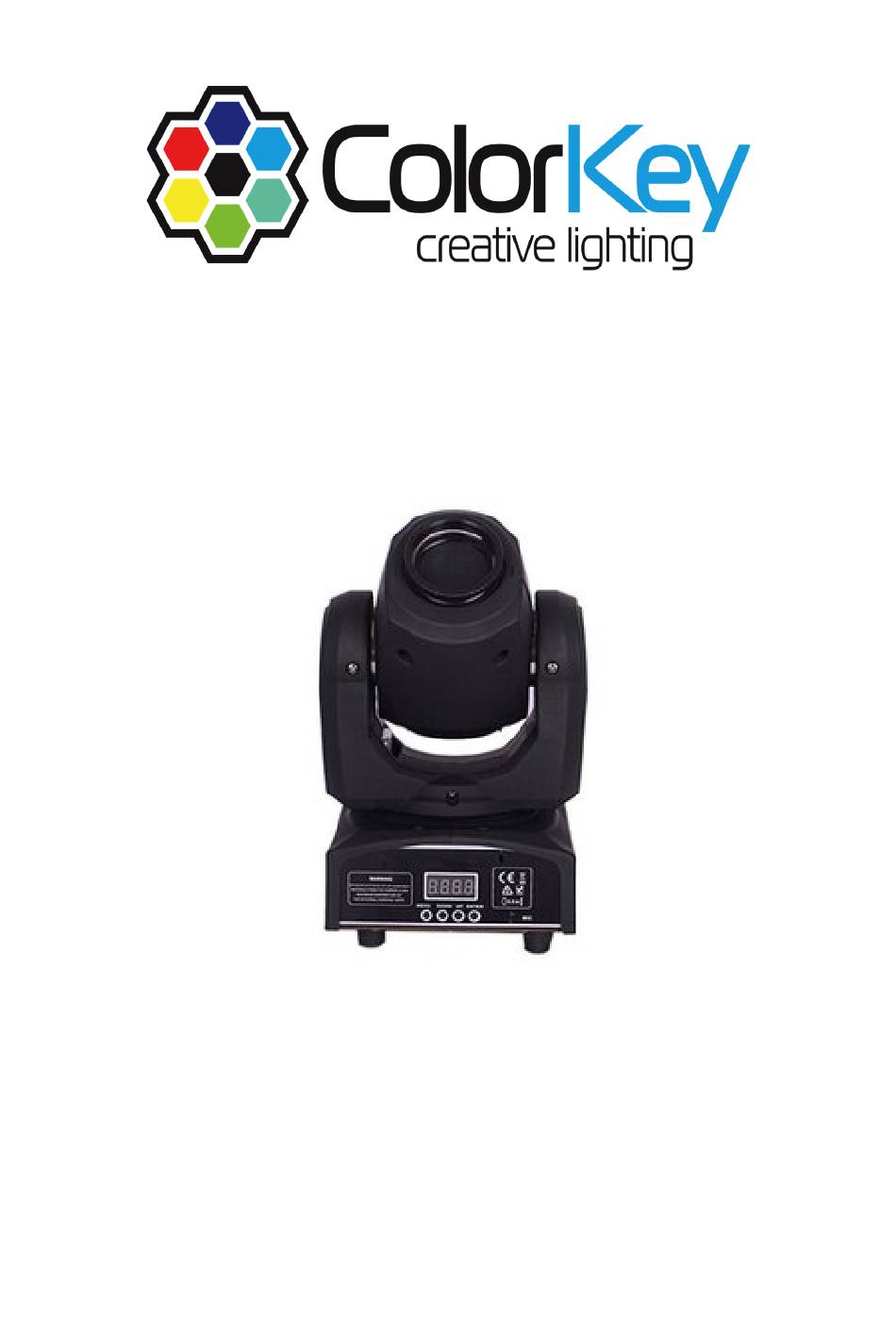

- Page 1 Mover MicroSpot CKU01-5000 (US) / CKE01-5000 (EU) USER MANUAL...
- Page 2 Introduction Thank you for purchasing the ColorKey Mover MicroSpot. Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Ø Packing list n 1x Mover MicroSpot moving head fixture n...
-
Page 3: Display Operation
Display Operation Ø MENU: Access the menu/Scroll through menu options Ø ENTER: Open/Select the current menu option Ø UP: Scroll through menu selection or parameter increase Ø DOWN: Scroll through menu selection or parameters decrease... -
Page 4: Dmx Values
DMX Values 11 channel mode 9 channel mode Value Function 000-255 Pan (fine) 000-255 Tilt Tilt (fine) Color 000-007 Color 1 008-014 Color 2 015-021 Color 3 022-028 Color 4 029-035 Color 5 036-042 Color 6 043-049 Color 7 050-056 Color 8 057-127 Half color... -
Page 5: Menu Guide
Mode 000-069 070-079 Black out when Pan/Tilt rotating 080-089 090-099 Black out when Color wheel rotating 100-109 110-119 Black out when Gobo wheel rotating 120-199 200-209 Reset 210-249 250-255 Sound function 000-255 Dimming mode Menu Guide Main Menu Sub Menu Function ADDR 0-512... -
Page 6: Dmx Connections
DMX Connections Ø DMX Cable： The Mover MicroSpot can be controlled via DMX using a 3-pin XLR connection. The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal Noted：In order to avoid failures and interference signal transmission，we connect a... -
Page 7: Master/Slave Mode Operation
Master/Slave Mode Operation Master/Slave Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization. -
Page 8: Technical Information
Working Environment：up to 40℃; Over heating protection IP rate：IP20 Notice to consumer: ColorKey offers a 1-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at...
