KEY FEATURES
• Compact lightweight moulded enclosure
• WTW driver configuration
• Dual 8" woofers, 1.4" HF compression driver
• High quality, low distortion, compression driver design
• Acoustic filter control for stable 100° horizontal coverage • Class D amplifier module with SMPS
• Linear phase, constant power crossover design
INTRODUCTION
The AX800A has been developed with total optimization of the speaker components in mind – from the lightweight woofer cone materials through
to the titanium diaphragm used in the high frequency compression driver. They've been developed in close cooperation with our supply partners,
The AX800A is processed by 40bit, 96kHz floating point CORE DSP and powered by DA
SERIES class D amplifier modules, with audio quality that is comparable to some of the
best analogue Class A-B designs. The output power is optimized specifically to the drive
units, sharing 900 watts between both woofers and delivering 300 watts to the high
frequency band.
TECHNICAL SPECIFICATION
SYSTEM
System's Acoustic Principle
Frequency Response (±3dB)
Horizontal/Vertical Coverage Angle 100° x 10° (-6dB)
Maximum Peak SPL @ 1m
TRANSDUCERS
LF
HF
ELECTRICAL
Input Impedance
Input Sensitivity
Signal Processing
Direct access Controls
* Nominal consumption is measured with pink noise with a crest factor of 12 dB,
this can be considered a standard music program.
revision 2018-11-21
USER MANUAL
AX800A
active vertical array loudspeaker
who act in many ways as an extension of our R&D acoustics team.
Housing two eight-inch low frequency drivers, which are transmission line back-loaded for a significant reduction
in low range frequencies at the rear of the speaker, the AX800A delivers natural cardioid behaviour and therefore
clean mid-bass reproduction. This is especially important in preventing the "boxy" mid-bass sound commonly
obtained from regular bass-reflex enclosures, or the build up of excessive low-mid frequencies behind an array and
on stage that can be annoying for performers.

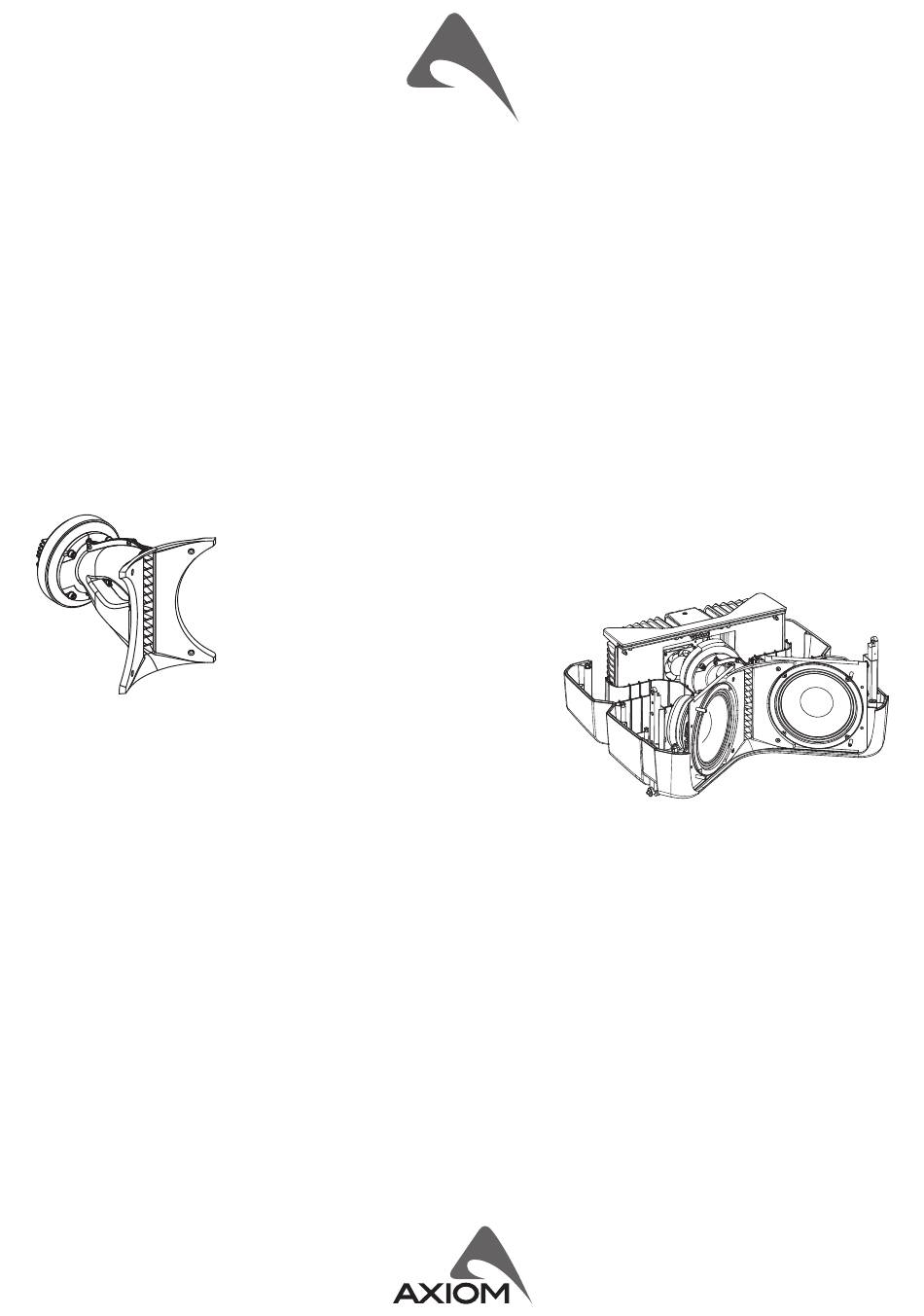

Completing the driver complement is a 1.4-inch titanium
diaphragm compression driver loaded by an acoustic
transmission line waveguide providing natural sounding
high frequencies. The components are arranged in a very
compact WTW driver configuration, which lends itself
to correct line array behaviour, providing wide and even
horizontal coverage of any venue or audience space.
Line Array Element
Short Transmission Line LF Back Loading
Acoustic Transmission Line HF Waveguide
85 Hz – 16.8kHz (Processed)
132 dB
Two 8"(200mm), 2" (38mm) voice coil, 8Ω
each, paralleled
One 1.4" driver, 2.5" (64mm) edgewound voice
coil, titanium diaphragm, 8Ω
20 kΩ balanced, 10 kΩ unbalanced
+4 dBu / 1.25 V
CORE processing, 96kHz / 40bit floating
point SHARC DSP, 24 bit AD/DA converters
4 Presets (Standard/Long Throw/Down Fill-Single
Box, User), Network Termination, GND Link.
• Transmission Line back loading for clean mid-bass reproduction
• Natural sound Transmission Line HF projection wave-forming device
• 96KHz / 40 bit floating point CORE processing with PRONET remote control
• Array optimized presets
• Easy-to-use rigging system
Remote Controls
Network protocol
Amplifier Type
Output Power
Mains Voltage Range (Vac)
Consumption*
IN / OUT Connectors
IN / OUT Network Connectors
Mains Connector
Mains Link Connector
Cooling
ENCLOSURE & CONSTRUCTION
Dimensions (W x H x D)
Enclosure Material
Rigging system
Front Suspension
Back Suspension
Net Weight
PRONET control software
CANBUS
Class D amplifier with SMPS
900W + 300W
230 V~ ±10% or 115 V~ ±10% 50/60 Hz
575 W (nominal) 1200 W (max)
Neutrik XLR-M / XLR-F
ETHERCON® (NE8FAV)
PowerCon® (NAC3MPA)
PowerCon® (NAC3MPB)
Variable speed DC fan
600mm (23.6") x 265.5mm (10.5") x 516mm (20.3")
Polypropylene
Aluminium Fast Link structure
High Strength Steel with ¼ Fast Pin
25 Kg (55.1 lbs)
Advertisement
Table of Contents
Summary of Contents for Axiom AX800A
- Page 1 INTRODUCTION The AX800A has been developed with total optimization of the speaker components in mind – from the lightweight woofer cone materials through to the titanium diaphragm used in the high frequency compression driver. They’ve been developed in close cooperation with our supply partners, who act in many ways as an extension of our R&D acoustics team.
-
Page 2: Mechanical Drawing
Hybrid cable 1x Cat6e - 2x Audio with NEUTRIK connectors 20/30/40/60/80 m Length AVCAT5PROxx Cat5e on cable drum, RJ45 plugs and NEUTRIK connectors 30/50/75 m Length KPTAX800 Flying bar for 4 AX800A array loudspeakers KPTAX800L Flying bar for 12 AX800A array loudspeakers AXFEETKIT... - Page 3 (grey). This is connected in parallel with the MAINS ~ / IN. The maximum load applicable depends on the mains voltage. With 230V~ we suggest to link a maximum of 5 AX800A loudspeakers, with 120V~ we suggest to link a maximum of 3 AX800A loudspeakers.
-
Page 4: Power Amplifiers
POWER AMPLIFIERS Powering the loudspeaker drivers is a well-proven DA series Class D amplifier module used in many of the Axiom powered loudspeaker products, with audio quality that is comparable to some of the best analogue Class A-B designs, but with the benefit of lower weight and better than 90% efficiency. - Page 5 EXAMPLE OF INSTALLATION IN A THEATRE WITH BALCONY Here you can see an example of the use of different PRESETS in an AX800A flown array installed TOP BOX in a big theatre with balcony. The TOP BOXES of the array are aiming...
- Page 6 SINGLE PINPOINT FOR properties. STRAIGHT SHACKLE Download the EASE Focus 3 app from the AXIOM website at http://www.axiomproaudio.com/ clicking on downloads section of the product. Use the menu option Edit / Import System Definition File to...
- Page 7 AIMING and SUSPENDING INSTRUCTIONS Fly Bar and accessories KPTAX800 FLY BAR AND ACCESSORIES The AX800A systems are built to allow the suspension of STRAIGHT SHACKLE 16mm array with variable shape and dimensions. Thanks to a suspension mechanism designed to be functional, flexible...
- Page 8 KPTAX800L FLY BAR AND ACCESSORIES STRAIGHT SHACKLE 16mm M10 FOOT FOR IDENTIFICATION AND STACKED INSTALLATION DATA LABEL (OPTIONAL) FRONT BOX PIN ATTACHMENT SUSPEND HOLE INDICATOR SUSPEND HOLES FRONT BOX PIN ATTACHMENT REAR BOX PIN ATTACHMENT KPTAX800L FLY BAR ASSEMBLY SEQUENCE 2’...
- Page 9 KPTAX800 FLY BAR FOR FLOWN ARRAY Fly bar suspension and angle setup (centre of gravity) The figure at the top of this page shows where the normal centre of gravity is with one box or several boxes arranged in a line. Usually the boxes are arranged to make an arc for the best coverage of the audience, so the center of gravity moves backward.
- Page 10 • Always secure ground stacked setups against movement and possible tipping over. • A maximum of 4 x AX800A cabinets with the KPTAX800L Fly bar serving as ground support are allowed to be set up as ground stack. In the stack configuration you have to use the three optional BOARDACF01 feet and the fly bar must be mounted upside down on the ground.
- Page 11 Stacked System with KPAX8 pole adapter WARNING! • A maximum of 2 x AX800A can be installed on a pole using the KPAX8 pole adapter. • The KPAX8 can be installed on a SW1800A sub-woofer (preferably in horizontal position) using the DHSS10M20 adjustable sub-Speaker ø...
-
Page 12: Limited Warranty
LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase. If any defects are found in the materials or workmanship or if the product fails to function properly during the applicable warranty period, the owner should inform about these defects the dealer or the distributor, providing receipt or invoice of date of purchase and defect detailed description.
