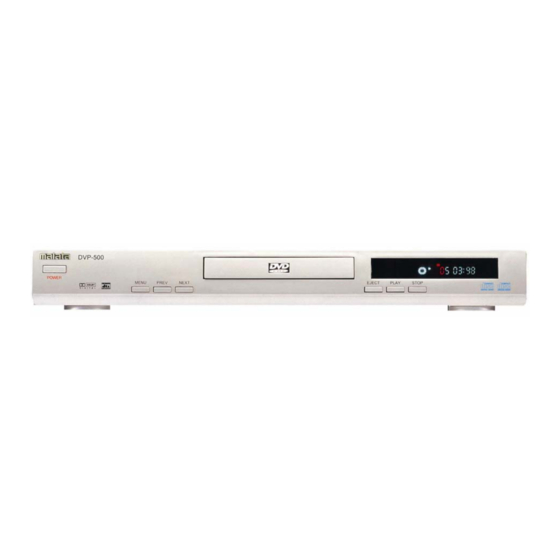

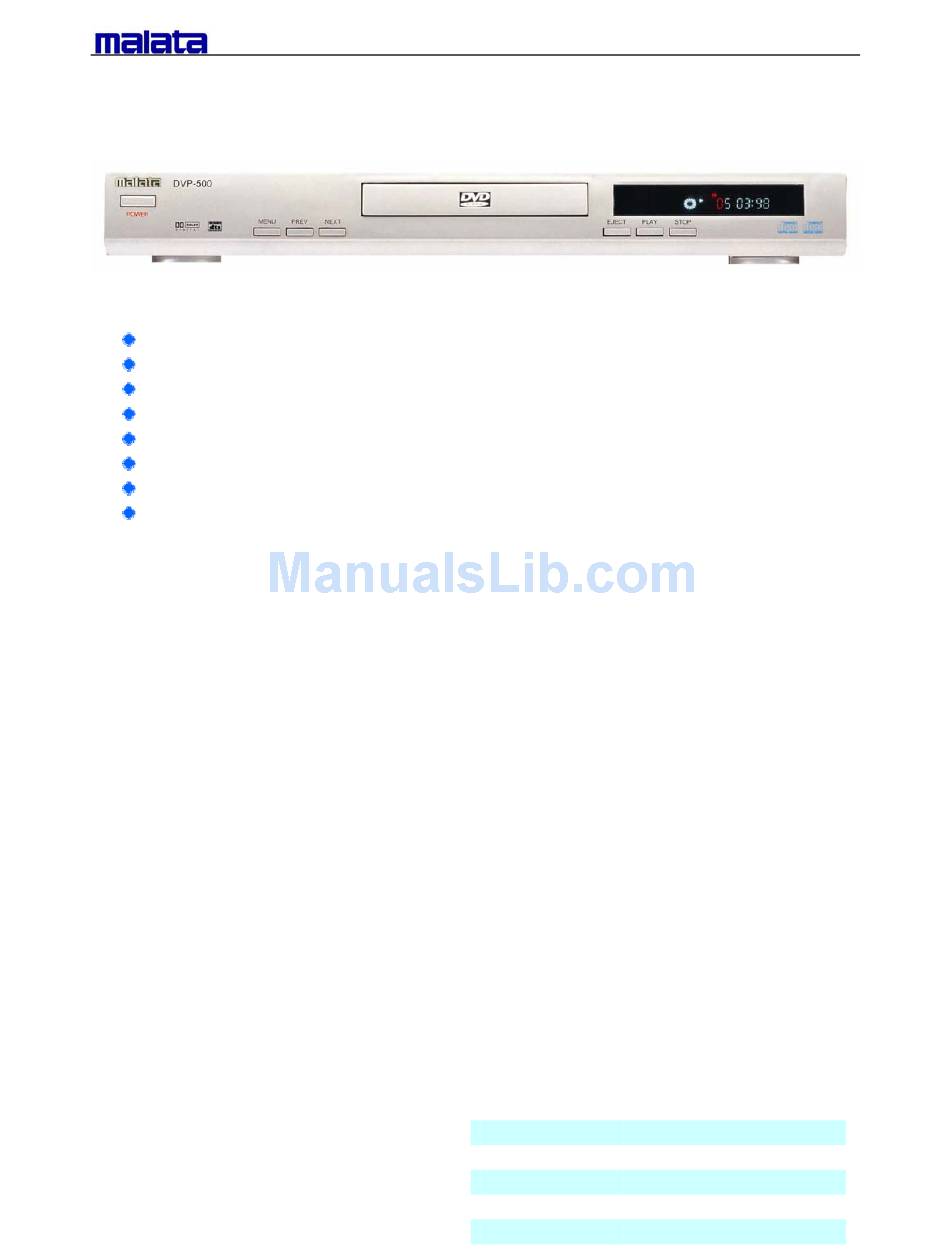

PROGRESSIVE SCAN DVD PLAYER
With progressive scan function for higher vivid picture
Fully compatible with DVD, CD, MP3, CD-R, CD-RW discs
Built in AC-3 double decoder
With fully VIDEO output jack (VIDEO, S-VIDEO, YPbPr/YCbCr)
Optical and coaxial digital audio output
Compatible with full DVD playback function: multi-angle, multi-language, parent control, etc.
Wider voltage range of power supply
Full function remote control
Feature
Compatible disc type
TV system
TV type
Analog audio
Digital audio
Remote control
VFD display
Power supply
VIDEO output
Composite
Component
S-Video
Sepcification
Audio DAC
Audio level
Frequency Response
Dynamic range
S/N
Channel separation
Video DAC
Video level
Video resolution
Video S/N
DG
DP
Power consumption
DVD / VCD / CD / MP3 / CD-R / CD-RW
PAL/NTSC/AUTO
4:3 Letter-Box / Pan-scan / 16:9 wide
Built in Dolby digital 5.1 Channel decoding
DTS / Dolby Digital /MPEG / PCM
Available
Available
AC 100-240V
50 / 60 Hz
Available (RCA)
Available(YPbPr/YCbCr)
Available
96KHz 24Bit
2 Vp_p (1KHz)
20Hz-20KHz
90dB
≥90dB
90 dB
10 bit
1 Vp-p (75Ohm)
500 lines
60 dB
≤3%
≤5 deg
20w
AUDIO output
5.1 channel output
Coaxial output
Optical
Cabinet color
Gross weight
Unit dimension
Master carton
Container load
Available(RCA)
Available
Available
Silver

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVD1190 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for malata DVD1190

  • Page 1 PROGRESSIVE SCAN DVD PLAYER With progressive scan function for higher vivid picture Fully compatible with DVD, CD, MP3, CD-R, CD-RW discs Built in AC-3 double decoder With fully VIDEO output jack (VIDEO, S-VIDEO, YPbPr/YCbCr) Optical and coaxial digital audio output Compatible with full DVD playback function: multi-angle, multi-language, parent control, etc.

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS This symbol indicates that dangerous voltage instituting a risk of electric shock is present within this unit. This symbol indicates that there are ！ important operation instructions in the literature accompanying the appliance. CLASS 1 LASER PRODUCT CLASS 1 LASER PRODUCT This product has been listed as class 1 laser product.

  • Page 3: Advanced Functions

    FEATURES HIGH QUALITY PRODUCT 1. High Resolution Adopt an MPEG2 decoding format to achieve horizontal resolution more than 500 lines. 2. Excellent Timbre Built-in Dolby AC-3 decoder and DTS processor, output signals to realize high quality sound effects. 3. Screen Support 4:3 and 16:9 aspect ratios.

  • Page 4: About Discs

    ABOUT DISCS DISCS THAT CAN BE PLAYED DISC LOGO ◆ Software maker specifies the operation method of some DVD discs. Please refer to the instruction manual of disc. NOTES 1. Using of Discs Do not touch the playing surface of the compact disc.

  • Page 5: Parts Introduction

    PARTS INTRODUCTION FRONT PANEL POWER POWER MENU PREV NEXT MENU PREV NEXT 1. POWER button -Press to turn on or off the power. 2. MENU button -Press to display or close the disc menu. 3. PREV skip button -Press to select the previous menu or track.

  • Page 6: Display Panel

    PARTS INTRODUCTION DISPLAY PANEL DISC TYPE DISC TYPE PLAY/PAUSE PLAY/PAUSE CHA PTER/TRACK CHA PTER/TRACK REPEAT REPEAT REAR PANEL 1. Coaxial digital audio output jack 2. Component output jacks 3. Video output jack 4. 5.1ch audio output jacks - 5 - DOLBY DOUBLE-D DOLBY DOUBLE-D ANGLE...

  • Page 7: Usage Of Remote Control

    PARTS INTRODUCTION REMOTE CONTROL number buttons number buttons (clear setup in stop status) (clear setup in stop status) PREV SKIP button PREV SKIP button NEXT SKIP button NEXT SKIP button direction buttons direction buttons shift button shift button (in interlaced or progressive status) (in interlaced or progressive status) USAGE OF REMOTE CONTROL Open the battery case cover, and insert two “AAA”...

  • Page 8: System Connection

    SYSTEM CONNECTION ◆ Please turn off all relevant power before connection for the sake of safety. There are 5.1ch Audio Out, S-Video Out, Digital Audio Out (Optical, Coaxial) and ◆ Component Out, etc. You can choose any one to connect. PLAYER+TV The connection is shown as following: In this figure, there are VIDEO OUT, S-VIDEO OUT and COMPONENT OUT.
  • Page 9 SYSTEM CONNECTION 2. Y Cb Cr connection If a displaying equipment with Y Cb Cr jacks is connected, then you need to set up the player besides connecting the jacks with three Y Cb Cr cables: 1) In stop status, press SETUP button to enter the main menu. 2) Use Up/Down direction button to select “VIDEO OUTPUT”...
  • Page 10 SYSTEM CONNECTION PLAYER+COMMON AMPLIFIER ◆ Make some relevant setup in “SPEAKER SETUP”. ◆ You can select any one of video out connections according to the TV. PLAYER+AMPLIFIER WITH DIGITAL SIGNAL INPUT ◆ In “AUDIO SETUP”, set digital audio output to be “SPDIF/RAW” or “SPDIF/PCM”. ◆...

  • Page 11: Operation

    OPERATION Preparation： After connection, turn on the power of relevant equipment and select video input. 1. Turn on the player’s power Press POWER button on front panel to turn on the power and the player will search for the disc automatically. If there is a disc in, the player will play it.
  • Page 12 OPERATION LANGUAGE There are up to 8 kinds of audio languages in a DVD disc. When you play a multi-language DVD disc, press AUDIO button on remote control to select different audio language. SUBTITLE The DVD player can support up to 32 kinds of subtitles. When you play a multi-subtitle disc, press SUBTITLE button to select different subtitle.
  • Page 13 OPERATION CD PLAYBACK The player will play all tracks continuously in default status. You can press PREV/NEXT SKIP button or number buttons to select a certain track. MP3 PLAYBACK MP3 is the third audio compression format of international standard MPEG, which compresses the audio signal at the rate of 12:1.

  • Page 14: Jpeg Playback

    OPERATION JPEG PLAYBACK JPEG is a common picture format which has few bytes and low loss rate of picture. Hundreds of pictures can be stored in a disc in this format. In order to realize real digital album, use film to make ”PICTURE CD”, namely JPEG format. OPERATION 1.

  • Page 15: Playback Functions

    PLAYBACK FUNCTIONS STOP During playback, press STOP button on remote control to stop playback. For DVD discs, press STOP button once and the player will be in resumable status. If you press PLAY button, the player will play from the stopped point. PAUSE Press PAUSE/STEP button on remote control to pause, and press it continuously to achieve step-by-step playback.

  • Page 16: Program Playback

    PLAYBACK FUNCTIONS DISC INFORMATION DISPLAY Press OSD button on remote control to display the disc information. PROGRAM PLAYBACK Use PROGRAM button to activate program playback of CD discs. Operation steps: 1. In stop status, press PROGRAM button to enter program status. 2.

  • Page 17: System Setup

    SYSTEM SETUP SETUP MENU In stop status, press SETUP button on remote control to display a main menu (GENERAL SETUP, SPEAKER SETUP, AUDIO SETUP, PREFERENCES & EXIT SETUP). Operation steps： 1. Press SETUP button to enter the main menu. 2. Use Up/Down direction button to select the item you want to set and press OK button to enter it.

  • Page 18: Speaker Setup

    SYSTEM SETUP SPEAKER SETUP The speaker setup is shown as following: 1. DOWNMIX (LT/RT, STEREO, VSS & OFF) Select different item to output channel left/right signal, common stereo signal and virtual surround signal respectively. 2. CENTER (ON & OFF) 3. REAR (ON & OFF) 4.

  • Page 19: Password Change

    SYSTEM SETUP PREFERENCE The preferences is shown as following: 1. TV TYPE (MULTI, NTSC & PAL) You can select it according to the color system of TV connected. 2. VIDEO OUTPUT (S-VIDEO, Y PB/CB PR/CR & RGB) You can select the appropriate video output. 3.

  • Page 20: Troubleshooting

    TROUBLESHOOTING SYMPTOM Cannot set to be 5.1ch output. The player does not play or displays “NO DISC”. There is no sound. There is no picture. There is no picture in composite video status. Picture move up and down. Unsteady. Cannot continue to play and play a section repeatedly.

  • Page 21: Specifications

    SPECIFICATIONS Laser wavelength Video system Frequency response Audio signal-to-noise ratio Audio distortion + noise Channel separation Dynamic range Analog audio output Audio output Digital audio output Video output Video output S-Video output Power Power consumption Dimensions Weight (approx.) DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Manufactured under license from Dolby Laboratories.
