ALIBI ALI-NS1014VR Quick Installation Manual

ALI-NS1014VR 4 Megapixel
IP Dome Camera
Quick Installation Guide
This document guides you through the basic steps to install and configure the ALI-NS1014VR camera. This
camera features:
4 Megapixel 1/3 in. CMOS progressive scan sensor
•
High definition video streaming with Dual-stream video support
•
Video stream compression: H.264 standard and MJPEG
•
3D-DNR noise reduction and Digital Wide Dynamic Range (WDR)
•
Backlight compensation
•
65 ft IR range for night vision
•
Dual power capable - Power over Ethernet (PoE) or 12 Vdc
•
Weatherproof - IP66 rated and Vandalproof - IK10 rated
•
For more information about the features of these cameras, please refer to the ALI-IP Camera Software
User Manual.
Mounting
base
Dome
Assembly
IR array
Lens
Camera module
Black plastic
shield
Drop
cable
Gimbal
assembly
Micro SD card slot
Reset button

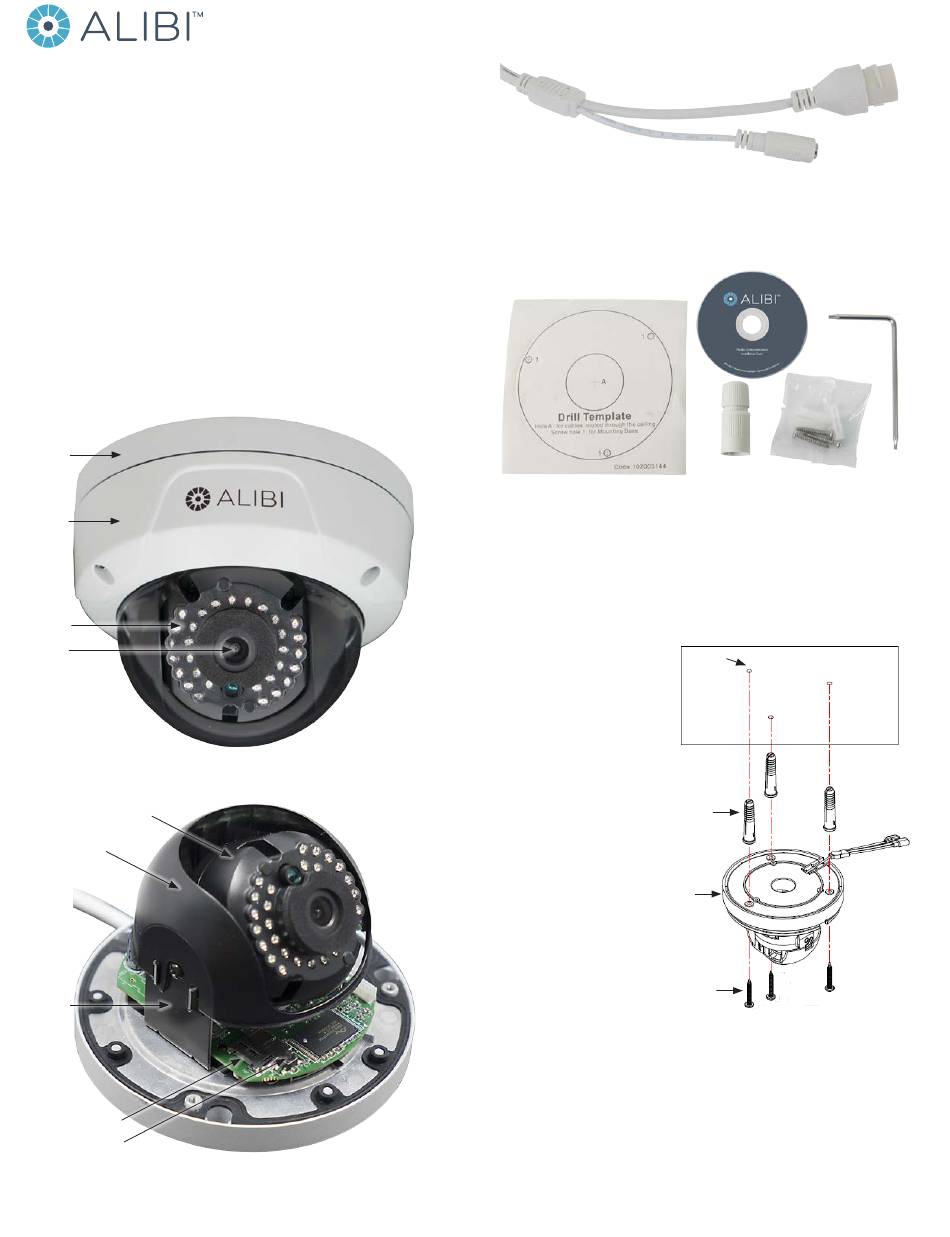

ALI-NS1014VR camera without the dome cover
www.observint.com
1
Camera drop cable connectors
What's in the box
Box contains this document with the items shown below.
Drill Template
This product also includes a junction box adapter plate for attaching the camera assembly onto a junction
box.
Step 1. Install the camera
1. Determine the best fasteners for securing the camera to mounting surface. The mounting hardware
provided is suitable for most surfaces. NOTE: A mounting plate adapter is provided for attaching the
camera to a junction box.
2. Using the Drill Template
provided, mark the location
of the mounting screw holes.
If the drop cable will be
routed through the mounting
surface, mark the location of
the hole for the cable. NOTE:
The drop cable can be routed
through the cable channel on
the side of the base.
3. Drill holes for the mounting
fasteners, and for the drop
cable if needed.
4. Remove the three lower
Mounting
dome screws, then separate
the lower dome from the
mounting base. An L-wrench
is provided.
5. Route the drop cable as
planned, then secure the
mounting base to the surface
with the fasteners.
6. DO NOT reattach the lower dome to the mounting base at this time.
Step 2. Connect the camera to the LAN and power it on
1. Route a Ethernet LAN cable to the camera and plug it into the Ethernet connector. Seal the
connection from moisture and other contamination. A weatherproof fitting is provided.
If the camera is powered through the LAN cable (PoE), apply power to the cable to power on the
camera, then continue to "Step 3. Install the Alibi Discovery Tool" on page 2.
Ethernet connector -
PoE capable
12 Vdc Power
connector
Documentation and
Installation Tools CD
Mounting
screws and
wall inserts
Weatherproof fitting
for Ethernet cable
Mounting
screw holes
Wall inserts
base
Mounting
screws
ALI-NS1014VR_CQ
L-wrench
Drop
cable
