Summary of Contents for thomann Harley Benton HBW-35

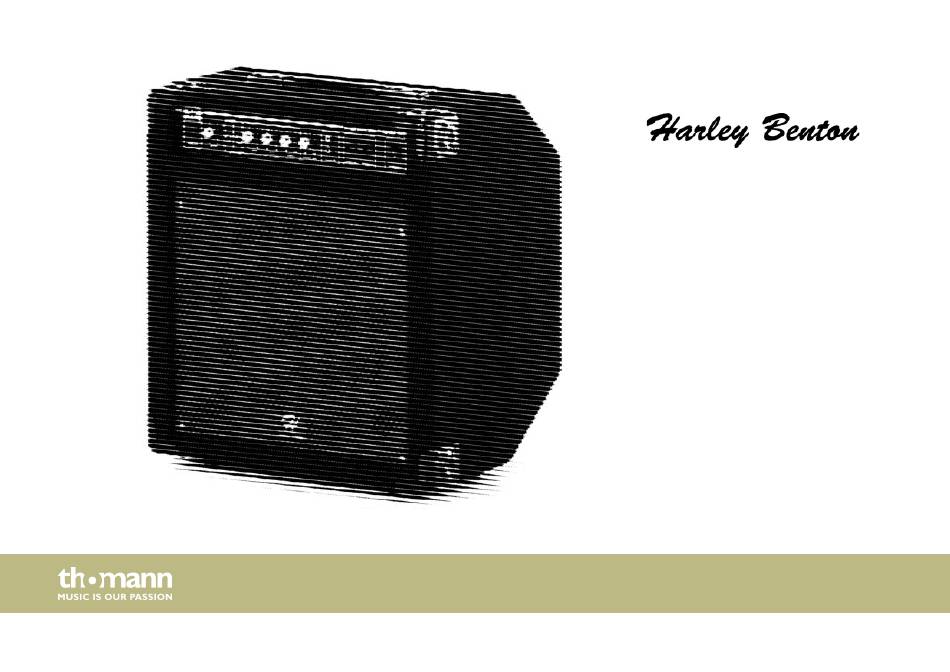

- Page 1 HBW-35 bass combo user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 24.07.2015, ID: 224346 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 13 Installation and starting up........................ 14 Components and functions........................ 15 Technical specifications........................20 Plug and connection assignment.................... -
Page 4: General Information
General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for amplification and playback of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating condi‐ tions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
- Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 11 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
- Page 12 Safety instructions NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
-
Page 13: Features
Features Features Special features of the device: 10" woofer Controls for input gain and master volume Boost and bright switch 3-band equalizer Headphones output, line-out Housing with felt cover, plastic corners, rubber foots and metal front grill Wedge cabinet for monitor use Automatic standby (can be disabled) HBW-35... -
Page 14: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 15: Components And Functions
Components and functions Components and functions Front panel HBW-35... - Page 16 Components and functions 1 [INPUT] ¼-inch (6.35-mm) jack socket for the input signal coming from your bass guitar. 2 [GAIN] Input gain control. 3 [BRIGHT] Switch for boosting the high frequencies. 4 [BOOST] Switch for boosting the low frequencies. 5 [HIGH], [MID], [LOW] Control to attenuate or increase the frequencies by ±12 dB 6 MASTER Overall volume control.
- Page 17 Components and functions 7 [AUX IN] Auxiliary signal input, electronically located behind the equalizer, directly feeding the power stage for connecting a CD player or the like. Control the volume on the connected audio device. 8 [LINE OUT] 1/4" phone socket to connect audio devices like recording devices or mixing consoles. 9 [PHONE] ¼-inch (6.35-mm) headphone jack socket.
- Page 18 Components and functions 10 [STANDBY] Push-button to enable or disable the power saving mode. If the power is on and there is no signal input at the [INPUT] jack for 15 minutes, the device will automatically enter standby mode. As soon as the [INPUT] jack receives a instrument signal, the device switches back to normal mode. LED [ACTIVE] Power indicator.
- Page 19 Components and functions Rear panel 12 Panel plug for mains cable with fuse holder. HBW-35...
-
Page 20: Technical Specifications
Technical specifications Technical specifications Output power 35 W (RMS) System bass combo Configuration 1 × 10" woofer Connections INPUT (¼-inch input jack) AUX IN (Cinch) LINE OUT (¼-inch input jack) PHONE (¼-inch input jack) Input impedance 1 MΩ Power consumption 86 W Operating supply voltage 230 V... - Page 21 Technical specifications Dimensions (W ×D ×H) 416 mm ×450 mm ×320 mm (15.35in. × 5.31in. × 15.55in.) Weight 14.3 kg HBW-35...
-
Page 22: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 23 Plug and connection assignment RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding HBW-35...
-
Page 24: Cleaning
Cleaning Cleaning Device components Clean the device componetns that are accessible from the outside regularly. The cleaning fre‐ quency depends on the operating environment: damp, smoky or particularly dirty environ‐ ments can cause greater accumulation of dirt on the device components. Clean with a dry soft cloth. -
Page 25: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 26 Notes bass combo...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
