Summary of Contents for Vintage Sound Jazz 20

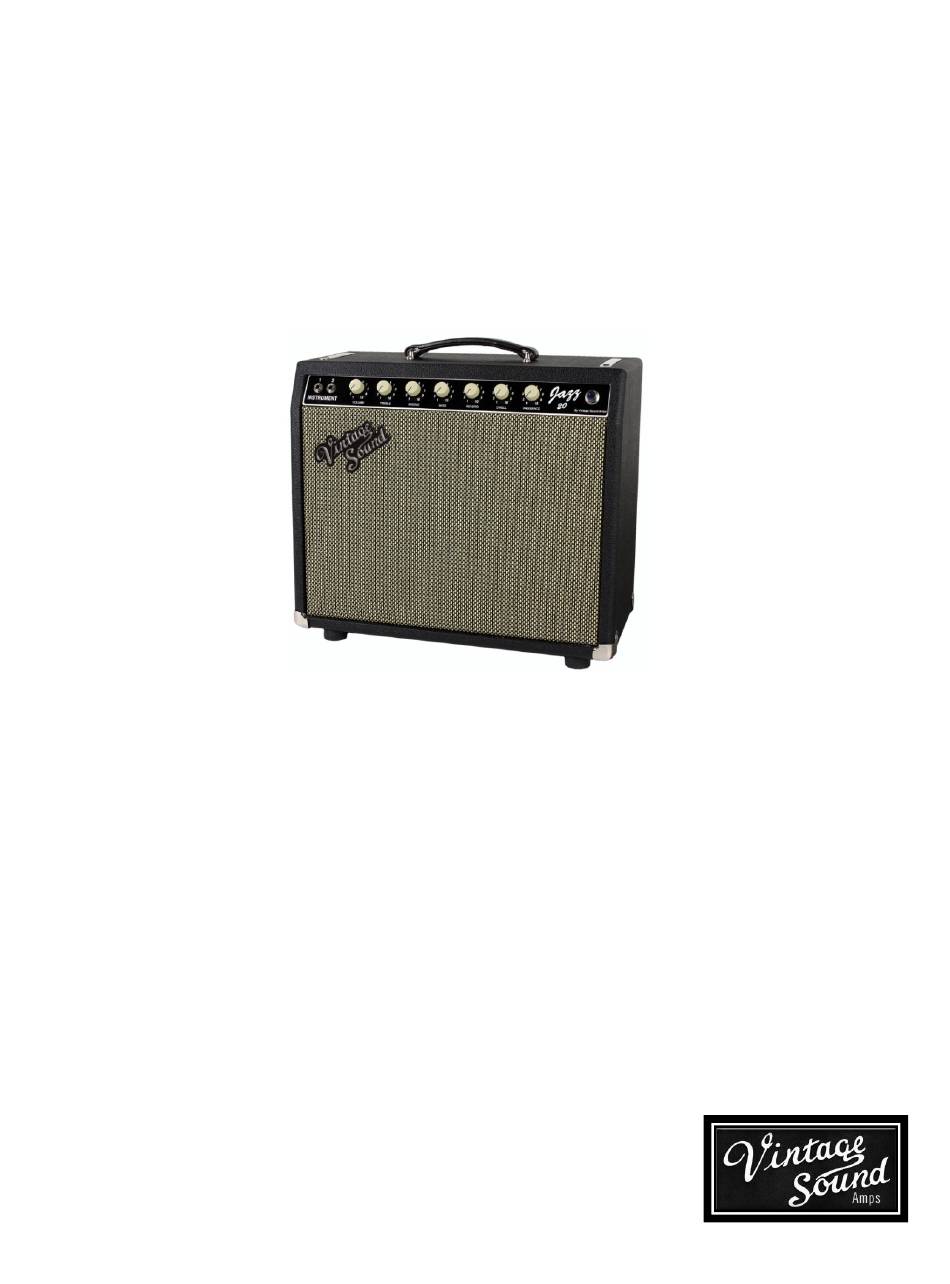

- Page 1 Jazz 20 Manual Model: J20 www.vintagesoundamps.com...
- Page 2 Specifications Power Output 20 Watts Output Tubes 2 - 6V6 Preamp Tubes 1 - 12AT7; 3 - 12AX7 Rectifier 1 - 5AR4/GZ34 Controls Front Panel: Volume.Treble.Middle.Bass.Reverb.Dwell.Presence 1x12 Cabinet Configurations Head & Matching 1x12 Speaker Cabinet Colors Assorted colors available Dimensions & Weight Combination Amp: Height: 17”...
- Page 3 15) Avoid placing any liquids on or near the amplifier that may splash or drip such as those contained in bottles, cans, glasses, etc. 16) Vintage Sound amplifiers are capable of producing very high sound pressure levels which can cause temporary or permanent hearing damage or loss.
- Page 4 15. FUSE SLO-BLOW - The fuse protects the amp from electrical faults. Replace only with a 1 amp slo blow fuse. If the amp repeatedly blows the fuse, contact your dealer or Vintage Sound Amps. 16. ON - This switch turns the AC power ON and OFF. When the switch is OFF, the amplifier is...
- Page 5 17. STANDBY - When the switch is in the STANDBY position, the amplifier is off; however, the tube filaments are left on as to eliminate warm-up time, provided that the POWER SWITCH (item B) is ON. Use of this feature during short breaks versus using the POWER SWITCH will increase tube life. 18.
- Page 7 MODEL: SERIAL NUMBER: INPUT VOLTAGE: MADE IN USA...
- Page 8 . v i n t a g e s o u n d a m p s . c o m EC/EU DECLARATION OF CONFORMITY We declare that the Jazz 20 is designed in conformity with the European Directives: 2014/30/EU...
