Summary of Contents for Millenium BS-2010

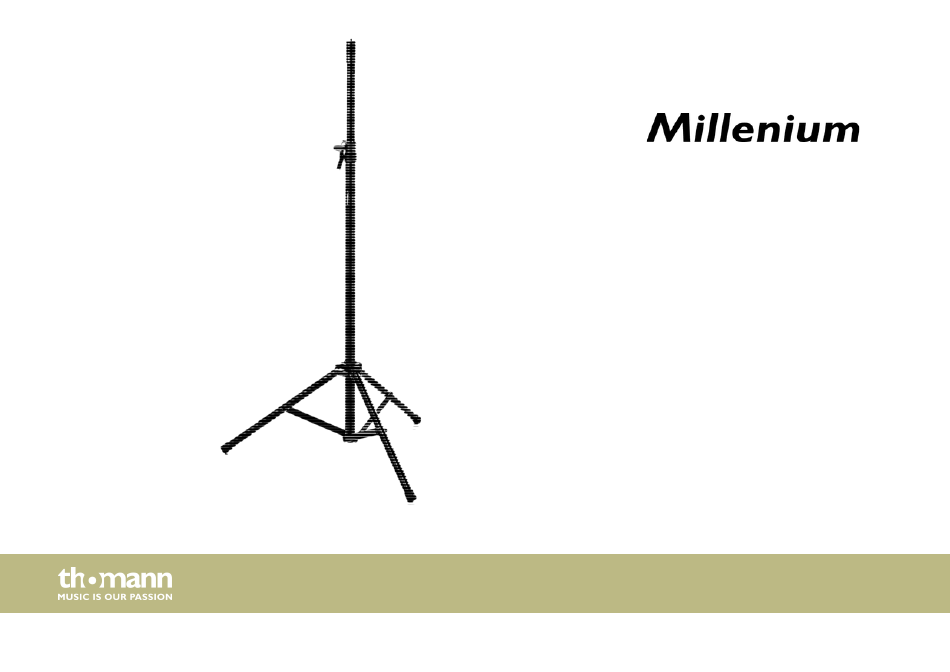

- Page 1 BS-2010 speaker stand user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 27.07.2015, ID: 320824...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety notes..............................8 Features............................... 11 Operating..............................12 Technical specifications........................17 Protecting the environment......................18 BS-2010... -
Page 4: General Information
General information General information This manual contains important instructions for the safe operation of the product. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the product. If you sell the unit, please make sure that the buyer also receives this manual. -
Page 5: Further Information
Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the Service customer service will gladly assist you. BS-2010... -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð... - Page 7 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. BS-2010...
-
Page 8: Safety Notes
Safety notes Safety notes Intended use This speaker stand is used for stable fixing and height-adjustable installation of loudspeaker cabinets. Use the product only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 9 Never let children play unattended with the product. CAUTION! Danger of tipping when transported under load If the stand is moved without having removed the installed device, the stand may tip over and cause injuries and property damage. Remove the installed device before transporting the stand. BS-2010...
- Page 10 Safety notes CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property...
-
Page 11: Features
Extendible up to a height of about 2 m Centric load capacity up to 30 kg 25 mm pipe diameter at the pole mount Including adapter from 25 mm diameter to M6 thread (12 mm long) Foot diameter 1000 mm Transport length when folded: 1.19 m BS-2010... -
Page 12: Operating
Operating Operating Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 13 Install the stand only on even and solid surfaces. CAUTION! Danger of tipping when transported under load If the stand is moved without having removed the installed device, the stand may tip over and cause injuries and property damage. Remove the installed device before transporting the stand. BS-2010...
- Page 14 Operating NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
- Page 15 Flange the speaker box on top of the extension tube. For this purpose, use the adapter supplied with the tripod, if necessary. The weight of the speaker box to be set up must not exceed the maximum centric load of 30 kg. BS-2010...
- Page 16 Operating Dismounting Remove the speaker box. Pull out the safety cotter and hold the extension tube while you loosen the locking screw on the extension tube. Slide the extension tube all the way down and slide the safety cotter through the corre‐ sponding grid hole.
-
Page 17: Technical Specifications
Technical specifications Technical specifications Permitted centric loadability 30 kg Minimum support height 119 cm Maximum support height 200 cm Tripod flange 25 mm diameter Weight 2.6 kg Transport length when folded 119 cm Colour Black BS-2010... -
Page 18: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
