Ethernet WAN Connection

1. Go to the Advanced / Interface grouping page.
2. Select the choice corresponding to the LAN port that will be used as the
WAN port of the Ethernet WAN port radio button, and click the Save
button.
3. Go to the Net / Connections page and click the Add button.
4. In the General settings section, specify a name for your connection
(any name for easier identification) in the Name field and select a type
for your connection from the Connection Type drop-down list (for the
Static IP and DHCP connection types select the IPoE value).

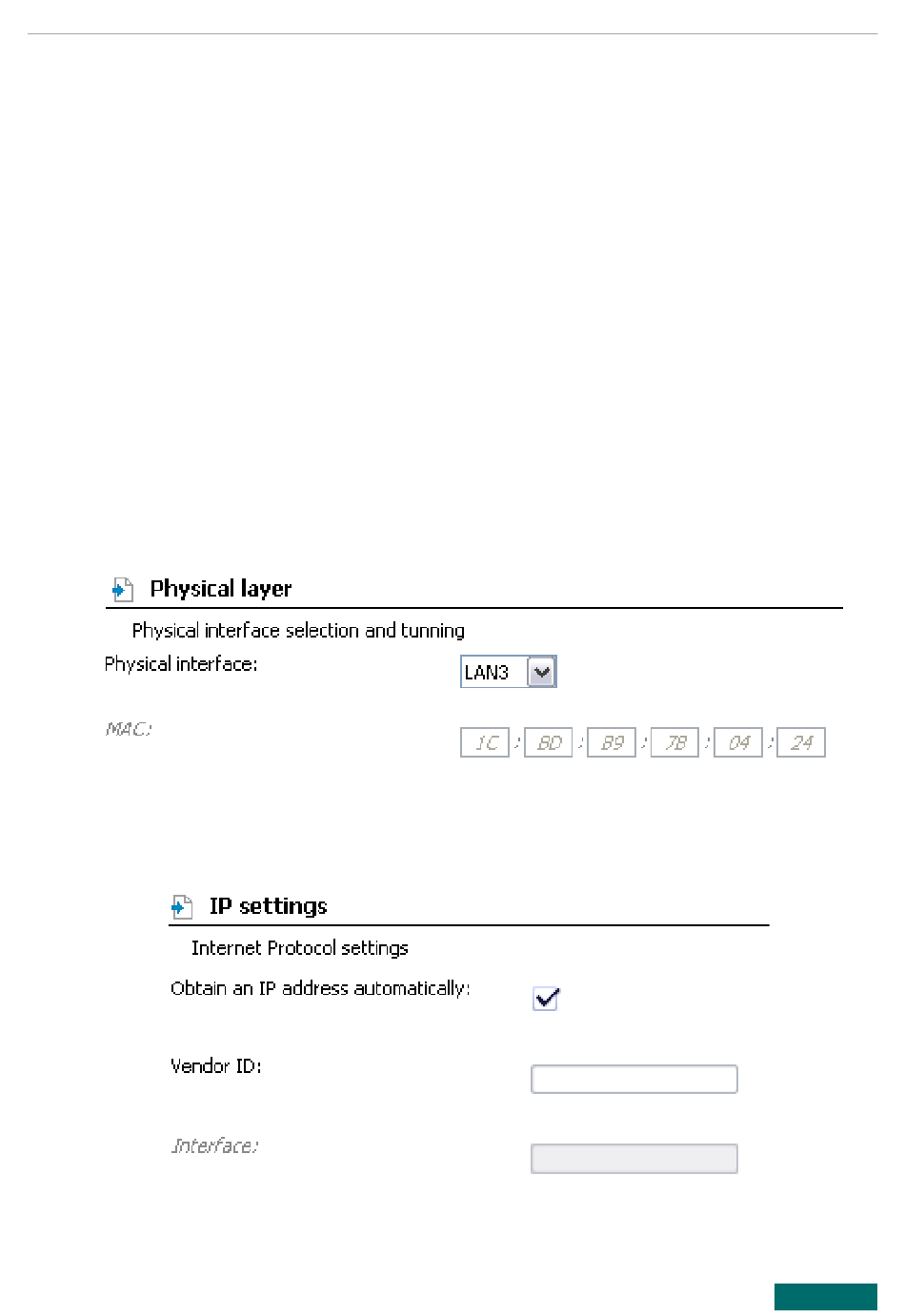

5. In the Physical layer section, select the value corresponding to the
LAN port that will be used as the WAN port from the Physical
interface drop-down list.
6. In the IP settings section, fill in the IP Address, Netmask, and
Gateway IP Address fields for the Static IP type. Select the Obtain
an IP address automatically checkbox for the DHCP type.
