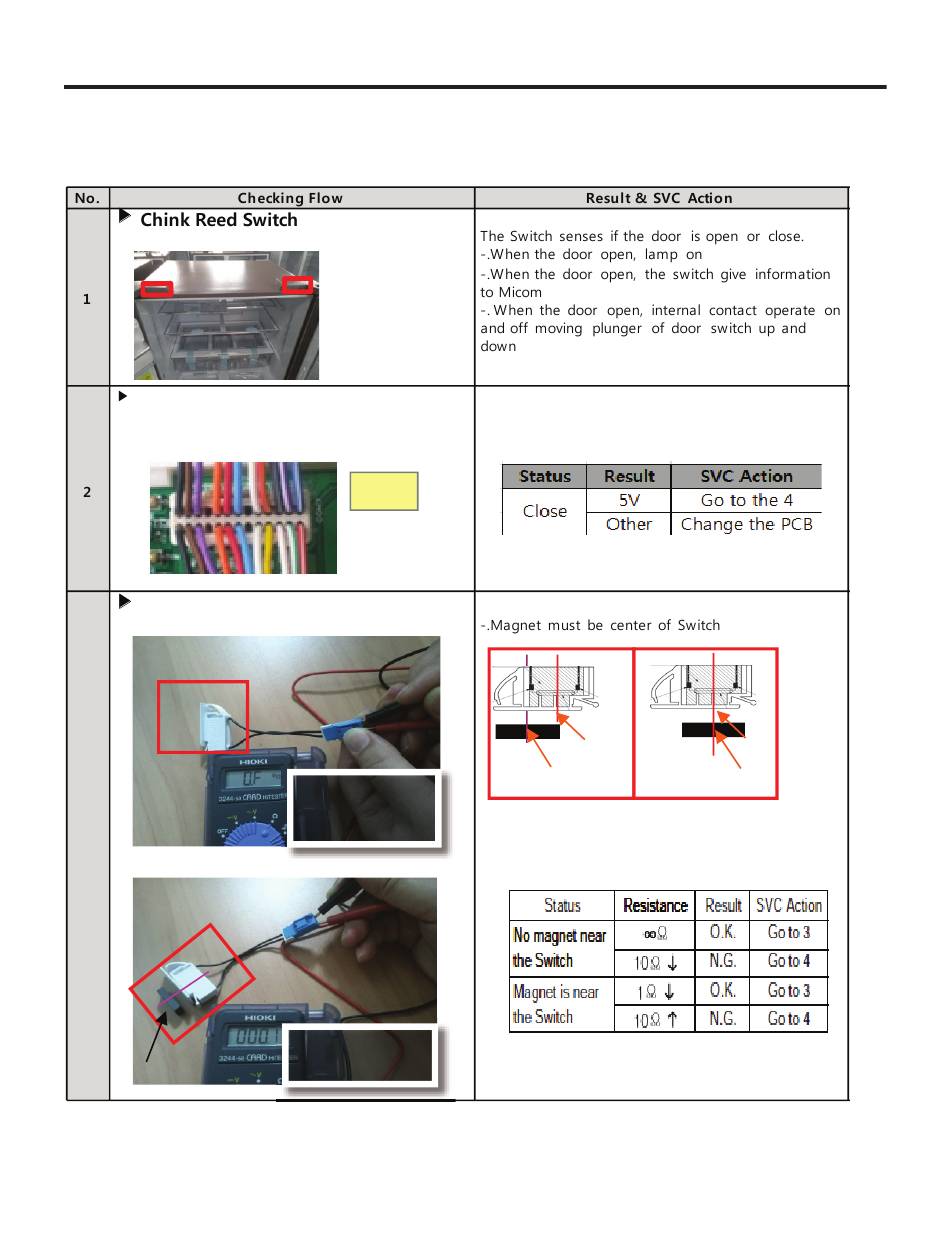

9-5 Door Switch

Check Voltage between pin 13 and 14
CON5

Check the Reed S/W resistance

-.No Magnet
Magnet Center
Magnet Center
Switch Center
Switch Center
Good position
Bad position
(X)
(O)
3
-.Magnet Near the Switch
h
-.Resistance & Service Action
- 82 -
