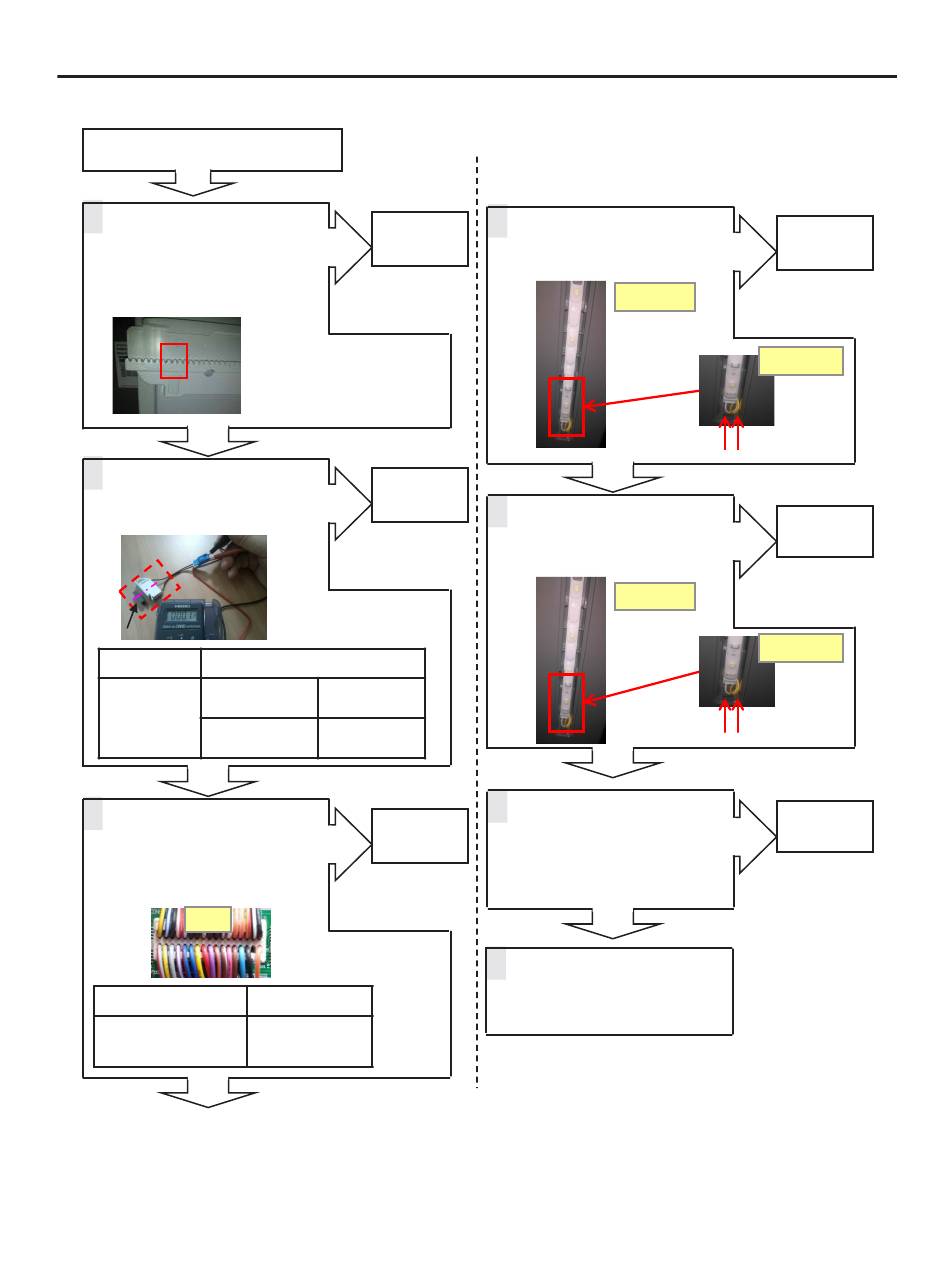

Freezer room lamp doesn't work
1
The Switch senses if the door is
open or close.
When the door open, lamp On
When the door Close, lamp Off
No
2
Check the door S/W resistance.
Is it correct compared with table?
Resistance [Ω]
No magent near
the switch
Door S/W
Magnet is near
the switch
Yes
3
Check the PCB Voltage.
Is CON7 13 h pin & 15 th pin
voltage 11.4 ~ 12.6V?
CON6
CON6
11.4 ~ 12.6V
13 pin & 15 pin
h th
Yes
Explain to
Yes
customer
Change the
No
Door S/W
Infinity
0
Change the
No
PCB
Voltage [V]
- 65 -
4
Check the LED Lamp voltage
Is voltage 11.4 ~ 12.6V?
LED Lamp
Yes
5
Check the LED Lamp voltage.
Is it 0~2V? (While door closed)
LED Lamp
Yes
6
Check the LED Lamp voltage.
Is it 11.4 ~ 12.6V? (While door
open)
Yes
7
Explain to customer
Change the
No
LED Lamp
LED Lamp
Change the
No
Door S/W
LED Lamp
Change the
No
LED Lamp
