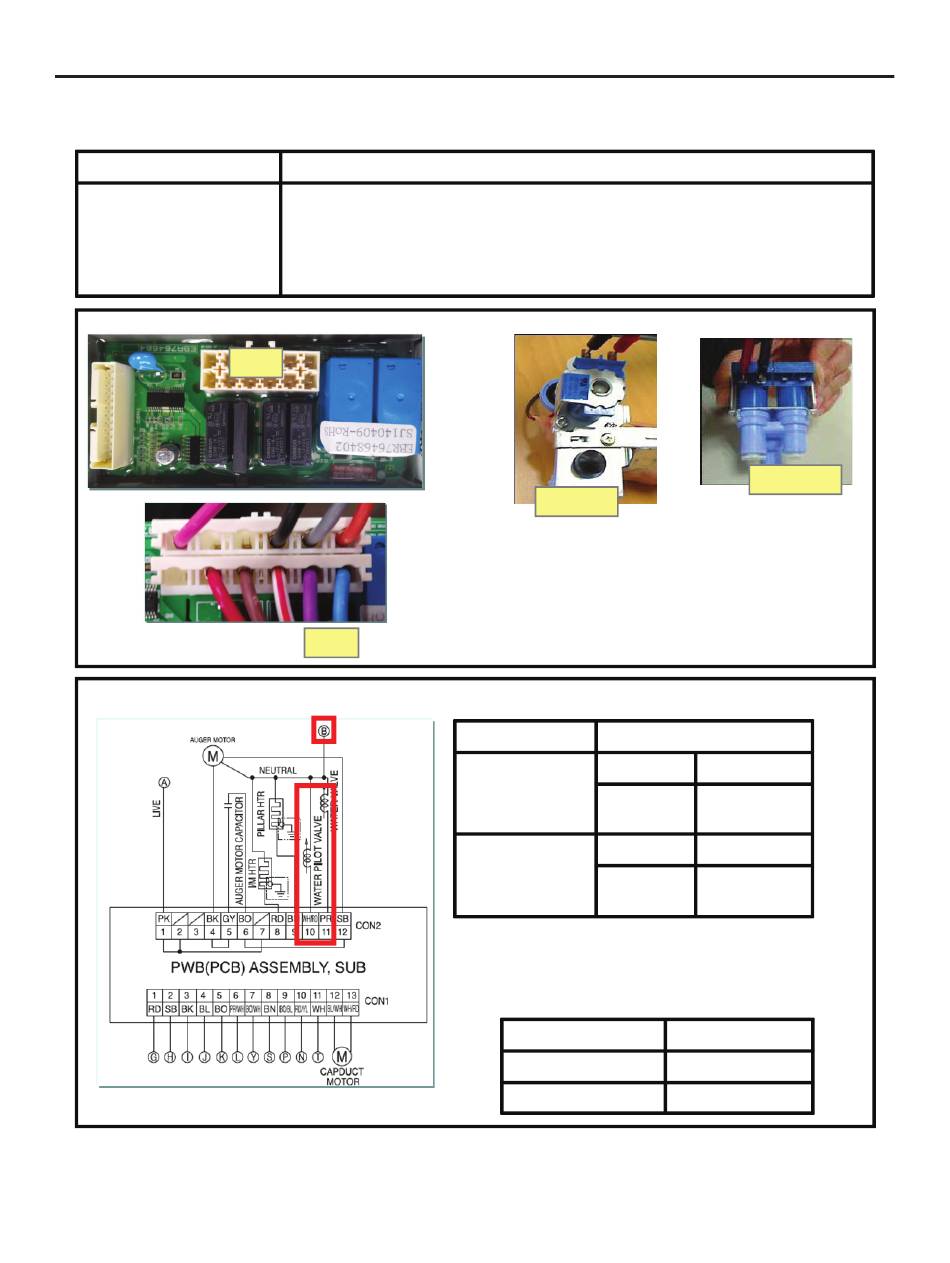

7-15. Water mode doesn't work
Symptom
1. Water mode
doesn't work
CON2
1. Check the loose connection
2. Check the resistance valve
CON2
CON2
11
B(NEUTRAL)
CON2
10
B(NEUTRAL)
- 62 -
Check Point
Pilot Valve
LEVER S/W
Pushing
th
pin ~
Not
Pushing
Pushing
th
pin ~
Not
Pushing
Pilot Valve
Water valve
Water Valve
Voltage [V]
112~115V
0~2V
9~12V
0~2V
Resistance [Ω]
360~420
360~420
