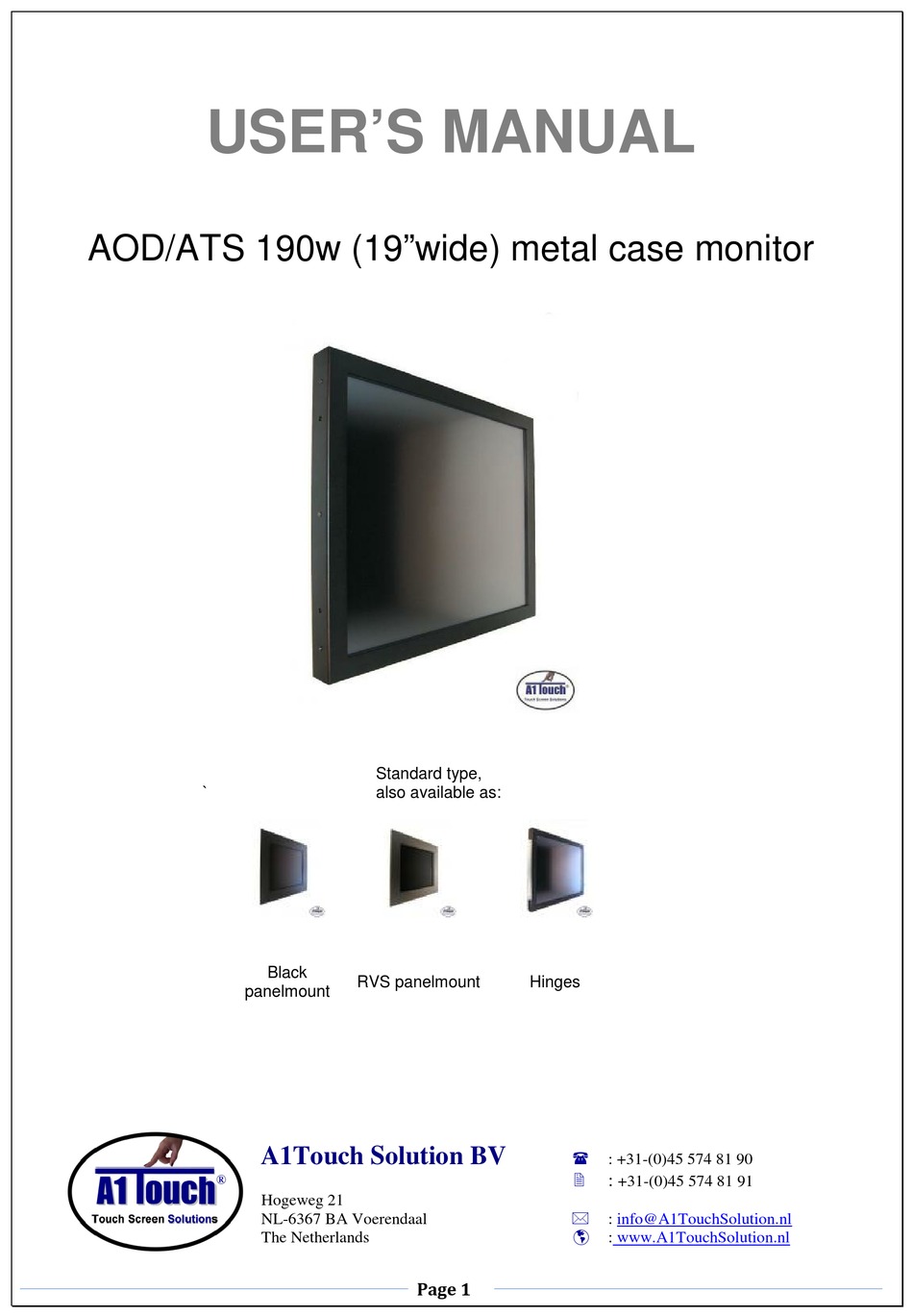

USER'S MANUAL
AOD/ATS 190w (19"wide) metal case monitor
`
panelmount
Standard type,
also available as:
Black
RVS panelmount
A1Touch Solution BV
Hogeweg 21
NL-6367 BA Voerendaal
The Netherlands
Page 1
Hinges
: +31-(0)45 574 81 90
:
+31-(0)45 574 81 91
:
info@A1TouchSolution.nl
:
www.A1TouchSolution.nl
Advertisement
Table of Contents
Summary of Contents for A1 Touch AOD/ATS 190w
- Page 1 USER’S MANUAL AOD/ATS 190w (19”wide) metal case monitor Standard type, also available as: Black RVS panelmount Hinges panelmount A1Touch Solution BV : +31-(0)45 574 81 90 +31-(0)45 574 81 91 Hogeweg 21 NL-6367 BA Voerendaal info@A1TouchSolution.nl ...
-
Page 2: Table Of Contents
Contents: 1. Monitor User’s Manual 1.0. Connection to the monitor 1.1. Installation 1.2. Features 1.3. Plug and play function 1.4. Safety Precaution 1.5. OSD (On-Screen-Menu) 1.6. OSD Menu 1.7. Specifications 1.8. Contents of the retail package 1.9. Troubleshooting 1.10. Drawing 2. -
Page 3: Monitor User's Manual
CD or software program. Plug and Play Function AOD/ATS 190w can be installed and connected automatically to any computer systems without driver CD or software programs. Monitor will recognize the optimized value of video mode by DDC(Display Data Channel) method that makes the graphic card of computer to communicate with the monitor. -
Page 4: Osd (On-Screen-Menu)
• Adapter Only use an adapter designed of the LCD monitor. • Plug Do not remove any of the prongs of the monitor's three-pronged power plug. Disconnect the power plug from the AC outlet if you will not use it for an indefinite period of time. •... -
Page 5: Osd Menu
OSD Menu OSD Menu Description Remarks Brightness Adjust the brightness of the screen Contrast Adjust the contrast of the screen Adjust the horizontal position of the H.Position screen’s image Adjust the vertical position of the screen’s Picture V.Position image Only Phase Adjust the focus of the screen’s image usable on... -
Page 6: Specifications
Specifications AOD190W VGA+DVI, 19 inch wide metal case monitor with 5 wire non glare resistive touch Black powdered cover. Color panel: Black powder Coated (other colors on request) Model: 19 inch, 16:10 WXGA TFT LCD Monitor Type: 19 inch-wide Color TFT-LCD Module (AUO M190PW01) Resolution (max): 1440x3(RGB) x 900 Color:... -
Page 7: Troubleshooting
Troubleshooting TO REDUCE THE RISK OF ELECTRIC SHOK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONELLE. • The monitor does not respond after you turn on the system. • Make sure that the monitor is turned on. •... -
Page 8: Drawing
Drawing Page 8... -
Page 9: Touch Options
2. Touch Options Touch-options related to monitor size Resistive PROJ. Optical Touch 4Wire 5Wire Dual protected Touch 185” Aviable Not aviable On demand Option: 5-Wire-touchscreen 5 wire-touchscreen non glare is standard, glare is option Chemical resistance Acetone, ammonia-based glass cleaners, hexane, isopropyl alcohol, methylene chloride, mineral spirits, turpentine, methyl ethyl ketone Vibration... -
Page 10: Cap Touchscreen
discharges) Activation force less then 85gr Position accuracy Standard deviation of error is less then ±1% Life performance >50.000.000 (finger) Input modus Finger or glove hand (rubber, cloth, leather) Surface durability Optical glass surface, Mohs' hardness rating : 7 Light transmission 90% (per ASTM D1003) SAW-controller Supply voltage... -
Page 11: Projected Capacitive
Option: Projected-capacitive-touchscreen Projected capacitive sensor Heat tempered glas, glare is standard, non glare is option Glass Tempered glass with ceramic black borders, C-grinded, r=2mm Chemical resistance Acetone, ammonia-based glass cleaners, hexane, isopropyl alcohol, methylene chloride, mineral spirits, turpentine, methyl ethyl ketone, gasoline, kerosene, vinegar. Contact bounce Around 5 ms for finger contact Break resistance... -
Page 12: Touchkit
3. Touch Options Touchkit Features for Touchkit software Calibration Fast full oriental 4 points position Compensation Accuracy 25 points linearity compensation. Draw Test Position and linearity verification Extend Feature 1. Support monitor / display rotation 2. Support multiple monitor / display 3. -
Page 13: Mounting
4. Mounting overzicht 4.1. Plain 4.2. Brackets 4.3. Panel mounting 4.4. Wall mounting Plain Metal case monitor Brackets Metal case monitor + 2x brackets Panel-mounting Metal case monitor + bezel + 2x brackets Page 13... -
Page 14: Wall Mounting
Wall mounting Metal case monitor + New Star TV Wallmount (FPMA-W115) Page 14...
