Summary of Contents for Net.Do FOX1024s

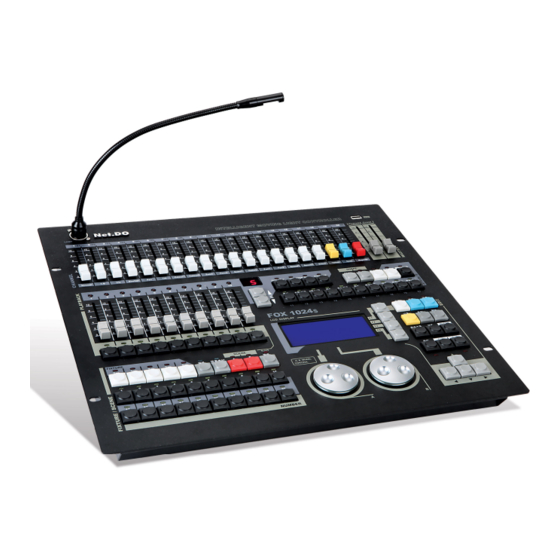

- Page 1 FOX1024s MOVING LIGHT CONTROLLER User’s Manual Net.DO FOSHAN NETDO LIGHTING CONTROL EQUIPMENT CO.,LTD...
-
Page 2: Table Of Contents
6.1 Manually-Run Fixture ..................18 6.2 Clear Manual-Run Fixture ................19 6.3 FIND function....................19 6.4 LOCATE function................... 19 6.5 GROUP function .................... 19 6.6 Parity selecting and one by one control of fixtures ........20 FOX1024s Moving Light Controller. PAGE: 1... - Page 3 9.10 Fader Synchronization of Playback.............. 30 10. SCENE........................31 11. Synchronous Parallel Operation................32 12. Light Show (Auto Playback)................... 32 12.1 External Time Code (MIDI)................32 12.2 Internal Time Code (One Key Light Show)........... 33 FOX1024s Moving Light Controller. PAGE: 2...
- Page 4 Net.DO Lighting Control Equipment Co.,Ltd http://www.netdo.com.cn 13. Priority Levels of Different Operations ..............33 14. Software Upgrade....................34 15. Data Protection......................34 FOX1024s Moving Light Controller. PAGE: 3...
-
Page 5: Summary
Parallel by MIDI, “one key light show” Library Format R20 Format USB Port Music Control Signal Input Line level input / MIC input Power Supply Switch Power Supply, AC 100~240V, 50/60Hz Power Size 482mm × 440mm × 108 mm FOX1024s Moving Light Controller. PAGE: 4... -
Page 6: Installation
Net.DO Lighting Control Equipment Co.,Ltd http://www.netdo.com.cn Installation 2.1 Packing List FOX1024s moving light controller includes the following items in the carton: ONE FOX1024s moving light controller TIPS: Model and software version could be checked on boot screen. ONE power supply cable, ONE user’s manual. -
Page 7: Dmx512 Signal Interface & Connection Of Fixture
There is one gooseneck interface (3 pins XLR) at top left corner of the controller’s panel, gooseneck lamps of voltage 12V/5W can be connected. 2.3.7 MIDI (out/in) MIDI ports are provided to connect consoles in parallel or receive/send MIDI code to play/record “Light Show”. FOX1024s Moving Light Controller. PAGE: 6... -
Page 8: Operation Guide
Net.DO Lighting Control Equipment Co.,Ltd http://www.netdo.com.cn 3. Operation Guide 3.1 Panel Plot FOX1024s Moving Light Controller. PAGE: 7... -
Page 9: Attribute Faders And Master Faders
Playback Select Key (Playback key for short): There is one under each Playback Fader. Playback Page Key (Up / down): Playback’s page up & down. LED screen shows the corresponding pages. (TIPS: holding page key can quick flip) FOX1024s Moving Light Controller. PAGE: 8... -
Page 10: Function Key
Press and hold SHOW key for 2sec to enter “Light Show” status (Slave), 1~20 Numeric Key will be used for internal “Light Show” selection. Press and hold SHOW key for 2sec again to quit back to common status (Master). FOX1024s Moving Light Controller. PAGE: 9... -
Page 11: Shape Control Area
2. Up/Down Key is used to modify the numerical value of the selected items. Wheel A/B: There are 2 wheels (A/B), the control contents depend on the items displayed in the menu. If there is no corresponding display, the Wheel can modify the selected Menu Item. FOX1024s Moving Light Controller. PAGE: 10... - Page 12 －Used to find the selected fixtures (will not set value nor keep value after quit) ALIGN －Used to change attributes of selected fixtures to be same as Reference Fixture. Prev Next －Used to select single / odd / even fixtures among the selected fixtures FOX1024s Moving Light Controller. PAGE: 11...
-
Page 13: Quick Start
6) Program Playback: Push Playback Key 1 in Page 1, the recorded “one-step-program” will be output to the fixtures immediately. *Above is just a simple demo for beginners to start learning the console, to understand the operation of advanced functions, reading this manual carefully would be necessary. FOX1024s Moving Light Controller. PAGE: 12... -
Page 14: Setup Menu
Library: There is a DVD-ROM in the carton, it contains the libraries of over 3 thousand fixtures, which can be imported to the console from U-disk. (Libraries can be custom by <NetDO Library Software> in PC or Android phone) FOX1024s Moving Light Controller. PAGE: 13... -
Page 15: Fixture Setting
5.3.1 Fixture Patched Path: SETUP Fixture FixPatch In FixPatch menu, fixtures can be patched, set models and assigned DMX address (As shown on the Fixture No. Total Channels right) Fixture Model DMX Address FOX1024s Moving Light Controller. PAGE: 14... - Page 16 There are 2 libraries (CH20/CH40) in the console, which correspond to the fixtures of 20 or 40 channels. The sequence of the channels corresponds to the Attribute Faders’, for convenience to test fixture channels without custom library. FOX1024s Moving Light Controller. PAGE: 15...
-
Page 17: Invert Attribute Value
In DataFile menu, data files in the U-disk can be deleted. Insert U-disk, press DEL File (F4) soft key to enter DEL File menu, then select the file and press ENTER soft key to delete. FOX1024s Moving Light Controller. PAGE: 16... -
Page 18: Other Setting
MIDI code to run/record “Light Show”. *TIPS: Under “Slave” status, Playback Faders and Flash Keys of SCENE will be locked (except while recording “One key light show”). FOX1024s Moving Light Controller. PAGE: 17... -
Page 19: Manual-Run Fixture
Shutter 12-A 12-B Tilt 13-A 13-B Colour1 Colour2 14-A 14-B Zoom Focus 15-A 15-B Gobo1 Gobo2 16-A 16-B Fun1 Fun2 17-A 17-B Speed1 Speed2 18-A 18-B Effect Yellow 19-A 19-B Cyan Magenta 20-A 20-B FOX1024s Moving Light Controller. PAGE: 18... -
Page 20: Clear Manual-Run Fixture
Record Group: Select fixtures press and hold RECORD key Press Group Numeric Key Delete Group: Press and hold DELETE Press Group Numeric Key. Copy Group: Press and hold COPY key Press Group Numeric Key (source) Press another Group Numeric Key (target). FOX1024s Moving Light Controller. PAGE: 19... -
Page 21: Parity Selecting And One By One Control Of Fixtures
*TIPS: In the modification of Pan/Tilt, this function is more suitable for the fixtures mounted in line. 6.9 Reference Fixture Multiple fixtures will align to a Reference Fixture when their attribute is manually modified. FOX1024s Moving Light Controller. PAGE: 20... -
Page 22: Set "Reference Fixture
In Fixture Menu, press Reset soft key. Notice: The corresponding library must contain the MACRO information of Lamp On/Lamp Off/ Reset. Library can be customized by <NetDO Library Software> in PC or Android phone. FOX1024s Moving Light Controller. PAGE: 21... -
Page 23: Preset
Press and hold DELETE Press Preset Numeric Key to finish deleting 7.3.3 Copy PRESET For example: copy PRESET 1 to PRESET 5. Press and hold COPY Press Preset Numeric Key 1 (source) Press Preset Numeric Key 5 (target) to finish copying FOX1024s Moving Light Controller. PAGE: 22... -
Page 24: Shape
5） Open shape by Key. (close by Key) 6） Select Shape: Press Type soft key, select shape by Wheel A/B. 7） Set Speed / Direction: Press Speed soft key; Rotate Wheel A to set running speed. FOX1024s Moving Light Controller. PAGE: 23... -
Page 25: Stop Shape
2） Call a shape; set the Type=Circle, Speed=40%, Size=20%, Spread=25%. ： Move straight while circling Example 2 Program a “Multi-Step Program” (Chase) of 2 steps to make the fixtures move straight, then call the same circle in both steps. FOX1024s Moving Light Controller. PAGE: 24... -
Page 26: Program
Channels such as Pan/Tilt, Gobo should be LTP channel normally. 9.2 Empty LTP channel When the value of certain LTP channel in a program is empty (no value), this channel will be ignored in playback. FOX1024s Moving Light Controller. PAGE: 25... -
Page 27: Clear Ltp Remaining Value In Playback
(Normally used to record “Multi-Step Program”) 9.5 Edit Program Program can be created and edited in Program Menu, every step of “Multi-Step Program” can also be created, edited and set internal speed in the menu. Steps are as follow: FOX1024s Moving Light Controller. PAGE: 26... -
Page 28: Copy Step
Copy a program to another, the operation is as follow: Press and hold COPY key Press Playback Key(source) Press another Playback Key(target); select Playback Page Key first if the target is in another page. FOX1024s Moving Light Controller. PAGE: 27... -
Page 29: Playback Of Program
--- Every step of “Multi-Step Program” has its own internal speed, in EditStep menu, internal speed of each step can be customized individually. FOX1024s Moving Light Controller. PAGE: 28... -
Page 30: Connect "Multi-Step Program
HTP Time of Fade In: The time needed for HTP channel value to go from 0 to 100% after the Playback Fader is pushed up. HTP Time of Fade Out: The time needed for HTP channel value to go from 100% to 0 after the FOX1024s Moving Light Controller. PAGE: 29... -
Page 31: Edit Fader Time
9.10 Fader Synchronization of Playback Path: PROGRAM FadeSync Enter FadeSync menu, as shown on the right: Select program by Playback Key, the following items of Fader Synchronization can be open/close: Program No. LTP-Sync SHAPE-Sync FOX1024s Moving Light Controller. PAGE: 30... -
Page 32: Scene
(The target Scene Numeric Key can be in another page) Check Scene: Press and hold RECORD, the indicator above the Scene Numeric Key will be bright if there is data saved in it. FOX1024s Moving Light Controller. PAGE: 31... -
Page 33: Synchronous Parallel Operation
12.1 External Time Code (MIDI) Users can connect the console with PC through MIDI interface (by using USB to MIDI convertor), and record/play “Light Show” with music by MIDI software (For example: Cubase) in PC. Computer Console FOX1024s Moving Light Controller. PAGE: 32... -
Page 34: Internal Time Code (One Key Light Show)
Priority between SCENE and Playback: Between SCENE and Playback, HTP channels will be output according to the rule of HTP; LTP channels will output the value of SCENE. (It means SCENE can superpose on Playback, FOX1024s Moving Light Controller. PAGE: 33... - Page 35 To use this function, set the “Login-Password” status to be “on”. Login-Password = Press Numeric Key 1, 2, 9, 10 together NOTICE: Please keep this page, if lost the password, please contact the seller for help! FOX1024s Moving Light Controller. PAGE: 34...
