Summary of Contents for ORANGE #4 Jim Root Terror

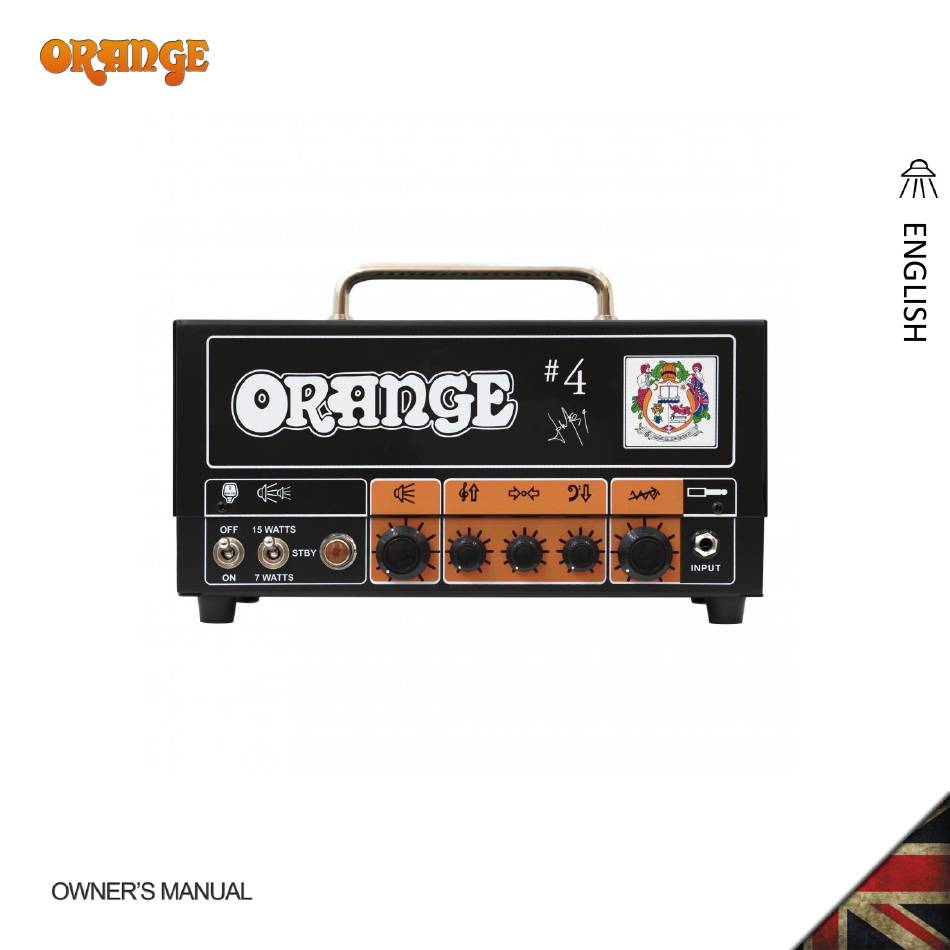

- Page 1 #4 Jim Root Terror...
- Page 2 To maintain this level of excellence, each Orange amplifier is put through many rigorous test procedures before leaving the factory.
-
Page 3: Table Of Contents
#4 Jim Root Terror CONTENTS CONTACT DETAILS ........................... 4 IMPORTANT SAFETY INFORMATION ....................... 5 EMI ................................7 BEFORE USING YOUR AMPLIFIER ......................8 FRONT PANEL FEATURES ........................9 REAR PANEL FEATURES ......................... 11 VALVES AND FUSES CAN FAIL AT ANY TIME! ..................12 FREE EXTENDED WARRANTY OFFER ..................... -
Page 4: Contact Details
#4 Jim Root Terror CONTACT DETAILS Orange Amplifiers OMEC House 108 Ripon Way Borehamwood Hertfordshire WD6 2JA ENGLAND Tel: +44 20 8905 2828 Fax: +44 20 8905 2868 info@omec.com Orange USA 1741 Wilwat Drive Suite A1 Norcross GA 30093 Tel: 1-404-303-8196 Fax: 1-404-303-7176 info@orangeusa.com... -
Page 5: Important Safety Information
#4 Jim Root Terror IMPORTANT SAFETY INFORMATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 6 Unauthorized substitutions may result in fire, electric shock, or other hazards. The voltage selector switch and mains fuse are factory set for the region in which your amplifier is intended to be sold. Do not tamper with this switch without express permission from Orange Music Electronic Company Ltd.
-
Page 7: Emi
AC Mains Input. Replace only with the same type and value. If the mains fuse repeatedly blows, contact your Orange dealer. To reduce the possibility of outside electrical interference during performance, operate your amplifier... -
Page 8: Before Using Your Amplifier
#4 Jim Root Terror BEFORE USING YOUR AMPLIFIER Speakers Always ensure the correct speaker load (Ω) is connected to the SPEAKER OUTPUT terminal(s) at all times during operation. The speaker outputs are found on the rear of the amplifier. The minimum total load is 8Ω. -

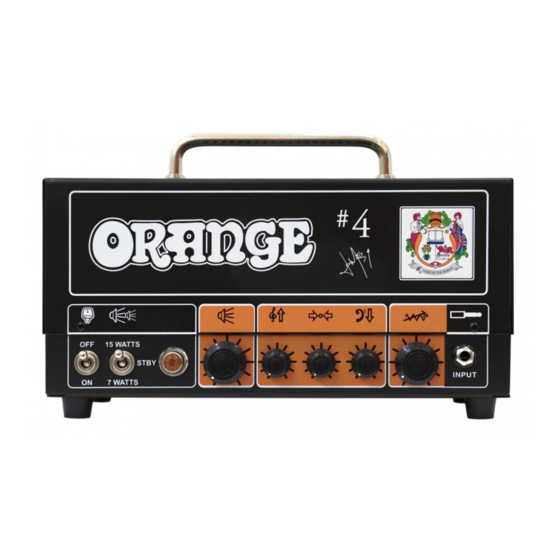

Page 9: Front Panel Features
#4 Jim Root Terror FRONT PANEL FEATURES POWER: Switches on the mains power to the amplifier. Refer to: ‘Important Safety Instructions’ & ‘Before Using Your Amplifier’. The jewel lamp will illuminate when the power is switched on. OUTPUT (15 WATTS/STBY/7 WATTS): Make sure that the 15 WATTS/STBY/7 WATTS output switch is in the STBY (middle) position before switching the power... - Page 10 #4 Jim Root Terror GAIN CONTROL. The gain control adjusts the gain. High levels of gain will heavily overdrive the pre-amp. With the gain set to zero, no sound will be heard. BASS CONTROL The Bass control adjusts the level of bass after the pre-amp stages and before the FX Loop. MIDDLE CONTROL The Middle control adjusts the level of midrange after the pre-amp stages and before the FX Loop.
-
Page 11: Rear Panel Features
#4 Jim Root Terror REAR PANEL FEATURES SPEAKER OUTPUTS (8 Ω, 8 Ω, 16 Ω) Please refer to “Using Your Amplifier”. EFFECTS LOOP SEND AND RETURN JACK SOCKETS. The effects loop, send and return jack sockets are intended for use with outboard pedals or rack equipment such as delay, reverb and chorus etc. -
Page 12: Valves And Fuses Can Fail At Any Time
90 days from the date of purchase. The warranty status of any Orange product is subject to its being used for its intended purpose in suitable conditions. As the manufacturer we reserve the right to refuse to warranty any Orange product which has been misused in any way whatsoever.
