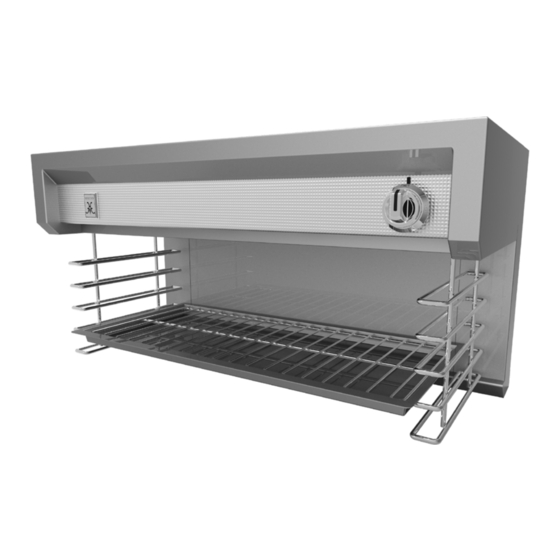

Summary of Contents for hestan HCM Series
- Page 1 Owner’s Guide Installation & Operation Cheesemelter HCM Series Hestan Commercial Corporation 3375 E. La Palma Ave Anaheim, CA 92806 (888) 905-7463 RETAIN THIS MANUAL FOR FUTURE REFERENCE P/N 002140 REV 1 ©2015 Hestan Commercial Corporation...
- Page 2 IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ INSTALLATION, OPERATING MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT. IN THE EVENT OF A POWER FAILURE, DO NOT ATTEMPT TO OPERATE THIS DEVICE. ©2015 Hestan Commercial Corporation...
-
Page 3: Table Of Contents
Ventilation Air / Flue Connections ..............7 Electrical Supply .....................8 Model / Serial / Rating Plate Location ..............8 Section 2: Operating Instructions ................Lighting and Shutdown Instructions ..............9 Section 3: Cleaning and Maintenance ..............Gas-Fired Appliances ..................10 ....................Service ©2015 Hestan Commercial Corporation... -
Page 4: Installation
Counter model only; 4” legs are mounted using four hex head bolts per leg and each leg is adjustable simply by turning the inner cylinder leg, clockwise to lower and counter clockwise to elevate. A carpenter’s level can be used on the top for leveling. ©2015 Hestan Commercial Corporation... -
Page 5: Statutory Regulations
In locations where the manual isolation valve is fitted or the automatic system can be reset this notice must be posted: “ALL DOWNSTREAM BURNER AND PILOT VALVES MUST BE TURNED OFF PRIOR TO ATTEMPTING TO RESTORE THE SUPPLY. AFTER EXTENDED SHUT OFF, PURGE BEFORE RESTORING GAS” NOTE: Before assembly and connection, check gas supply. ©2015 Hestan Commercial Corporation... -
Page 6: Gas Supply
Prior to lighting, check all joints in the gas supply line for leaks. Use soap and water solution. Do not use an open flame. After piping has been checked for leaks, all piping receiving gas should be fully purged to remove air. ©2015 Hestan Commercial Corporation... -
Page 7: Ventilation Air / Flue Connections
It is imperative that this plug be connected into a properly grounded three-prong receptacle. If the receptacle is not the proper grounding type, contact an electrician. Do not remove the grounding prong from this plug. ©2015 Hestan Commercial Corporation... -
Page 8: Model / Serial / Rating Plate Location
Model / Serial / Rating Plate Locations Cheesemelter Rating plate will be located above on the left side of top cover ©2015 Hestan Commercial Corporation... -
Page 9: Operating Instructions
3) Wait 3 minutes; turn all the burners “ON” and then “OFF”, one at a time, to make sure all of the lines have been ourged of air. For daily shutoff: Turn knob(s) to the “OFF” position, pilot(s) will remain on. A 5 minute complete shutoff period is required before the appliance is re-lighted Pilot ©2015 Hestan Commercial Corporation... -
Page 10: Cleaning And Maintenance
Inspect flue for grease and debris build up periodically, a dirty or plugged flue could cause unit to not operate properly and allow build up of soot creating an unsafe environment. • Remove any debris from flue opening, have a qualified technician and or cleaning service clean flue of any excess grease. ©2015 Hestan Commercial Corporation... -
Page 11: Service
Service All warranty and non-warranty repairs should be performed by qualified service personnel. To locate an authorized service agent in your area contact your dealer, local representative, or the manufacturer. Hestan Commercial Products (888) 905-7463 ©2015 Hestan Commercial Corporation...
