Summary of Contents for skyangel Mini Warbirds Rare Bear

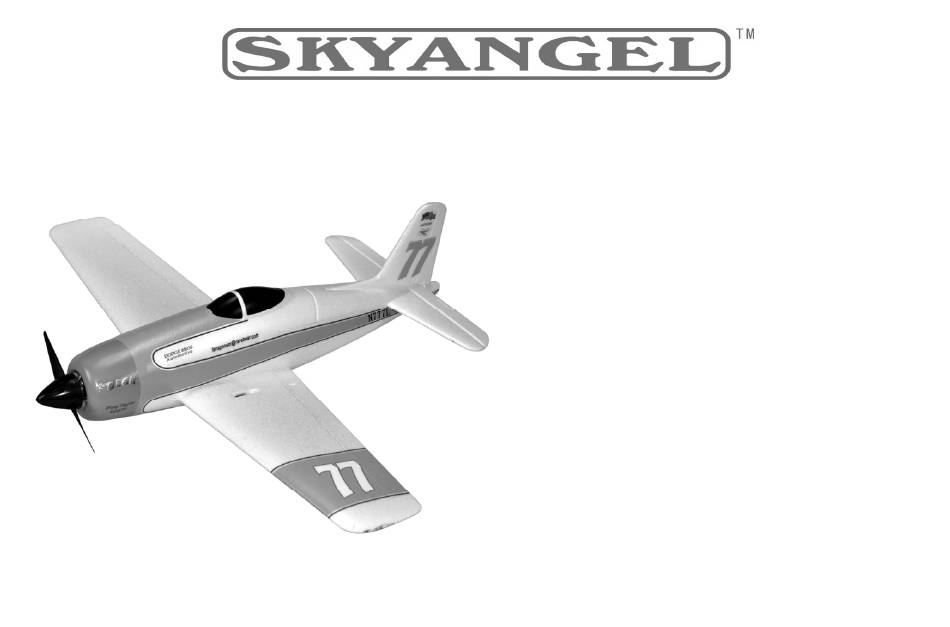

- Page 1 Assembly and Operating Manual Mini Warbirds Rare Bear Specification: *Length: 21-1/10"(535 mm) *Wing span: 24-2/5"(620 mm) *Flying weight: 12-1/5 (345g)
- Page 2 Integral wing panels with L.H / R.H. ailerons and factory-assembled model aircraft from the The receiving system is powered by the speed servos SKYANGEL Mini Warbirds range and thank you controller’s integral BEC system. Tailplane and elevator for placing your trust in us.
- Page 3 Assembly and Operating Manual Rare Bear Figs. 1 and 2 - Opening and closing the canopy: The canopy is retained by the cowl at the front, and by a tongue at the rear - To open the canopy, slide it forward, raise it at the rear and lift it off - Reverse the procedure to replace the canopy.
- Page 4 Assembly and Operating Manual Rare Bear Fig. 5 - Check that the fin is exactly at right-angles to the tailplane. Fig. 6 - Apply a strip of Velcro tape to the underside of the flight battery. Stick the mating piece inside of fuselage.
- Page 5 Assembly and Operating Manual Rare Bear Fig. 9 - Place the receiver in the fuselage and deploy the receiver aerials(s). Fig. 10 Balancing - Place the canopy on the fuselage. - Place the battery in the model of balancing; do not connect it.
- Page 6 Assembly and Operating Manual Rare Bear Figs. 13 and 14 - Check the channel assignment of the control surfaces, and swap over the connectors at the receiver if necessary. - Check the neutral position of the control surfaces. Make adjustments to the clevises if necessary. - Stand behind the model.
- Page 7 Assembly and Operating Manual Rare Bear - Switch the transmitter on, and connect the Test-flying, flying notes aeroplane a firm launch directly into any breeze, flight pack with the fuselage and wings level. Read the sections in the Safety - Check the direction of rotation of the motor: Notes entitled “Routine pre-flight - Allow the Rare Bear to fly straight ahead initially;...
- Page 8 Jiangyin Skyangel Electronic Technology Co., Limited. 5th Floor, A3 Building, Xinjianxing Technology Industrial Park, Fengxin Road, Guangming Town, Bao'an, Shenzhen City, 518107 China Phone: +86 755 33699201 Fax: +86 755 33699203 www.skyangelrc.com...
