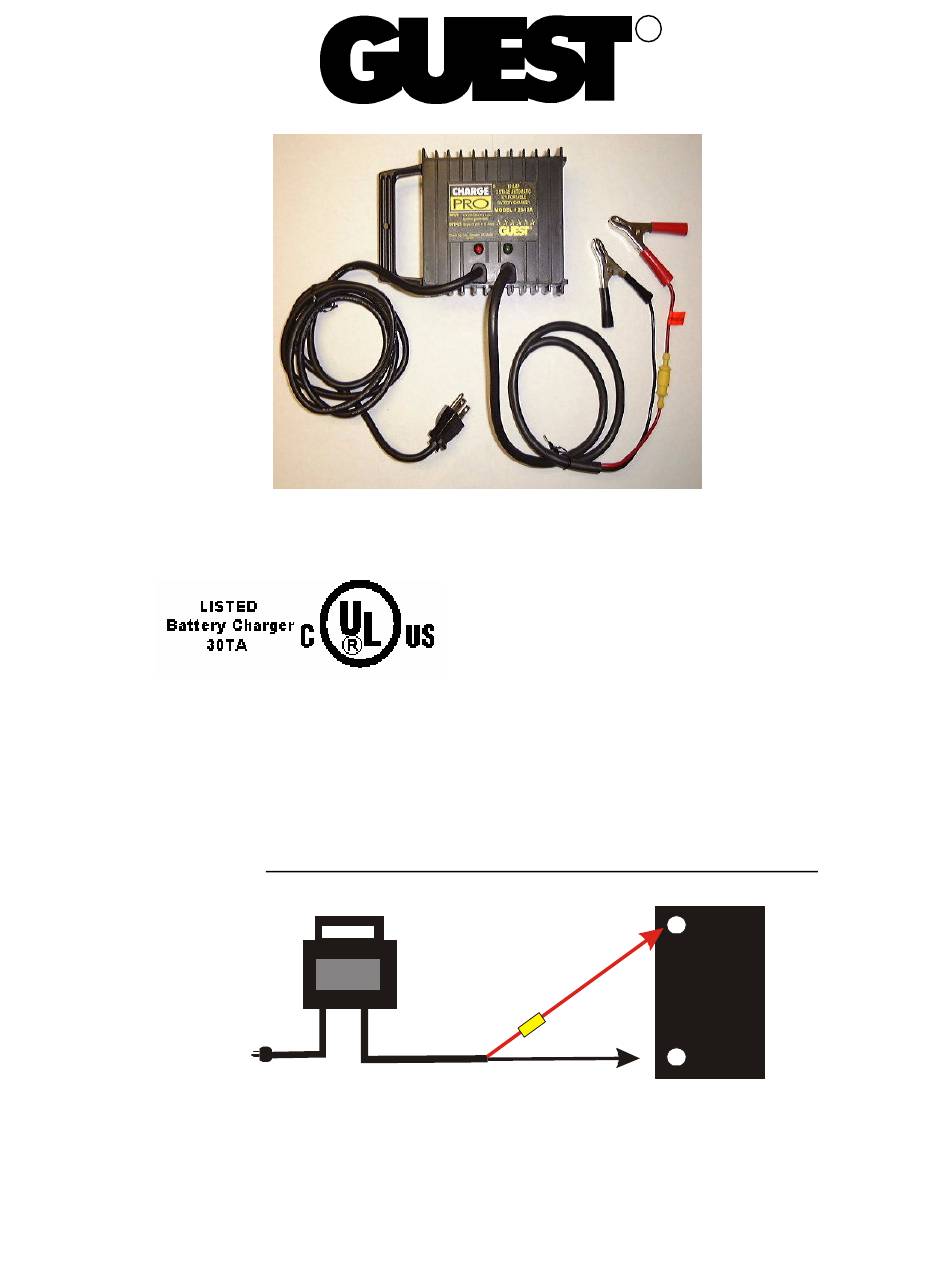

Connections at a glance:
The Guest ChargePro Model 2612A is designed to be used as an on board charger
for lead acid batteries (flooded cell or AGM types) and gel cell batteries. We
recommend that you set up the charger near the battery you wish to charge, and
make connections in the following order:
1. Charger POS (red wire with fuse) to battery " + ".
2. Charger NEG (black wire) to battery " – ".
3. Plug AC line cord into a GFCI protected wall socket.
4. Remove connections in the reverse order.
MODEL 2612A
10 AMP PORTABLE BATTERY CHARGER
OWNER'S MANUAL
2612A
SAVE THESE INSTRUCTIONS
R
12V BATTERY
+
-
Advertisement
Table of Contents
Related Manuals for Guest 2612A
Summary of Contents for Guest 2612A
- Page 1 OWNER’S MANUAL Connections at a glance: The Guest ChargePro Model 2612A is designed to be used as an on board charger for lead acid batteries (flooded cell or AGM types) and gel cell batteries. We recommend that you set up the charger near the battery you wish to charge, and...
-
Page 2: Important Safety Instructions
When the 2612A is attached to your battery and plugged into a standard 115 Volt / 60 Hz AC outlet, the red and green LED’s let you know the unit is recharging and maintaining your battery. - Page 3 Personal Safety Precautions Adhere to the following personal safety precautions when installing or working with the chargers: Someone should be within voice range or close enough to come to your aid when you work near a lead-acid battery. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes.
-
Page 4: Installing The Charger
Grounding Precautions DANGER Do not operate this charger with a two bladed adapter plug or extension cord. Doing so can result in serious personal injury. CAUTION: To reduce the risk of shock, connect only to a properly grounded outlet. 3. INSTALLING THE CHARGER Choosing Charging Location The charger should have at least eight inches of unobstructed area on all sides of the unit for effective cooling. -
Page 5: Operating The Charger
If the red LED stays on for more than 24 hours, refer to Problem 1 in the troubleshooting section in this manual. When both the green and the red LED’s are on, the 2612A is charging at an "ABSORPTION" rate of between 1.5 and 5 Amps (stage 2). This mode of charging gradually "tops off"... -
Page 6: Troubleshooting
LED’s turn on the charger breaker on the main panel when the AC 2. Component failure 2. Return charger to the Guest power is Service Dept. applied. 6. MAINTAINING THE CHARGER Periodically clean both battery terminals with baking soda and tighten all connections. -
Page 7: Specifications
7. SPECIFICATIONS Output: Charging: 12 Volts DC (min.) at 10 Amps Maintaining: 13.30 Volts DC at 0.1 Amps Input: Rated AC Voltage 100 – 130 VAC, 50/60 Hz Current Draw 1.6 Amps at full output Maximum recommended battery size: For recharging: Up to 250 Amp-Hours Maintenance only: Up to 500 Amp-Hours Physical Dimensions:... - Page 8 LIMITED WARRANTY For two (2) years from the date of original purchase, The Guest Co. will, at its discretion, repair or replace for the original consumer, free of charge, any parts found defective in material or workmanship. All transportation charges under this warranty must be borne by the consumer.
