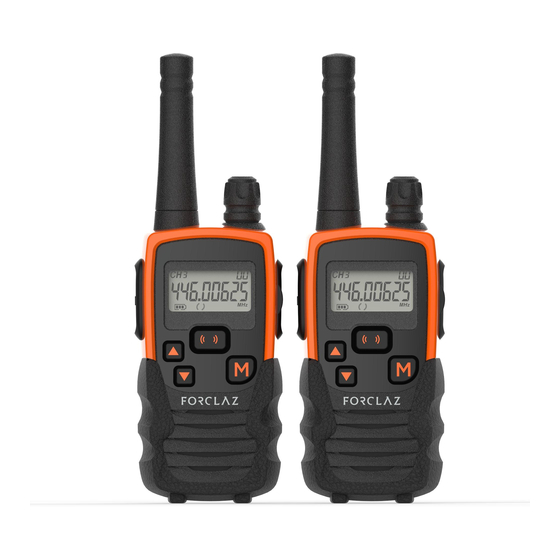

ONchannel 710
EN
CONTENTS
1
PRECAUTIONS FOR USE ................................................................................................................2
2
DESCRIPTION ...................................................................................................................................3
3
INSTALLATION ..................................................................................................................................4
3.1 Installing the Battery ...................................................................................................................... 4
3.2 Installing / removing the belt clip .................................................................................................. 4
3.3 Charging the batteries .................................................................................................................... 4
4
OPERATION ......................................................................................................................................6
4.1 Transmission range ........................................................................................................................ 6
4.2 Turning the unit On/Off................................................................................................................... 6
4.3 Adjusting the speaker volume ....................................................................................................... 6
4.4 Changing Channels ........................................................................................................................ 6
4.5 Transmitting (sending a speech) ................................................................................................... 7
4.6 Monitor ............................................................................................................................................. 7
4.7 Setting the VOX (Voice Activated Sensitivity) .............................................................................. 8
4.8 Activating the Auto channel scan ................................................................................................. 8
4.9 Vibrator and Call alert .................................................................................................................... 8
5
CALL-RING TONE .............................................................................................................................8
5.1 Selecting a Call-ring tone ............................................................................................................... 9
5.2 Activating the Vibrator mode ......................................................................................................... 9
5.3 Setting the Roger beep .................................................................................................................. 9
5.4 Setting the key tone On or Off ....................................................................................................... 9
5.5 Setting the Dual Watch Mode ...................................................................................................... 10
6
AUXILIARY FEATURES ..................................................................................................................10
6.1 Key lock ......................................................................................................................................... 10
6.2 LCD screen back light .................................................................................................................. 10
6.3 Microphone/Earphone/Charge jack ............................................................................................ 10
7
ACCESSORIES ...............................................................................................................................11
7.1 Using the earpiece kit ................................................................................................................... 11
7.2 Installing the elastic strap ............................................................................................................ 11
8
TECHNICAL CHARACTERISTICS .................................................................................................11
8.1 Specifications ............................................................................................................................... 11
8.2 Channel frequency table .............................................................................................................. 11
9
CE DECLARATION OF CONFORMITY ..........................................................................................12
10 WARRANTY .....................................................................................................................................12
11 RECYCLING ....................................................................................................................................12
12 CONTACT US ..................................................................................................................................12
Advertisement
Table of Contents
Related Manuals for GEONAUTE ONchannel 710
Summary of Contents for GEONAUTE ONchannel 710
-
Page 1: Table Of Contents
ONchannel 710 CONTENTS PRECAUTIONS FOR USE ........................2 DESCRIPTION ...........................3 INSTALLATION ..........................4 3.1 Installing the Battery ........................4 3.2 Installing / removing the belt clip ....................4 3.3 Charging the batteries ........................4 OPERATION ............................6 4.1 Transmission range ........................6 4.2 Turning the unit On/Off........................6 4.3 Adjusting the speaker volume ....................... -
Page 3: Precautions For Use
1 PRECAUTIONS FOR USE • Please read the owner's manual carefully before use. Please keep the owner's manual for the entire life of the product. • To reduce radio frequency exposure when using the device, keep it at least 5 cm away from your face. • Do not allow babies or young children to get near the devices. • Never use a walkie-talkie with a damaged antenna. If the antenna is in contact with the skin, mild burns may result. • When using the device in a vehicle, do not leave it in the area above an airbag or in the airbag deployment area because it can be propelled with great force and cause serious injury to the vehicle occupants if the airbag is deployed. • The devices are designed to be used in temperatures ranging from -10°C to +50°C inclusive. • If the devices are used in low temperatures, you must use batteries capable of standing up well to low temperatures. Preferably use lithium or NiMH rechargeable batteries as alkaline and zinc batteries perform very badly in low temperatures. • Do not use the devices or change the batteries in an explosive atmosphere. The antenna or batteries can produce micro-sparks or static electricity which can set off explosions causing serious injury and even death. • Never use the device outside during a storm. • Do not use the device in the rain. • If the device gets wet, switch it off and remove the battery. Dry the battery compartment and leave the cover open for a few hours. Do not use the device until it is completely dry. -
Page 4: Description
2 DESCRIPTION Antenna PWR/Vol switch LCD screen Ear / Mic / (Push To Talk) button Charge jack Call button Up/Down MENU button buttons (Microphone) Speaker LCD screen Channel number. Changes from 1 to 8 as selected by the user. CTCSS code. Changes from 1 to 38 as selected by the user. -
Page 5: Installation
3 INSTALLATION 3.1 Installing the Battery If the belt clip is installed, remove it. Observe the proper battery polarity orientation when installing batteries. Incorrect positioning can damage both the batteries and the unit. 3.2 Installing / removing the belt clip Installing the Belt clip Removing the Belt clip INSERTING REMOVING Slide the belt clip into... - Page 6 • The ONchannel 710 must be charged using the mains adaptor provided. • Using any other adaptor will result in non-compliance with EN60950-1 and will invalidate any approvals & warranty. Place the ONchannel 710 units in the charge cradle in an upright position. Î Î The charge LED indicators will light up. main socket It takes about 10 hours to fully recharge the batteries if they are Î Î completely run down. New batteries take up to 14 hours to fully charge. Important: Always t urn o ff t he P MR u nits w hen c harging. T his w ill s horten t he charging time.
-
Page 7: Operation
4 OPERATION 4.1 Transmission range 10 KM 1.5 KM 500 M Important safety warning: To reduce radio frequency exposure when you are using your ONchannel 710, hold the ■ ■ unit at least 5 cm (2 inches) away from your face. Never use your ONchannel 710 outdoors during a thunderstorm. ■ ■ Don’t use the ONchannel 710 in the rain. ■ ■ If your ONchannel 710 gets wet, turn it off and remove the battery. Dry the battery ■ ■ compartment and leave the cover off for a few hours. Don’t use the unit until it is completely dry. Keep the ONchannel 710 out of reach babies and young children. ■ ■ 4.2 Turning the unit On/Off To Turn On; Rotate the Power/Vol button clockwise until the LCD screen turns On and display the Î... -
Page 8: Transmitting (Sending A Speech)
To turn the sub-channel function off: simply set the sub-channel to 0 (zero). You can communicate with any ONchannel 710 user set to the same channel who also turns off the sub-channel operation (or whose have unit does not have the feature). Press the Menu button twice, the current CTCSS sub-channel number flashing on the Î Î LCD screen. Press the Up or Down button to select one of the 38 CTCSS sub-channels. Î Î Press the PTT button to confirm the setting. Î Î 4.4.2 Setting the DCS (Advanced Digital Code). Each channel also has 83 digital codes to let you set up group of users for more secured private communication. Press the Menu button 3 times. DCS code is blinking on the LCD screen. Î Î Press the Up or Down button to select the desired DCS code. Î Î Press the PTT button to confirm the DCS channel setting. Î Î Transmitting and Receiving The ONchannel 710 transmission is «one way-at-a-time.» While you are speaking, you can not ■ ■ receive a transmission. The ONchannel 710 is an open-license band. Always identify yourself when transmitting on the ■ ■ same channel. -
Page 9: Setting The Vox (Voice Activated Sensitivity)
4.7 Setting the VOX (Voice Activated Sensitivity) In «VOX» mode, the ONchannel 710 will transmit a signal only when it is activated by your voice or other sounds around you. The unit will transmit further for 2 seconds even if you stop talking. The level of «VOX» sensitivity is shown by a number on the LCD screen. At the highest level, the units will pickup softer noise (including background noise), at the lowest level, it will pick up only quite loud noise. Press the Menu button 4 times, "VOX" icon will be displayed and "OFF" flashing on Î Î the LCD screen. Press the Up button to set the VOX sensitivity into maximum level (the maximum level Î Î is "3"). To deactivate the VOX function, press the Down button until "OFF" appears on the Î Î LCD screen. Press the PTT button to confirm your setting. "VOX" will steadily appear on the LCD Î Î screen as along as the VOX feature is activated. • VOX operation is not recommended if the ONchannel 710 will be used in a noisy or windy environment. 4.8 Activating the Auto channel scan Channel scan perform searches for active signals in an endless loop for all 8 channels, 38 CTCSS codes and all 83 DCS codes. Press the Menu button 5 times, "SC" icon will display on LCD screen. Î Î... -
Page 10: Selecting A Call-Ring Tone
You will hear a ring tone for about two seconds. «TX» icon appears on the LCD screen. Any other units within the transmitting range and tuned to the same channel and sub-channel (if applicable) will hear the Call-ring tone. 5.1 Selecting a Call-ring tone The ONchannel 710 is equipped with 15 different types of Call ring tones. Press the Menu button 8 times, the "C01" icon will display and flashing on the LCD Î Î screen. Press the Up or Down button to select the desired call ring tone. Î Î A respective call ring tone sound will be played when changing from one tone to another. Press the PTT button to confirm your setting. Î Î 5.2 Activating the Vibrator mode Press the Menu button 9 times, "1" flashing on the LCD screen. Î Î Press the Up or Down button to activate the vibrator function. Î Î Press the PTT button to confirm your • Vibrator and Call tone can be activated at the Î Î setting. same. 5.3 Setting the Roger beep The Roger beep is a tone which is automatically transmitted whenever the PTT button is released. -
Page 11: Setting The Dual Watch Mode
5.5 Setting the Dual Watch Mode Your ONchannel 710 is capable of monitoring two channels, the current and another (dual watch) channel. If the unit detects a signal on either channel, it will stop and receive the signal. Press the Menu button 12 times, "DCM" icon will be displayed while "OFF" flashing Î Î on the LCD screen. Press the Up or Down button to select the Dual Watch channel (1-8, except the Î Î current channel). Continue pressing the Menu button to change the CTCSS code. Î Î Press the Up or Down button to select the desired CTCSS code (1-38) Î Î Continue pressing the Menu button to change the DCS code. Î Î Press the Up or Down button to select the desired DCS code (1-83) Î Î Press the PTT button to confirm your setting. Î Î 6 AUXILIARY FEATURES 6.1 Key lock The key lock feature allows user to disable the Up, Down and Menu buttons so that the ONchannel 710 settings could not be changed accidentally. To activate the key lock feature, press and hold the Menu button until key lock « »... -
Page 12: Accessories
7 ACCESSORIES 7.1 Using the earpiece kit Press and hold • When the earphone kit is installed, the microphone and loudspeaker are deactivated. 7.2 Installing the elastic strap 8 TECHNICAL CHARACTERISTICS 8.1 Specifications Channels Available 8 channels. CTCSS sub-channel 38 for each channel. DCS sub-channel 83 for each channel. TX 5%, RX 5%, Standby 90% 11 hours. Output power (TX) 0.5 W. -
Page 13: Ce Declaration Of Conformity
9 CE DECLARATION OF CONFORMITY • DECATHLON hereby declares that the ONchannel 710 device complies with the essential requirements and other relevant provisions of Directive 1999/5/CE • DECATHLON hereby declares that the ONchannel 710 device complies with the essential requirements and other relevant provisions of Directive 2006/95/CE. Compliance with these required conditions is expressed by the marking: The CE declaration of conformity is available via the following link: https://www.geonaute.com/en/ ec-declaration-conformity 10 WARRANTY DECATHLON guarantees to the initial purchaser of this product that it is free from material or manufacturing defects. This product is guaranteed for two years from the date of purchase. Please ensure that you keep the invoice as proof of purchase. The guarantee does not cover: • Damage resulting from misuse, from a failure to respect the precautions for use, from accidents, from improper maintenance or from commercial use of the product. • Damage resulting from repairs carried out by persons not authorised by DECATHLON. • Batteries or casings which are cracked or broken or which show signs of impacts. • The elastic strap, which is subject to wear and tear. During the warranty period, the item will either be repaired free of charge by an authorised repair service or replaced free of charge (depending on the distributor). 11 RECYCLING The «crossed-out bin» symbol means that this product and the batteries it contains must not be thrown away with general household waste. They are subject to a specific type of sorting. Please take the batteries and your unusable electronic product to an authorised collection point for recycling. This treatment of your electronic waste will protect the environment and your health. Dispose of your batteries in a place where they will be recycled. 12 CONTACT US We would like to hear your views on the quality, features and use of our products at: www.support.geonaute.com We will reply as soon as possible.
