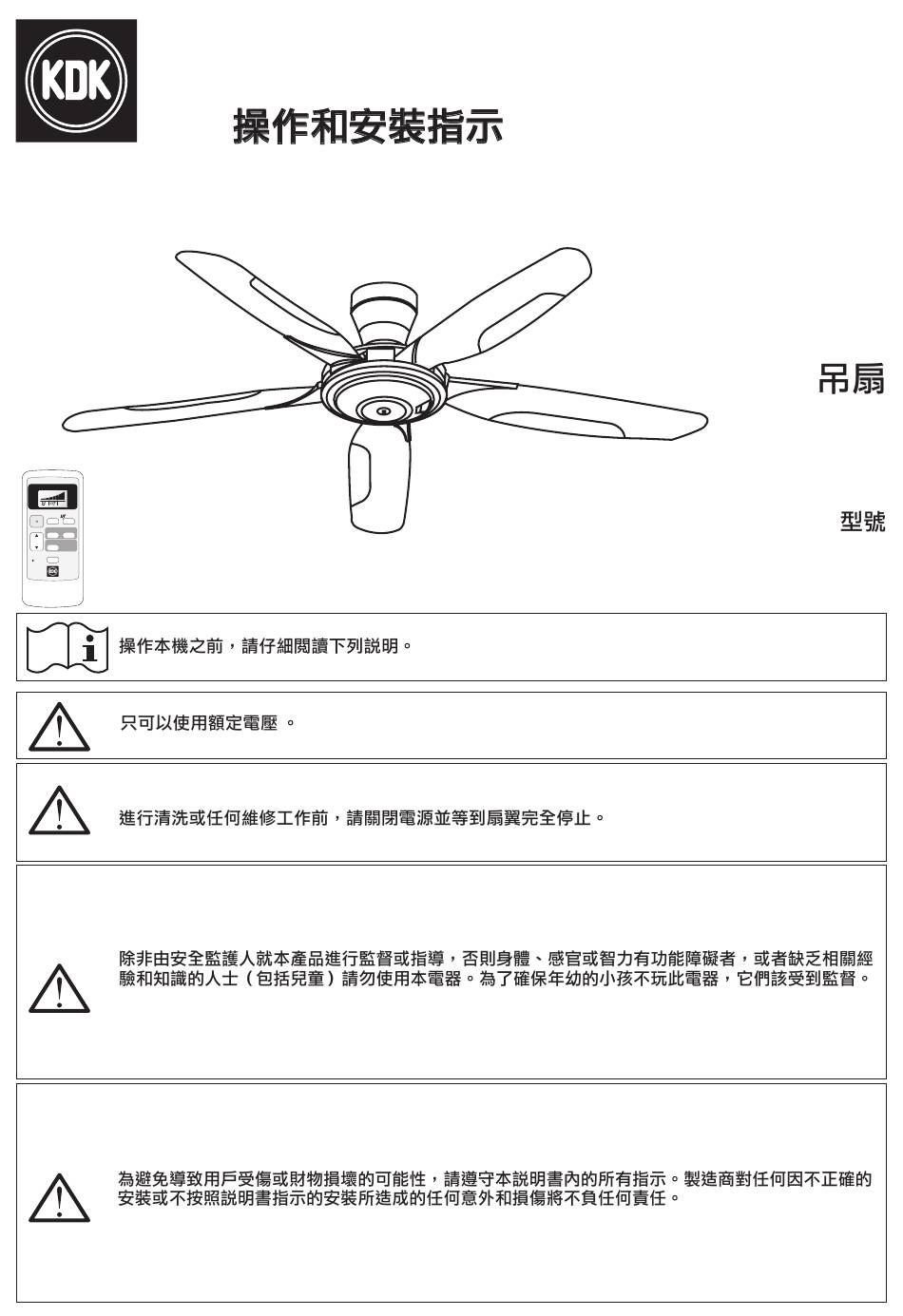

CEILING FAN
MIN
MAX
AUTO
SPEED
SLEEP
ON
TIMER
h
MODE
OFF/ON
AUTO
YURAGI
OFF/ON
OFF/ON
OFF TIMER
CANCEL
SET
SPEED
SLEEP MODE
OFF/ON
RESET
LAMP
Before operating this set, please read these instructions completely.
Hãy đọc kỹ những hướng dẫn sau đây trước khi sử dụng thiết bị này.
Use only with rated voltage.
Chỉ sử dụng thiết bị với điện áp định mức.
Switch off power supply and wait until the Blade is fully static, before cleaning or doing any
maintenance jobs.
Tắt nguồn điện và chờ cho cánh quạt ngừng quay hoàn toàn trước khi lau chùi hoặc tiến hành bảo dưỡng quạt.
This appliance is not intended for use by persons (including children) with reduced physical, sen-
sory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Những người có sức khỏe thể lực hoặc tinh thần kém hoặc các giác quan bị giảm sút hoặc thiếu kinh nghiệm
cũng như kiến thức không nên sử dụng thiết bị này trừ khi có sự giám sát hoặc hướng dẫn của người chịu
trách nhiệm về sự an toàn đối với những đối tượng nêu trên. (Các đối tượng kể trên bao gồm cả trẻ em). Cần
giám sát trẻ em để đảm bảo rằng chúng không đùa nghịch với thiết bị này.
To avoid the possibility of causing injury to users or damage to properties, please follow all the
explanation written in this manual. The manufacturer will not be responsible for any accidents and
injuries caused by defective, defi cient installation or installation which does not follow to instruction
manual.
Để tránh trường hợp bị chấn thương với người dùng hay có những hư hỏng với thiết bị, hãy tuân theo tất cả
những hướng dẫn có trong quyển hướng dẫn sử dụng này. Nhà sản xuất sẽ không chịu trách nhiệm với bất
cứ tai nạn hay chấn thương nào xảy ra do lỗi lắp đặt không đúng hay không tuân theo hướng dẫn trong quyển
hướng dẫn sử dụng này.
Operating And Installation
Instructions
Hướng dẫn sử dụng và lắp đặt

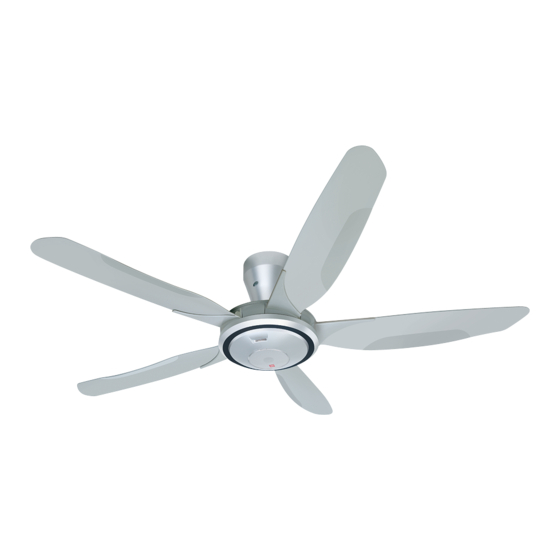

Ceiling Fan
Quạt trần
Model Number
Số model
V60WK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the v60wk and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KDK v60wk

  • Page 1 SLEEP MODE OFF/ON RESET LAMP V60WK Before operating this set, please read these instructions completely. Hãy đọc kỹ những hướng dẫn sau đây trước khi sử dụng thiết bị này. Use only with rated voltage. Chỉ sử dụng thiết bị với điện áp định mức.
  • Page 2: Safety And Precaution

    / AN TOÀN VÀ CHÚ Ý SAFETY AND PRECAUTION / To avoid the possibility of causing injury to users or damage to properties, please follow all the explanations written below. Để tránh khả năng người sử dụng bị chấn thương hay thiết bị bị hư hỏng, hãy tuân theo những hướng dẫn sau đây. WARNING This sign warns of death or serious injury.
  • Page 3 LƯU Ý CAUTION / Do not install at places where there is high Do not install at a wet and high humidity area Avoid installing at oily places. vibration and impact. such as shower room. Tránh lắp đặt tại những nơi có nhiều dầu mỡ. Không lắp đặt tại những nơi ẩm ướt và...
  • Page 4: Supplied Parts

    / CÁC BỘ PHẬN ĐƯỢC CUNG CẤP SUPPLIED PARTS / Các bộ phận Chiếc Parts / Pcs / Bộ động cơ 1. Motor Assembly / Vỏ động cơ 2. Canopy / 3. Blade Assembly Set / Bộ Cánh quạt Nắp trang trí 4.
  • Page 5 Arrange and tie the Safety Wire as shown. In case “J” Hook Đặt Dây An Toàn và thắt dây như hình vẽ. is being used. “J” Trong trường hợp sử dụng Móc treo hình chữ “J”. Firmly screw the Safety Wire onto the Hanger Plate. Vặn chặt đai ốc Dây An Toàn vào Tấm Treo.
  • Page 6: Connecting The Power Supply

    / NỐI NGUỒN ĐIỆN CONNECTING THE POWER SUPPLY / i) Only direct connection to wall switch is allowed. Please refer to fi gure below. Chỉ được phép nối trực tiếp với công tắc tường. Xem hình minh họa phía dưới. Double pole single throw switch (Breaker Switch) Công tắc hai cực (Công tắc ngắt) Nguồn điện...
  • Page 7 / CÁCH LẮP ĐẶT VỎ ĐỘNG CƠ HOW TO INSTALL CANOPY / Separate the Canopy by loosen the 2 Screws provided. Tách hai mảnh vỏ động cơ bằng cách nới lỏng hai vít được cung cấp. Vỏ động cơ Canopy / Vít Screw / Tháo các vít...
  • Page 8 / CÁCH LẮP CÁNH QUẠT HOW TO INSTALL BLADE / Hình Figure A / Hook the Blades as shown in Figure A. Take the Screw from the Part Set and tighten it fi rmly for fi xing Blades (5 Blades). Screw: (M5 ×...
  • Page 9: Remote Control Unit

    / CÁCH LẮP NẮP TRANG TRÍ HOW TO INSTALL DECORATION CAP / Figure B / / Hình B Turn Clockwise Motor Unit and Decoration Cap align at ( Decoration Cap is opened. Xoay theo chiều Motor Unit and Decoration Cap align at ( kim đồng hồ...
  • Page 10 / CÁCH LẮP GIÁ REMOTE CONTROL COVERAGE / ĐỠ ĐIỀU KHIỂN TỪ XA Fix the Remote Control Holder to wall as shown in Figure D. * The Wall Plugs are not needed for wooden walls. Lắp giá đỡ điều khiển từ xa lên týờng nhý minh họa ở Hình D. * Đối với týờng gỗ...
  • Page 11: Cách Sử Dụng

    / CÁCH SỬ DỤNG HOW TO USE REMOTE CONTROL UNIT / ĐIỀU KHIỂN TỪ XA / 1/f Nút Yuragi 1/f Yuragi Button / / Nút OFF/ OFF/ON Button / Press to activate natural breeze mode, Transmitter ON (Tắt/Bật ) 1/f will be shown in LCD screen. Thiết bị...
  • Page 12: Lcd Display

    / MÀN HÌNH LCD LCD DISPLAY / LCD full display LCD display is OFF Màn hình LCD hiển thị đầy đủ Màn hình LCD tắt Figure above shows that LCD Display is in off condition when OFF/ON button on Remote Control Unit is pressed. Hình vẽ...
  • Page 13 / CHẾ ĐỘ HẸN GIỜ OFF TIMER / For off timer function, the timer will gradually count down from hour to hour until off. During this timer count down, speed will remain the same till the ceiling fan is off. Với chức năng hẹn giờ, đồng hồ...
  • Page 14 1/f YURAGI / 1/f Yuragi là gì? What is 1/f YURAGI? / It is studied that people eventually get tired of some constant stimulations. ■ But feel uncomfortable if stimulations change too suddenly. ■ Yuragi is a right proportion between the above 2 extremes. ■...
  • Page 15 / Kiểu thay đổi tốc độ của 1/f Yuragi 1/f Yuragi speed change pattern / / THỜI GIAN TIME / This pattern is an example for 1/f Yuragi setting at speed 4. Kiểu thay đổi này là ví dụ cho kiểu thay đổi gió của 1/f Yuragi với tốc độ gió là 4. Note: 1/f Yuragi function does exist for speed 1 but less noticeable compared to higher speed (speed 4 and above).
  • Page 16 / CHẾ ĐỘ TỰ ĐỘNG AUTO MODE / Sensor position What is Auto Mode? Vị trí bộ cảm biến Auto Mode function is to control suitable air velocity to human. ■ It will function based on changing of room temperature. ■...
  • Page 17 Speed will change for Auto Mode function according to the below table: Tốc độ sẽ thay đổi đối với chế độ tự động theo bảng sau: / Phòng Nhiệt độ Room Temperature / / Thay đổi tốc độ Speed Change / / Khoảng nhiệt độ...
  • Page 18: Specifications

    / HƯỚNG DẪN ĐỂ BẢO GUIDE TO BETTER MAINTENANCE / DƯỠNG QUẠT TỐT HƠN 1. Check the fan condition annually. If a problem occurs, stop using the fan. Then refer to service, sales or maintenance shop. Check points : Loosened Screws, Safety Wire condition, Motor Shaft damage, etc. Kiểm tra điều kiện của quạt hàng năm.
  • Page 19: Wiring Diagram

    / SƠ ĐỒ NỐI DÂY WIRING DIAGRAM / Motor Động cơ Thermal Fuse Đỏ Cầu chì nhiệt White Black Trắng Đen MAIN PCB Xanh) N (Blue / PCB CHÍNH (bảng mạch in chính) Nâu) L (Brown / E (Green / Yellow) (Xanh lá...
