Rear Panel - Alto TX10 User Manual

Features

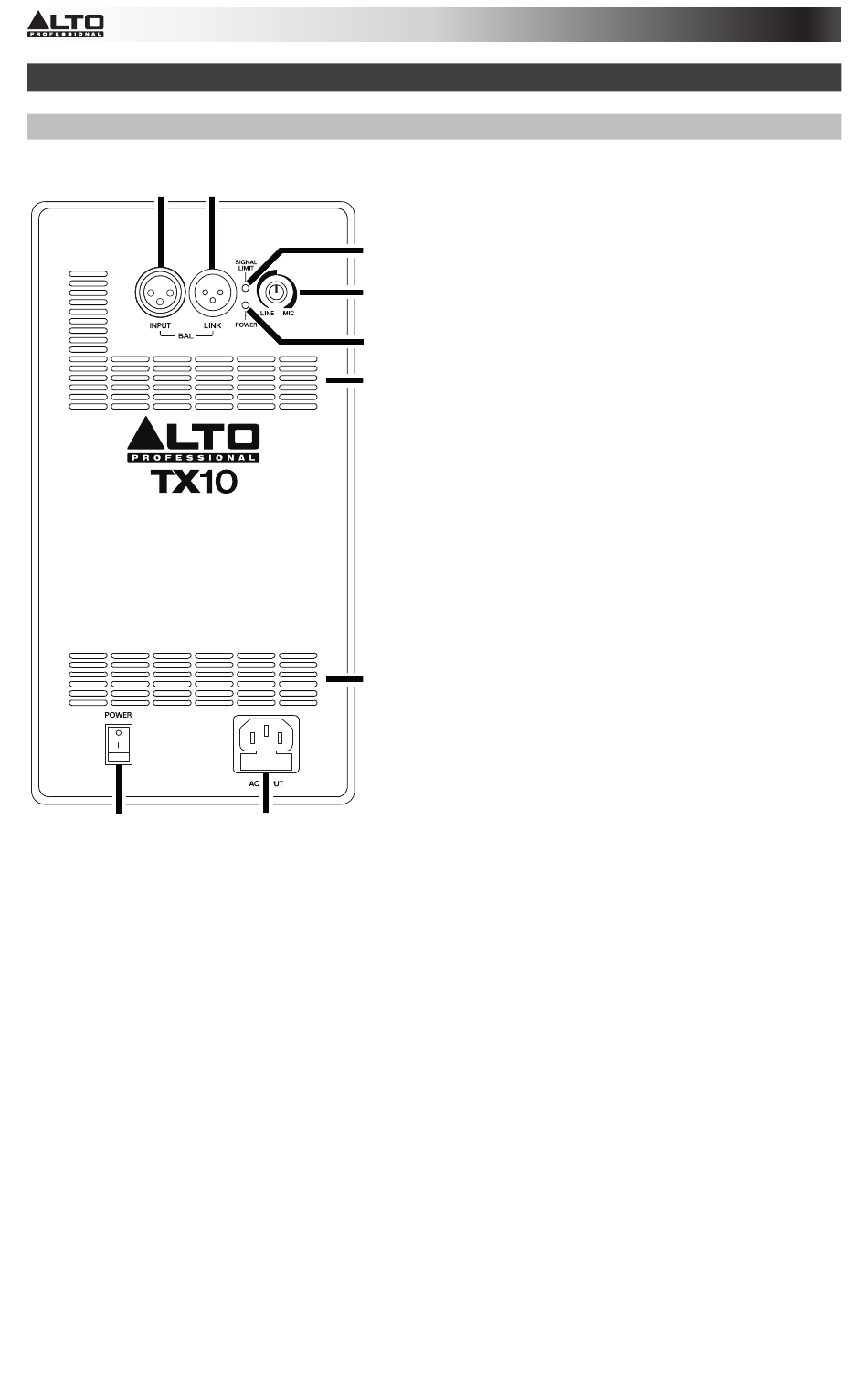

Rear Panel

6 7
2
1.
8
2.
5
3
4
3.
4.
5.
6.
4
7.
8.
1
AC Input: Use the included power cable to
connect this input to a power outlet. Make
sure the Power Switch is set to off when
connecting or disconnecting the cable.
Power Switch: Use this switch to power the
loudspeaker on or off. Make sure the
Volume knob is set to its minimum
(counterclockwise) position before turning it
on.
Power LED: This LED lights up when the
loudspeaker is on.
Cooling Vent: Keep the area in front of this
vent clear from obstructions. The fan behind
the vent cools the amplifier, preventing
overheating.
Volume: Turn this knob to adjust the
loudspeaker's volume.
Input: Use a standard XLR cable (not
included) to connect your audio source to
this input. Make sure to set the Volume
knob to the correct position.
Link Output: Use a standard XLR cable (not
included) to connect this output to the input
of another loudspeaker (i.e., another TX
loudspeaker).
Signal Limit LED: This LED lights up when
the audio signal
loudspeaker is "clipping" or distorting. If this
LED illuminates
reduce the volume of your audio source.
6
being sent to
frequently or steadily,
the
