厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.

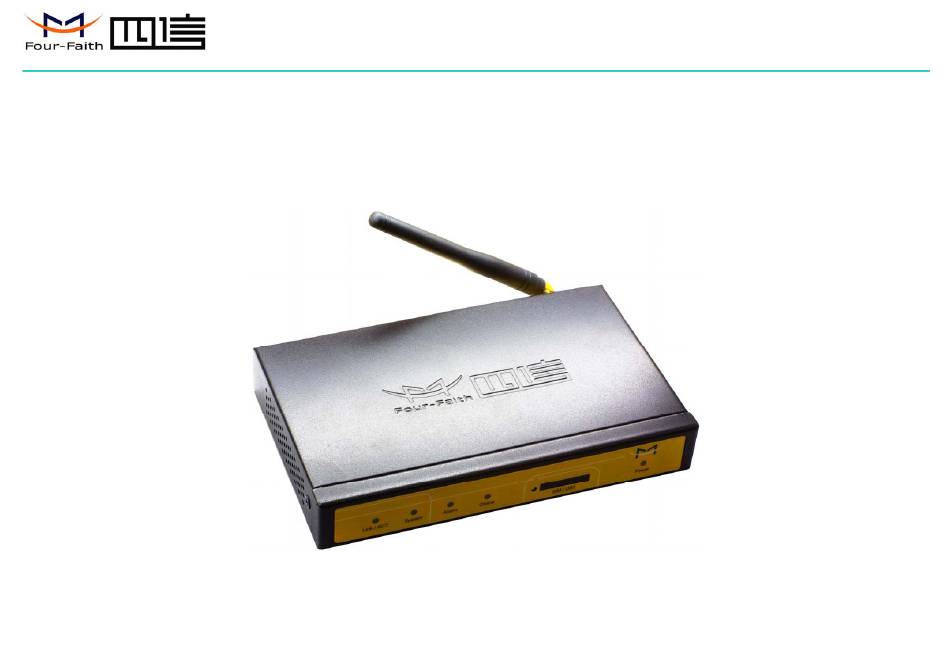

F3423 WCDMA/HSDPA/HSUPA ROUTER
USER MANUAL
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China
1
Zip Code：361008
Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735
http://
www.four-faith.com
www.fourfaith.com
Advertisement
Table of Contents
Summary of Contents for Xiamen F3423
- Page 1 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. F3423 WCDMA/HSDPA/HSUPA ROUTER USER MANUAL Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China Zip Code：361008 Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735 http:// www.four-faith.com www.fourfaith.com...
-
Page 2: Table Of Contents
厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Chapter 1 Brief Introduction of Product ................. 3 1.1 General ......................3 1.2 Product Features ....................3 1.3 System Component ................... 3 ... -
Page 3: Chapter 1 Brief Introduction Of Product
厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Convenient system configuration and maintenance interface （ WEB or RS-232） Chapter 1 Brief Introduction of Product Support multi OS, such as WINDOWS, LINUX, SCO UNIX etc. -
Page 4: Technical Specification
厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 1.5 Technical Specification Wireless specification: UMTS/WCDMA/HSDPA/HSUPA 850/900/1900/2100MHz Quad-band EGSM 850/900/1800/1900MHz GPRS/EDGE CLASS 12 HSUPA: 5.76Mbps(UL) / HSDPA: 7.2Mbps(DL)/UMTS: 384kbps(DL/UL) EDGE: 236.8kbps(DL/UL) GPRS: 85.6Mbps(DL), 42.8Kbps(UL) -
Page 5: Chapter 2 Installation Introduction
厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Chapter 2 Installation Introduction 2.3 Installation and Cable Connection : (unit: mm) Dimension 2.1 General The router must be installed correctly to make it work properly. - Page 6 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Installation of antenna: wrongly, or the router can’t work properly. Screw the SMA male pin of the antenna to the female SMA outlet of the router The signal connection of the console cable is as follows: tightly.
-
Page 7: Power
厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 2.4 Power 2.6 Reset Button Introduction The router has a “Reset” button to restore it to its original factory default settings. The power range of the router is DC 5 35V. -
Page 8: Chapter 3 Configuration And Management
厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Chapter 3 Configuration and Management 3.2 Access the Configuration Web Page Start a web browser and type 192.168.1.2 in the Address (URL) field (The This chapter describes how to configure and manage the router. - Page 9 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. UserName: username used to login your ISP(Internet Service Provider) Password: password used to login your ISP Call Center: The dial number of your ISP...
- Page 10 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. should also configure "Detection Interval", "Primary Detection Server IP" and "Backup Detection Server IP" items. Route: Detect connection with route method, when choose this method, you should also configure "Detection Interval", "Primary Detection Server IP"...
- Page 11 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Note: If you change the LAN IP Address, you have to reboot the router to make it valid. IP Subnet Mask: the LAN port subnet mask.
- Page 12 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. traffic is a response to one of your local computers or a service that you have configured in the NAT page. Instead of discarding traffic for services you have not defined, you can have it forwarded to one computer on your network.
- Page 13 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Discard The Following--Discard all packets matched the custom filter rules, Accept all other packets Source IP: packet's source IP address Only Accept The Following--Accept all packets matched the custom filter rules,...
- Page 14 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. MAC Address: The MAC Address applied to this MAC Restrict item. 3.3.7 Static Routes Static Routes provide additional routing information to your router. Under normal...
- Page 15 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Account Name: The username to login the router. Firmware Version: Software version information Module Type: The wireless module used to get the Internet access Route Name: This static route’s name, It is for identification purpose only...
- Page 16 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 3.3.9 Backup Settings This function can save the router’s current configuration to a file. You can restore the configuration with the file later.
- Page 17 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 3.3.10 Load Default It is sometimes desirable to restore the router to the factory default settings. This can be done by using the “Load Default” function, which will restore all factory settings.
- Page 18 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Enable Log: Enable or disable this function Console: Log Way: there are three log ways Web: The log message is output to the console port.
- Page 19 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Databit: Parity : None Stopbit: Flow control: None When you configure the serial port settings , press “call” button ,The router log message will be displayed.
- Page 20 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Password: Password to log into the PPTP Server. 3.3.15 L2TP Client To reboot the router , press the “Reboot” button. 3.3.14 PPTP Client...
- Page 21 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. If your network has a permanently assigned IP address, you can register a Host Name: The 88ip provider’s server hostname domain name and have that name linked with your IP address by public Domain Backup Host Name: The 88ip provider’s backup server hostname...
- Page 22 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. The above DDNS status page shows the domain name tomjerry555.3322.org now point to IP Address 10.95.207.236 3.3.17 Serial Settings There is a console port on Four-Faith router. Normally, this port is used to debug the router.
