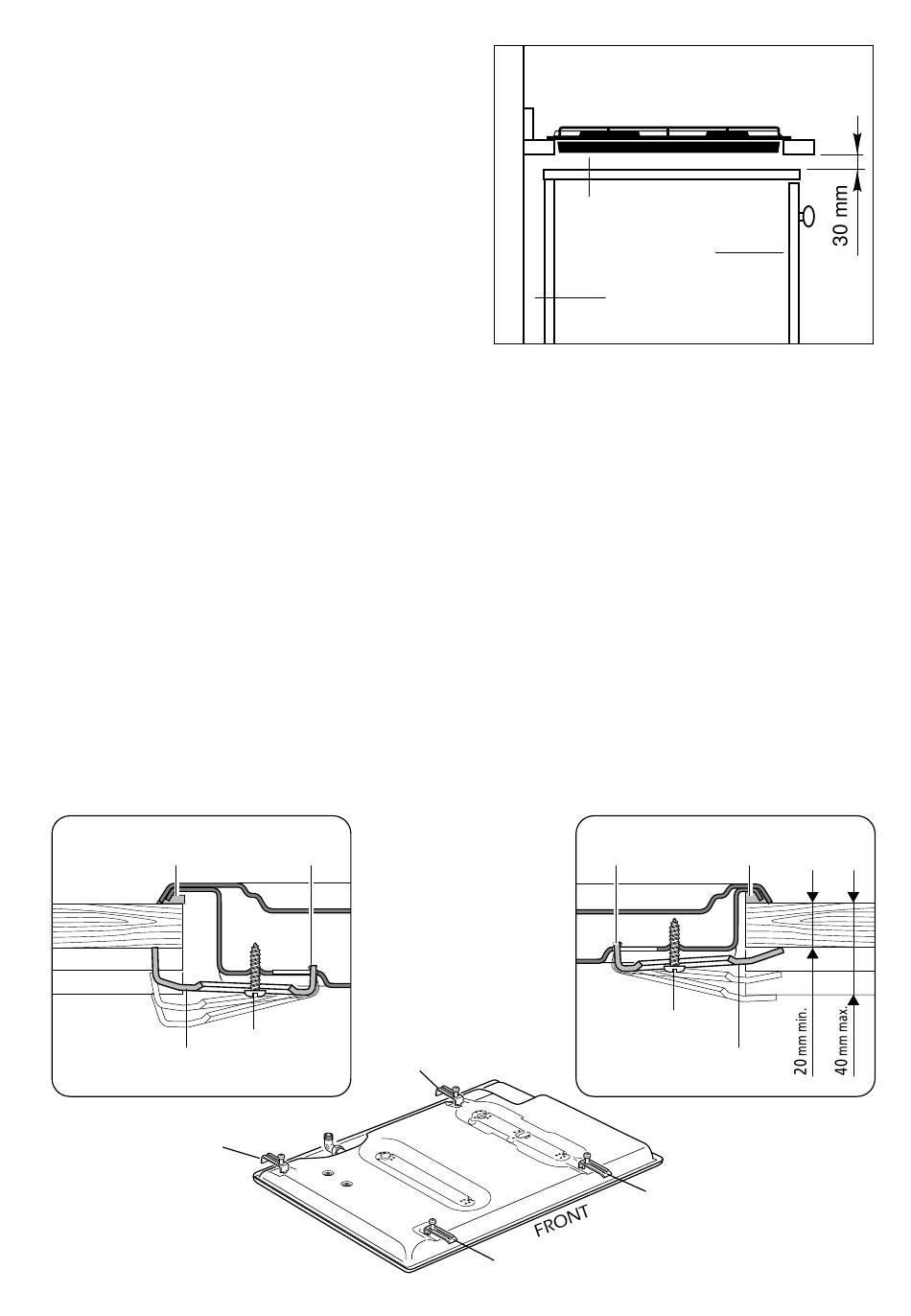

INSTALLATION IN KITCHEN CABINET
WITH DOOR
(fig. 4.3)
It is recommended that a 30 mm clear-
ance be left between the cooker top and
the fixture surface (fig. 4.3).
FASTENING THE INSTALLATION
BRACKETS
(fig. 4.4)
Each cooker top is provided with an
installation kit including brackets and
screws for fastening the top to fixture
panels from 2 to 4 cm thick.
– Turn the cooker top upside down and
fasten the brackets "F and R" to the
appropriate socket holes, without tight-
ening the screws "B" for the moment.
– Make sure that the brackets are fas-
tened as shown in figure 4.4.
D
R
R
C
B
R
@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Clearance
FASTENING THE COOKER TOP
– Spread the sealing material "C" out
along the fixture hole, making sure
that the junctions overlap at the cor-
ners.
– Insert the cooker top into the hole and
position it correctly.
– Adjust the position of the brackets "F
and R" and tighten screws "B" to block
the cooker top firmly in position.
– With a sharp cutter or trimmer knife
trim the excess sealing material
around the edge of the cooker top.
Fig. 4.4
F
Door
Space for
connections
C D
B
F
F
Fig. 4.3
(fig. 4.4)
