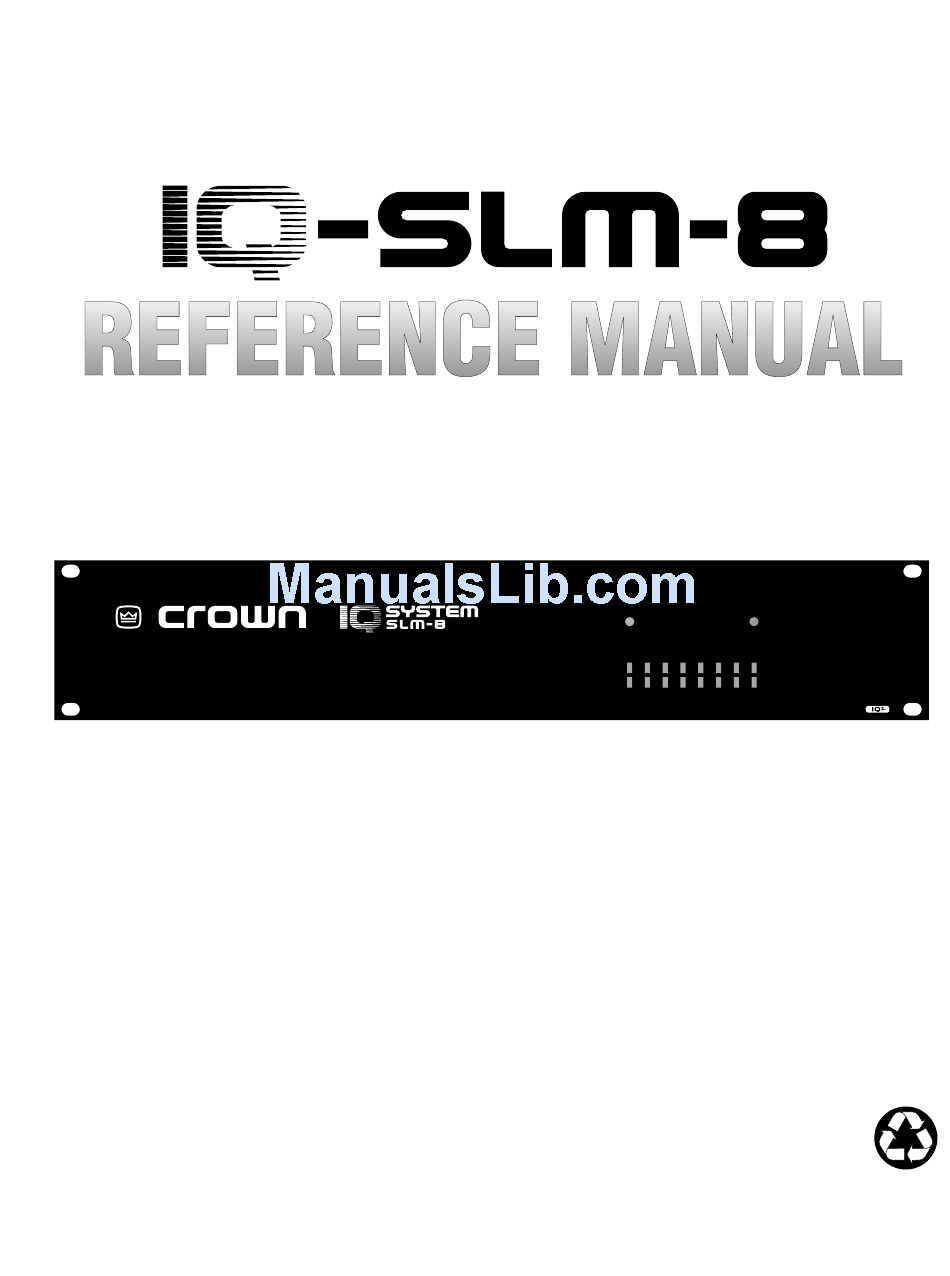

Crown IQ-SLM 8 Reference Manual

System and load monitoring iq system component
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DATA
POWER
PASS / FAIL INDICATORS
IMPEDANCE RESPONSE
FREQUENCY RESPONSE
1
2
3
4
5
6
7
8
PASS: GREEN / FAIL: RED
System and Load Monitoring IQ System Component
© 1999 by Crown International, Inc., P.O. Box 1000, Elkhart, Indiana 46515-1000 U.S.A. Telephone:
219-294-8000. The IQ–SLM-8 is produced by Crown International, Inc. Trademark Notice: IQ2
™
is a
trademark and Crown
®
, IQ System
®
and Com-Tech
®
are registered trademarks of Crown International, Inc.
Other trademarks are the property of their respective owners.
Printed on
recycled paper.
125120-3
12/99
