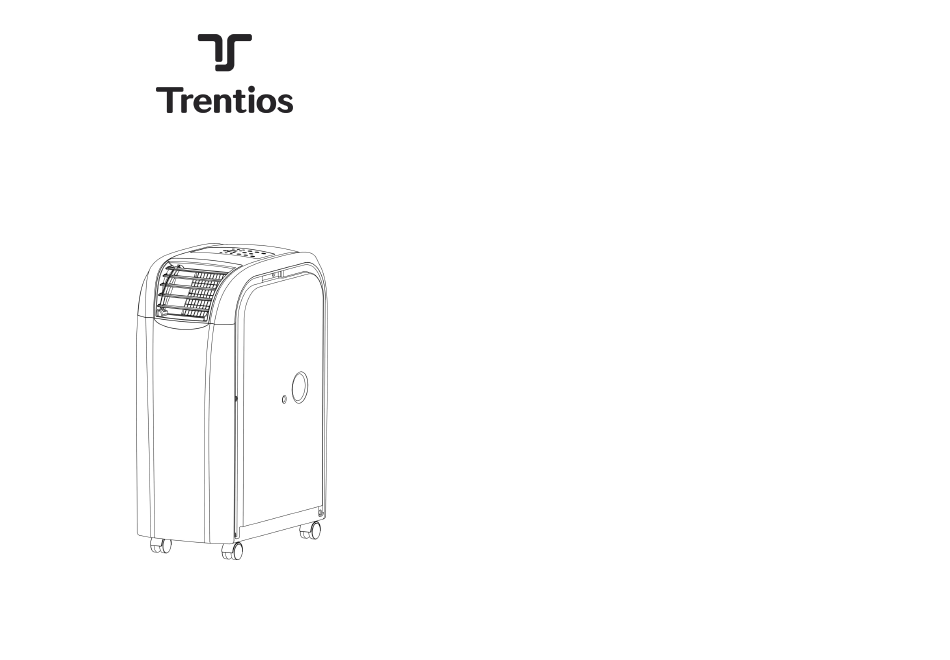

PC26-AMEII / PC40-AME
USER MANUAL
PORTABLE AIR-CONDITIONER
VERY IMPORTANT
Please read this instruction guide before install and using
your portable air conditioner unit.
This instruction manual is the universal-purpose version
for the units that you purchase, it might be slightly
different from the ones described in the manual, but it does
not affect your proper operations and usage.
CAUTION
1. " PLEASE MAKE SURE THE PRODUCT VENTILATES ALL THE TIME "!
Please make sure the inlet and outlet ventilation is not blocked at all times.
2. Operate this unit on a horizontal surface to avoid water leakage.
3. Do not operate this unit in an explosive or corrosive atmosphere.
4. Operate this unit in an ambient of 35 degree centigrade or less.
5. The heating function of the unit should
temperature between 7℃ and 23℃
6. Clean air filter periodically to enjoy the most efficient cooling.
7. When the unit is shut off, please wait at least 3.5 minutes before restarting
this is to prevent the compressor from being damaged.
8. This unit needs at least 7 Amps of electricity to have its compressor
operational. To avoid the household electricity block out, please do not use
any extension cord for this unit.
9. This unit is for indoor cooling, heating and dehumidifying.
10. When turning on the unit, the fan will operate but the compressor will
start up after the cooling alarm flashes for three minutes
In heating function, the heating alarm will flash for 3.5 minutes before
●
the compressor and fan start up.
11. When the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
be operated in an indoor ambient
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for trentios PC26-AMEII
Summary of Contents for trentios PC26-AMEII
- Page 1 PC26-AMEII / PC40-AME CAUTION USER MANUAL 1. " PLEASE MAKE SURE THE PRODUCT VENTILATES ALL THE TIME "! Please make sure the inlet and outlet ventilation is not blocked at all times.
- Page 2 CONGRATULATIONS ON YOUR 12．In order to dispose the appliance safely, please remove the batteries from the SELECTION OF A QUALITY unit before scrapping it. PORTABLE AIR CONDITIONER 13. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and PORTABLE AIR CONDITIONER knowledge, unless they have been given supervision or instruction concerning...
- Page 3 UNPACKING INSTRUCTIONS NAME OF THE PARTS Place the unit in the correct upright position before unpacking. 1. Control panel Cut the two packing straps. 2. Remote control receiver Slide the carton in an upwards motion and it will release from the base. 3.
- Page 4 CONTROL PANEL & DESCRIPTION OF FUNCTION This key raises the preset temperature by 1℃ each time it is During heating function： pressed and the maximum limit is 25℃. 4. TEMPERATURE REGULATION KEY (DOWN) During cooling function：This key lowers the preset temperature by 1℃ each time it is pressed and the minimum limit is 17℃.
- Page 5 REMOTE CONTROL FUNCTION 3. Press the "POWER" key before time out, the setting time will be canceled and the unit will turn on. 4. You can set the function and fan speed while setting the timer. TIMER-OFF: The timer-off is used to turn off the unit automatically after the setting time is over.
- Page 6 CONDENSER/EVAPORATOR NOTICE Use a brush attachment with a vacuum cleaner. This unit can evaporate the condensation and distribute through the exhaust hose automatically. Casing 1. When the unit is in the cooling function, it does not need the drain pipe installed. Wipe with a damp cloth and polish with a soft cloth.
- Page 7 POWER SUPPLY EXHAUST HOSE INSTALL (1) Confirm the correct power. 1. Circumrotate the exhaust hose according to the direction as the arrowhead ① (2) Insert the plug into the outlet firmly In order to prevent any indicates and then the exhaust hose can be took out from the unit. dangerous leakage.
- Page 8 Check that the plug has been wired correctly. SPECIFICATION Model No. PC26-AMEII PC40-AME Power Source 220-240V~50Hz 220-240V~50Hz Rated Power (EN60335) Cooling...
