Summary of Contents for Contest PIN15QC

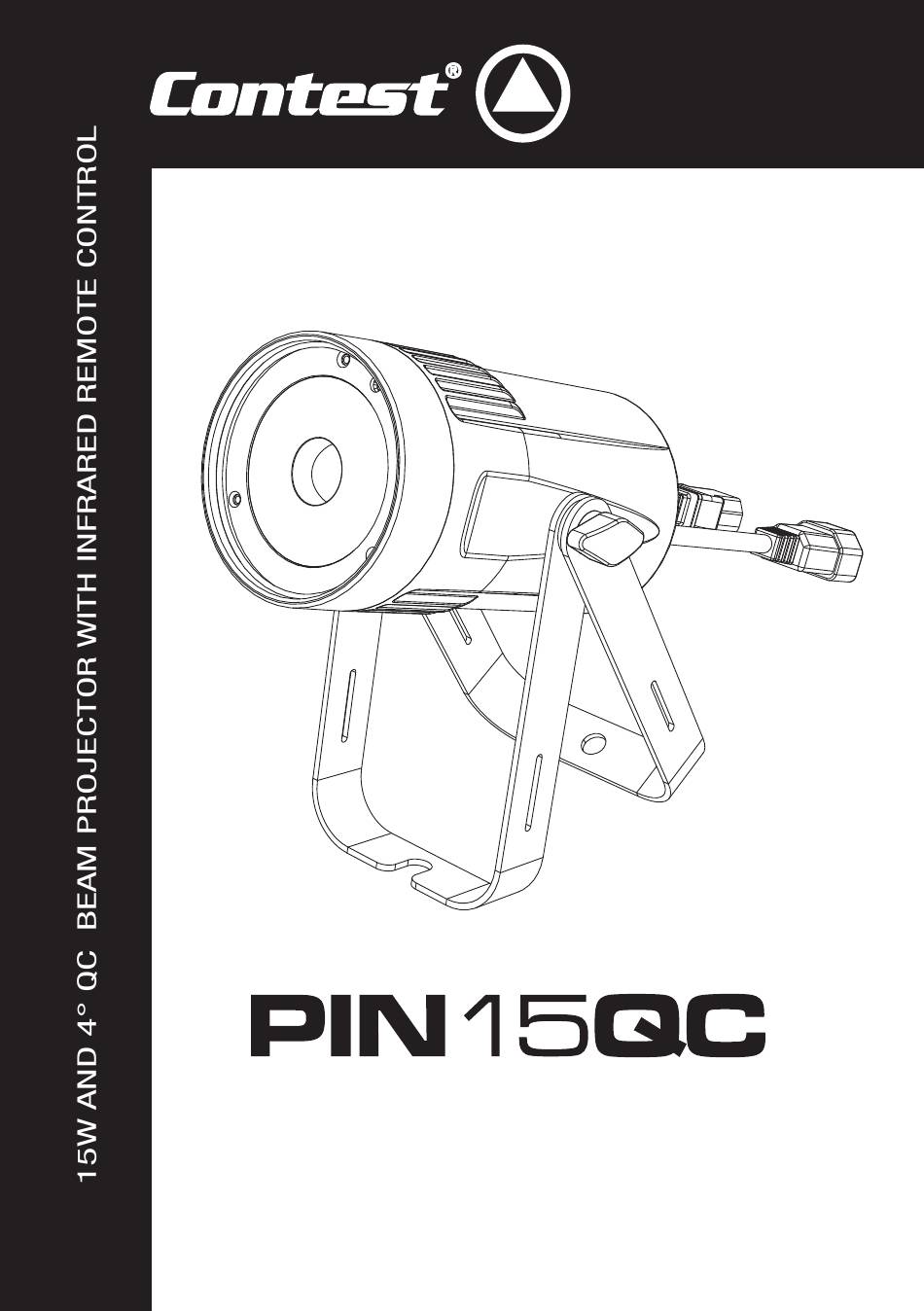

- Page 1 USER GUIDE 10595 - Version 1 / 07-2016...
- Page 2 PIN15QC - 15W and 4° QC beam projector with remote control English Page 2...
-
Page 3: Safety Information
PIN15QC - 15W and 4° QC beam projector with remote control English WARNING : This unit contains no user-serviceable parts. Do not open 1 - Safety information the housing or attempt any maintenance by yourself. In the unlikely even your unit may require service, please contact your nearest Important safety information dealer. -
Page 4: Specifications
PIN15QC - 15W and 4° QC beam projector with remote control English 2 - Introduction Thank you for choosing our PIN15QC projector. You are now in possession of a high-quality, powerful and intelligent projector, which will use all its features to highlight your parties, animations, concerts... 3 - Specifications Light source •... - Page 5 PIN15QC - 15W and 4° QC beam projector with remote control English 4 - Description 1 - Double bracket Allows you to suspend your projector or handle it on the ground 2 - DMX Input via 3-pin XLR socket 3-pin XLR sockets hardwired as follows:...
-
Page 6: Remote Control
The address of the first unit will be 1, the second unit will be 8 (1+7), the third unit will be 15 (7+8) and so on. NB : Once switched on, the PIN15QC automatically detects any incoming DMX signal, and the display indicates"A.001" (the unit DMX address). - Page 7 English 6 - Menu The PIN15QC features many menus allowing you to configure its every move and function. Press MODE / ESC to access the main menu. Use the navigation keys to browse through submenus. Then press ENTER to access a submenu.
-
Page 8: Infrared Remote Control
PIN15QC - 15W and 4° QC beam projector with remote control English 7 - Infrared remote control Buttons Actions Description BLACKOUT Turns the projector on/off Allows you to select, in that order, step sequencing of the SELECT PROG Allows you to select built-in programs... -
Page 9: Dmx Channels And Functions
PIN15QC - 15W and 4° QC beam projector with remote control English 8 - DMX Channels and functions Your PIN15QC features 4 preset DMX modes: The following chart indicates the DMX values of each channel. Modes / Channels DMX Values... - Page 10 PIN15QC - 15W and 4° QC beam projector with remote control English 065-069 Metal blue 070-074 Orange 075-079 Straw 080-084 Light lavender 085-089 Pink 090-094 Green 095-099 100-104 Blue 105-109 White 110-114 Rainbow Effect 1 115-119 Rainbow Effect 2 120-124...
- Page 11 PIN15QC - 15W and 4° QC beam projector with remote control English Preset colours and sequences 000-004 No function 005-009 White 2700°K 010-014 White 3200°K 015-019 White 4300°K 020-024 White 5600°K 025-029 White 6500°K 030-034 White 8000°K 035-039 Yellow 040-044...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ®...
